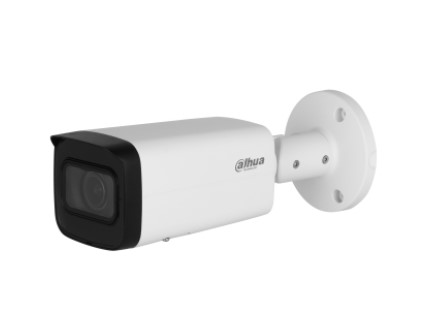

Telecamera bullet IP Starlight da interno/esterno IP67, sensore CMOS progressivo 1/2.9", risoluzione 4 MP a 25fps, H.265+, ICR, ottica motorizzata 2.7~13.5 mm F1.5, luminosità 0.006 lux F1.5 (0 con IR On), portata IR fino a 60 m, 1 porta di rete 10/100 Mbps, microfono integrato, 3D NR, WDR 120 dB, privacy mask 4 aree, IVS, micro SD card (256 GB), alimentazione 12 Vdc/PoE <10.1 W
| Functions | |
| Smart Codec | WDR |
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.006 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0006 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 4 (IR LED) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 H: 104°–29°; |
| Field of View | V: 54°–16°; D: 125°–34° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M |
| Resolution | (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–6144 kbps; |
| Video Bit Rate | H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Manual;Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; |
| Cyber Security | Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Port | |
| Audio Input | 1 channel (RCA port) (Only – ZAS supports) |
| Audio Output | 1 channel (RCA port) (Only – ZAS supports) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC (Only – ZAS supports) |
| Alarm Output | 1 channel out: 300mA 12V DC (Only – ZAS supports) |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) -ZS: Basic: 2.4 W (12 VDC); 3.1 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.7 W (12 VDC); 10.1 W (PoE) |
| Power Consumption | -ZAS: Basic: 2.4 W (12 VDC); 3.1 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.8 W (12 VDC); 10.2 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40°F to +140°F) |
| Protection | IP67, IK10 (optional) |
| Structure | |
| Casing Material | Metal 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") |
| Product Dimensions | (L × W × H) -ZS: 0.73 kg (1.6 lb) |
| Net Weight | -ZAS: 0.76 kg (1.7 lb) -ZS: 0.99 kg (2.2 lb) |
| Gross Weight | -ZAS: 1.02 kg (2.2 lb) |
| Ordering Information | |
| Type | Model Description 4MP IR Vari-focal Bullet WizSense DH-IPC-HFW2441T-ZAS Network Camera |
| 4MP Camera | 4MP IR Vari-focal Bullet WizSense DH-IPC-HFW2441T-ZS Network Camera PFA130-E Junction Box PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA130-E | PFA152-E PFM321D |
| Junction | Pole Mount 12 VDC 1A Power Adapter |
| Box | Bracket |
| PFM900-E | TF-P100 |
| Integrated | MicroSD |
| Mount Tester | Memory Card |
