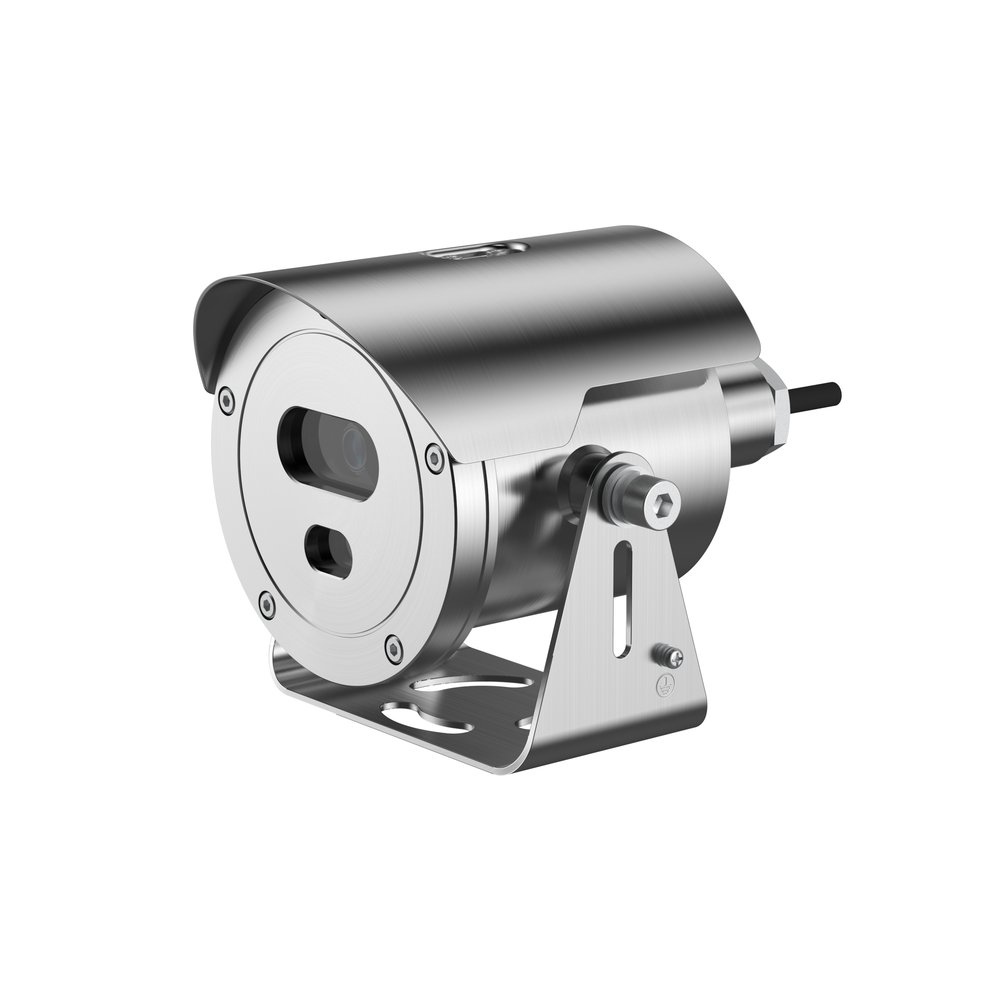

Telecamera bullet IP Starlight da interno/esterno IP68 Explosion-proof ATEX e IECEx, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, H.265+, ICR, ottica fissa 4 mm, luminosità 0.005 lux ƒ1.8, portata IR fino a 30 m, 1 porta LAN 10/100 Mbps, 2/3D NR, WDR, IVS, human detection, SMD, micro SD card (512 GB), alimentazione 12 Vdc <3.5 W
| Camera | |
| Image Sensor | 1/2.8" CMOS 4 MP |
| Pixel | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.8 |
| Min. Illumination | B/W: 0.0005 lux@F1.8 |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Manual; Smart IR; Off |
| Illuminator Number | 1 (IR) |
| Lens | |
| Focal Length | 6 mm; 4 mm |
| Max. Aperture | F1.8 |
| Field of View | H: 49°; V: 37°; D: 61°;H: 81°; V: 59°; D: 106° |
| Optical Zoom | 1 |
| Close Focus Distance | 0.2 m (0.66 ft); 0.6 m (1.97 ft); |
| Iris Control | Auto; semi-auto; manual |
| Iris Control | Fixed |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| SMD | Yes |
| Video | |
| Video Compression | Stream); Smart H.264+ |
| Streaming Capability | 2 streams 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × |
| Resolution | 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps) |
| Video Frame Rate | Sub stream: D1/CIF@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–8192 kbps |
| Video Bit Rate | H.265: 32 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) UDP;TCP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NT |
| Network Protocol | P;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP |
| Interoperability | CGI; ONVIF |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 |
| Storage | |
| Browser | Firefox 52 and earlier versions Safari |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iPhone;Windows Phone;iPad;iOS;Android |
| Port | |
| Alarm Linkage | Capture; recordings; send emails Motion/tampering detection; network disconnection |
| Alarm Event | detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | PoE (802.3af) Basic: 2 W |
| Power Consumption | Max.: 3.5 W (illuminator) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% IP68 (2 m/2 h), TVS 6000V lightning proof; surge |
| Protection | protection; voltage transient protection |
| Structure | |
| Casing Material | Stainless steel |
| Product Dimensions | 173.3 mm × 144 mm × 126.5 mm (6.82" × 5.67" × 4.98") |
| Net Weight | 2.3 kg (5.07 lb) |
| Gross Weight | 3 kg (6.61 lb) |
| Ordering Information | |
| Type | Part Number Description 4MP Starlight IR Explosion-proof DH-ECA2A1400-HN |
| 4MP Starlight | Camera (4mm) |
| IR EXPLOSION- | 4MP Starlight IR Explosion-proof |
| PROOF CAMERA | DH-ECA2A1400-HN Camera (6mm) DH-EXB109 Wall mount bracket CZ300 Junction Box (ATEX/IECEx) |
| Accessories | |
| (Optional) | ZANXG-1.5 Flexible Tube (ATEX/IECEx) PFA5500 Column Mount |
