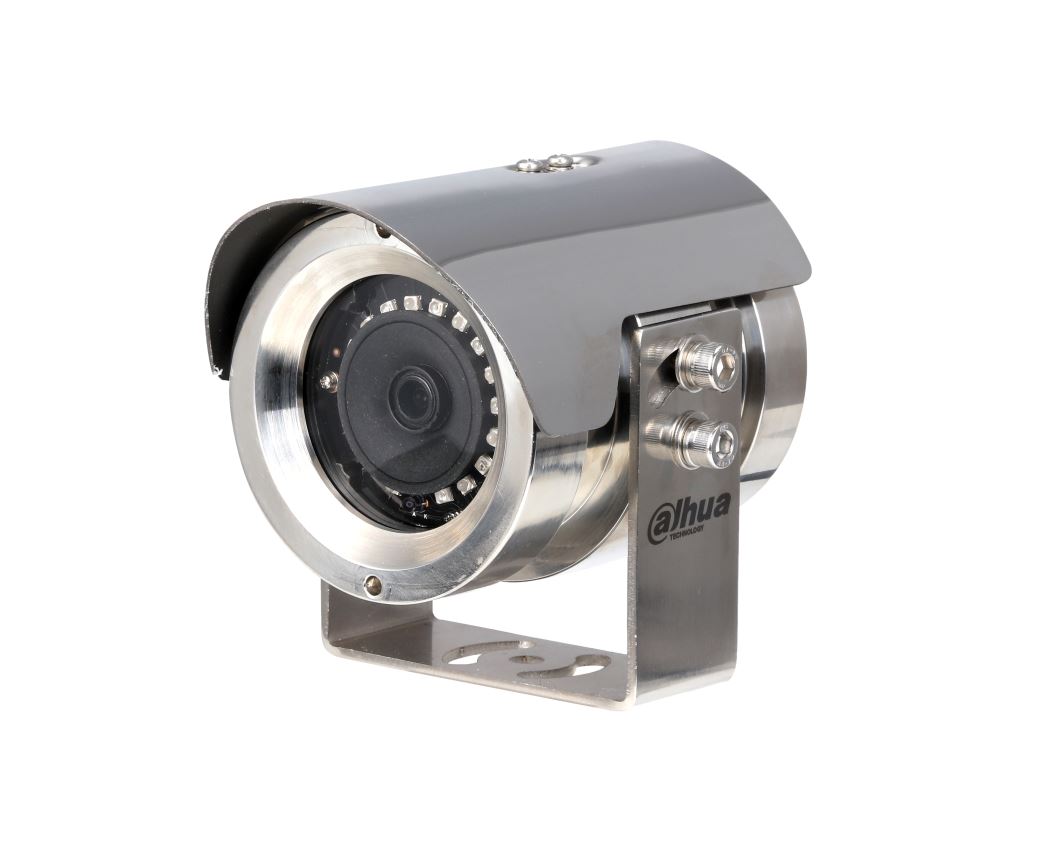

Telecamera bullet IP Starlight da interno/esterno IP68 antivandalo IK10 anticorrosione NEMA 4X, sensore CMOS Starvis progressivo 1/2.8", risoluzione 2 MP a 50fps, H.265+, ICR, ottica fissa 3.6 mm ƒ2.1, luminosità 0.005 lux ƒ2.1, portata IR fino a 30 m, 1 porta LAN 10/100 Mbps, 2/3D NR, WDR 120 dB, privacy mask, IVS, alimentazione 12 Vdc/PoE <5 W
| Camera | |
| Image Sensor | 1/2.8” STARVIS™ CMOS 1920(H) x 1080(V), 2 Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3s~1/100,000s Color: 0.005Lux@F2.1; B/W: 0.0005Lux@F2.1; |
| Minimum Illumination | 0Lux@F2.1 (IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | 30m (98ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 18 |
| Lens | |
| Focal Length | 3.6mm / 6mm |
| Max. Aperture | F2.1 / F2.0 3.6mm: H: 87°, V: 48° |
| Angle of View | 6mm: H: 51°, V: 30° |
| Lens | |
| 3.6mm | 55m(180ft) 22m(72ft) 11m(36ft) 6m(20ft) |
| 6mm | 81m(266ft) 33m(108ft) 16m(52ft) 8m(26ft) |
| Intelligence | Motion detection, Video tampering, Network |
| Event Trigger | disconnection, IP address conflict, Illegal Access, |
| Auto Tracking | N/A |
| IVS | Tripwire, Intrusion, Abandoned/Missing |
| Video | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Streaming Capability | 3 Streams 1080P(1920×1080)/1.3M(1280×960)/720P(1280× |
| Resolution | 720)/D1(704×576/704×480)/CIF(352×288/352×240) Main stream: 1080P/1.3M/720P(1 ~ 50/60fps) Sub stream1: D1/CIF(1 ~ 25/30fps) |
| Frame Rate | Sub stream2: 1080P/720P/D1(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization | N/A |
| Defog | |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Support |
| Audio | |
| Compression | N/A |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
| Protocol | |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users NAS (Network Attached Storage), Local PC for |
| Edge Storage | instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS DMSS , |
| Smart Phone | IOS, Android |
| Interface | |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm I/O | N/A |
| Electrical | |
| Power Supply | DC12V/1.5A, PoE(802.3af) |
| Power Consumption | 5W (IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP68 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | 316L stainless steel |
| Dimensions | Φ152mm × 101mm × 107.5mm |
| Net Weight | 2kg(4.41lb) |
| Gross Weight | 2.27Kg(5.01lb) |
| Ordering Information | |
| Type | Part Number Description 2MP Anti-corrosion IR Network DH-SDZW2000T-SL-0360 Camera, WDR, 3.6mm, PAL 2MP Anti-corrosion IR Network DH-SDZW2000TN-SL-0360 Camera, WDR, 3.6mm, NTSC |
| Camera | |
| Accessory | DH-PFB733W-SL Wall Mount DH-HB1000 Anti-corrosion Flexible Tube |
| Accessories | |
| Optional: | DC12V/2A DH-PFB733W-SL DH-HB1000 |
| Power Adapter | Wall Mount Flexible Tube |
| Dimensions (Mm) | |
| 152.0mm | 101.0mm 85.0mm 107.5mm 84.0mm |
