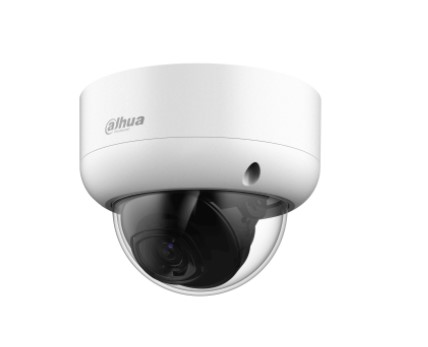

Dahua – Telecamera Dome – Da esterno – HAC-HDBW1200EA-S6 – Versione S6 – 4 tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICA commutabili – Risoluzione 2MP Full-HD 1920x1080p – Ottica fissa 2.8mm – CMOS 2MP – Illuminatore
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100000 s 0.01 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 3 (IR light) Pan: 0°–355° |
| Angle Adjustment | Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F2.0 2.8 mm: H: 102°; V: 60°; D: 129° |
| Field of View | 3.6 mm: H: 83°; V: 48°; D: 105° |
| Iris Control | Fixed 2.8 mm: 0.5 m (1.64 ft) |
| Close Focus Distance | 3.6 mm: 0.7 m (2.30 ft) |
| Dori | |
| Distance | 50.9 m 20.3 m 10.2 m 5.1 m 3.6 mm (166.99 ft) (66.60 ft) (33.46 ft) (16.73 ft) |
| Video | |
| Video Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | BNC port |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 2.8 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IK10; IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51") |
| Net Weight | 0.44 kg (0.97 lb) |
| Gross Weight | 0.62 kg (1.37 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model 2MP IR HDCVI Fixed-focal Vandal-proof DH-HAC-HDBW1200EAP Dome Camera, PAL |
| 2MP Camera | 2MP IR HDCVI Fixed-focal Vandal-proof DH-HAC-HDBW1200EAN Dome Camera, NTSC Junction Box PFA136 Mount Adapter PFA106 Ceiling Mount Bracket PFB220C Wall Mount Bracket PFB203W Pole Mount Bracket PFA152-E |
| Accessories | |
| (Optional) | Wall Mount Bracket PFB305W Corner Mount Bracket PFA151 1 Channel Passive HDCVI Balun PFM800-E 12V 1A Power Adapter PFM321D Integrated Mount Tester PFM904 |
| Optional: | |
| PFA136 | Mount Ceiling Mount |
| Junction | Adapter Bracket Box PFA152-E PFB305W |
| PFB203W | Pole Mount Wall Mount |
| Wall Mount | Bracket Bracket |
| PFA151 | PFM321D 1 Channel Passive |
| Corner Mount | 12V 1A Power HDCVI Balun |
| Bracket | Adapter |
| Integrated Mount | Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
