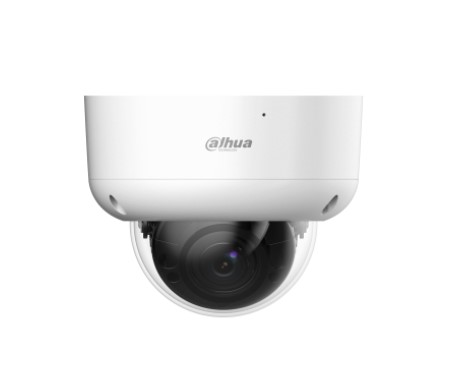

Telecamera dome HDCVI Starlight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo, risoluzione 2 MP a 25fps, ICR, ottica motorizzata 2.7~13.5 mm ƒ1.6, luminosità 0.001 lux ƒ1.5 (0 con IR On), portata IR fino a 60 m, 3D NR, WDR 130 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, Super Adapt, OSD, alimentazione 12 Vdc <6.9 W
| Camera | |
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive PAL: 1/25 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.5, 30 IRE, 0 Lux IR on |
| Illumination Distance | 60 m (196.9 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 3 (IR light) Pan: 0°–355° |
| Pan/Tilt/Rotation Range | Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Auto Focus | Yes |
| Mount Type | φ14 |
| Focal Length | 2.7 mm-13.5mm |
| Max. Aperture | F1.5 Diagonal: 131°~35° |
| Field of View | Horizontal: 108°~30° Vertical: 56°~17° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft ) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/WDR/HLC |
| WDR | 130 dB |
| White Balance | Auto/Area WB |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart IR | Yes |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | port (DIP Switch) |
| Audio Input | One channel built-in mic |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 6.9W (12V DC, IR on) |
| Environment | |
| Operating Temperature | condensation) –30 °C~+60 °C (-22 °F to 140 °F); ﹤ 95% (non- |
| Storage Temperature | condensation) |
| Protection Grade | IP67; IK10 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | φ126 mm × 100 mm (φ5" × 3.9") |
| Net Weight | 0.63 kg (1.4 lb) |
| Gross Weight | 0.81 kg (1.8 lb) |
| Ordering Information | |
| Type | Model Description DH-HAC-HDBW2241RAP-Z-A 2MP Starlight HDCVI IR Dome 2.7-13.5 mm Camera, PAL |
| Accessories | |
| (Optional) | Pole Mount Bracket PFA156 1 Channel Passive HDCVI Balun PFM800-E 12V 1A Power Adapter PFM321D Integrated Mount Tester PFM904 |
| Optional: | |
| Junction Box | Bracket PFB220C PFM800-E PFA156 |
| Ceiling Mount Bracket | 1 Channel Passive HDCVI Pole Mount Bracket |
| of Mini Dome & Eyeball | Balun |
| Camera | |
| PFM321D | PFM904 |
| 12V 1A Power Adapter | Integrated Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
