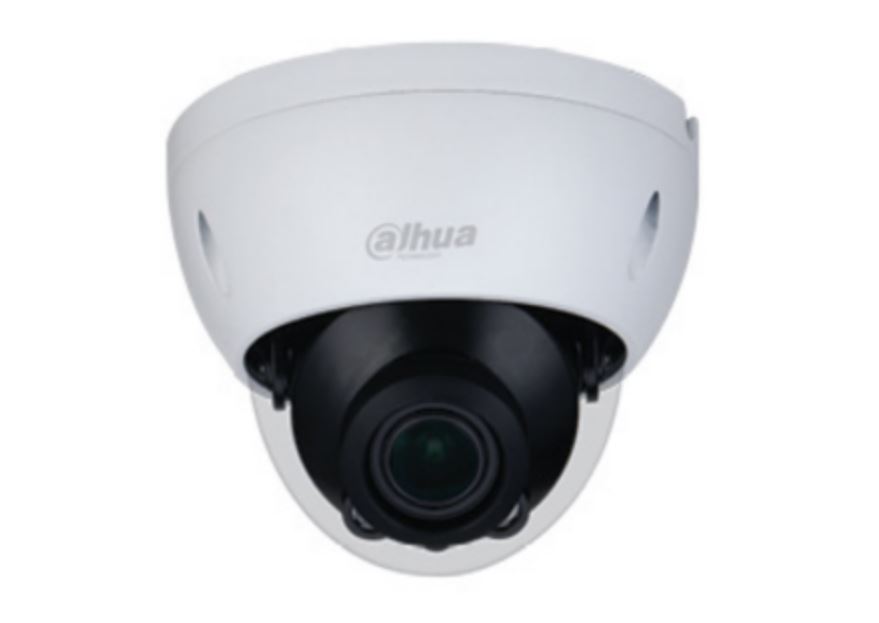

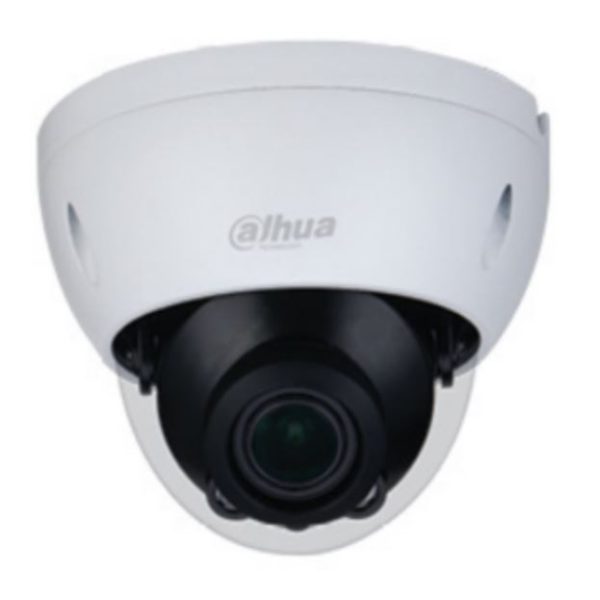

HAC-HDBW1200RA-Z-S6 – è una telecamera dome HDCVI da 2MP progettata per offrire immagini in alta definizione anche in ambienti difficili. Dotata di ottica motorizzata da 2.7–12 mm , consente un’inquadratura flessibile e
La Dahua HAC-HDBW1200RA-Z-S6 è una telecamera dome HDCVI da 2MP progettata per offrire immagini ad alta definizione in ambienti interni ed esterni. Grazie all’ottica motorizzata varifocale da 2.7–12 mm e alle tecnologie di visione notturna Smart IR fino a 60 metri, garantisce sorveglianza chiara anche in condizioni di scarsa illuminazione. Il design compatto e la scocca resistente IP67 e IK10 la rendono ideale per applicazioni in ambito residenziale, commerciale e industriale.
Specifiche principali:
– Risoluzione Full HD 1080p (2 Megapixel)
– Ottica varifocale motorizzata da 2.7–12 mm
– Visione notturna Smart IR fino a 60 m
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100000 s 0.01 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 60 m (196.85 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 3 (IR light) Pan: 0°–355° |
| Angle Adjustment | Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Auto Focus | No |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Dori | |
| Distance | (155.51 ft) (62.01 ft) (31.17 ft) (15.42 ft) 155.6 m 62.2 m 31.1 m 15.6 m 12 mm (510.50 ft) (204.07 ft) (102.03 ft) (51.18 ft) |
| Video | |
| Video Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Audio Input | One channel built-in Mic |
| Power | |
| Power Supply | 24 VAC ± 30%;12 VDC ± 10% |
| Power Consumption | Max 7.3 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IK10;IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | φ126 mm × 100 mm (φ4.96" × 3.94") |
| Net Weight | 0.65 kg (1.43 lb) |
| Gross Weight | 0.83 kg (1.83 Ib) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model Description DH-HAC-HDBW1200RAP- 2MP IR HDCVI Motorized Vari-Focal Z-A-DP Vandal-proof Dome Camera, PAL |
| Accessories | |
| (Optional) | PFA156 Pole Mount Bracket PFM800-E Passive HDCVI Balun PFM321 12V 1A Power Adapter PFM904 Integrated Mount Tester |
| Optional: | |
| PFA197R | PFB206W PFA109 |
| Junction Box | Wall Mount Bracket Mount Adapter |
| PFB220C | PFA156 PFM800-E |
| Ceiling Mount Bracket | Pole Mount Bracket Passive HDCVI Balun |
| PFM321 | PFM904 |
| 12V 1A Power Adapter | Integrated Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
