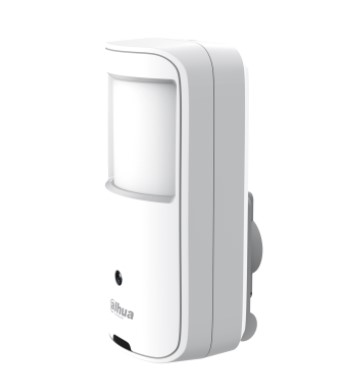

Telecamera cube HDCVI da interno, sensore CMOS progressivo 1/2.8", risoluzione 2 MP a 25fps, ottica fissa M12 2.8 mm ƒ2.0, luminosità 0.01 lux ƒ2.0 (0 con IR On), portata IR (940 nm) fino a 10 m, 2D NR, CVI/TVI/AHD/CVBS commutabili su porta BNC, Super Adapt, OSD, alimentazione 12 Vdc <3.3 W
| Camera | |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100000 s 0.01 lux@F2.0 (B/W, 30 IRE) |
| Min. Illumination | 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 10 m (32.81 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 105°; V: 58°; D: 118° |
| Iris Control | Fixed |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Dori | |
| Distance | 42.1 m 16.8 m 8.4 m 4.2 m 2.8 mm (138.12 ft) (55.12 ft) (27.56 ft) (13.78 ft) |
| ABF | Yes |
| Video | |
| Video Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080) |
| Day/Night | Color/B/W |
| BLC | BLC; DWDR; HLC |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 3.3 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 95% (RH), non-condensing < |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 95% (RH), non-condensing < |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | 61.7 mm × 58.1 mm × 119.7 mm (2.43" × 2.29" × 4.71") |
| Net Weight | 0.12 kg (0.26 lb) |
| Gross Weight | 0.19 kg (0.42 lb) |
| Installation | Wall Mount |
| Ordering Information | |
| Type | Part Number Description 2MP IR HDCVI Fixed-focal Cube Camera, DH-HAC-HUM3200AP PAL |
| 2M Camera | 2MP IR HDCVI Fixed-focal Cube Camera, DH-HAC-HUM3200AN NTSC PFM800-E 1 Channel Passive HDCVI Balun |
| Accessories | |
| PFM800-E | 12V 1A Power |
| 1 Channel Passive | Integrated Mount Adapter |
| HDCVI Balun | Tester |
