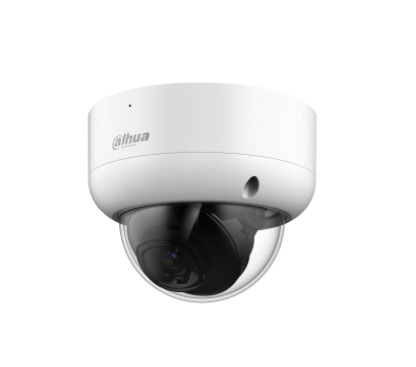

Telecamera dome HDCVI Starlight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo, risoluzione 2 MP a 25fps, ICR, ottica fissa M12 2.8 mm ƒ1.6, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 40 m, 3D NR, WDR 130 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, Super Adapt, OSD, alimentazione 12 Vdc <3.1 W
| Camera | |
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive PAL: 1/25 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.6, 30 IRE, 0 Lux IR on |
| Illumination Distance | 40 m (132.1ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 3 (IR light) Pan: 0°–355° |
| Pan/Tilt/Rotation Range | Tilt: 0°–75° Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 109°; V: 58°; D: 127° |
| Field of View | 3.6 mm: H: 86°; V: 46°; D: 101° |
| Iris Type | Fixed iris 2.8 mm: 0.7 m (2.3 ft) |
| Close Focus Distance | 3.6 mm: 1.1 m (3.6 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576 / 960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/WDR/HLC |
| WDR | 130 dB |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Port | |
| Video Output | port (DIP Switch) |
| Audio Input | One channel built-in mic |
| Power | |
| Power Supply | 12 V ±30% DC |
| Power Consumption | Max 3.1 W (12 V DC, IR on) |
| Environment | |
| Operating Temperature | densation) –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-con |
| Storage Temperature | densation) |
| Protection Grade | IP67; IK10 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | Ø112 mm × 89.1 mm (4.41" × 3.51") |
| Net Weight | 0.33 Kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
| Ordering Information | |
| Type | Model 2MP Starlight HDCVI Fixed IR Dome Camera, DH-HAC- PAL HDBW2241EAP-A |
| 2M Camera | 2MP Starlight HDCVI Fixed IR Dome Camera, DH-HAC- NTSC HDBW2241EAN-A Junction box PFA136 IP66 Junction box PFA123 Mount Adapter (For use with PFB220C) PFA106 Ceiling Mount Bracket (For use with PFA106) PFB220C Wall Mount Bracket (For use alone or with |
| Accessories | |
| (Optional) | Pole Mount Bracket (For use with PFB203W) PFA152-E Passive HDCVI Balun PFM800-E 12 V 1A Power Adapter PFM321D Integrated Mount Tester PFM904 |
| Optional: | |
| PFA136 | IP66 Junction box Mount Adapter (For |
| Junction Mount | use with PFB220C) PFB203W PFA152-E |
| PFB220C | Wall Mount Bracket Pole Mount Bracket |
| Ceiling Mount Bracket | (For use alone or with (For use with PFB203W) |
| (For use with PFA106) | PFA152-E) |
| PFM800-E | PFM904 PFM321D |
| Passive HDCVI Balun | Integrated Mount Tester 12V 1A Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
