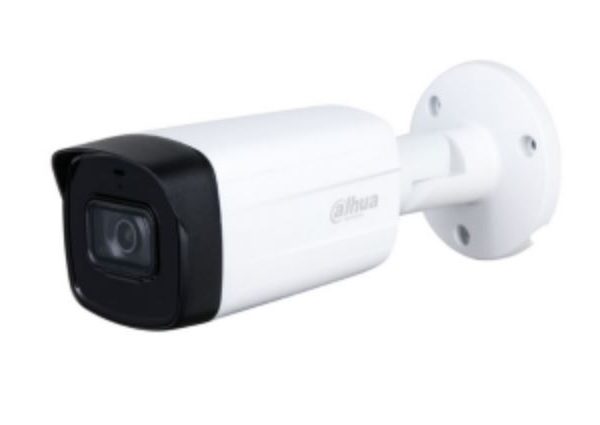

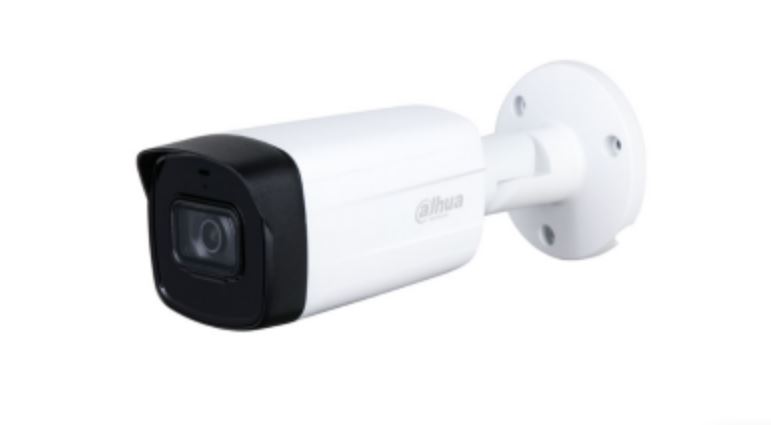

Telecamera HDCVI Bullet IR fissa 4K Starlight
> Max. 15 fps@4K.
Codice produttore: DH-HAC-HFW1801THP-I8
I parametri e i datasheet sono forniti solo come riferimento e possono differire dal prodotto reale. Si prega di fare riferimento al prodotto fisico in caso di dubbi.
| Camera | |
| Pixel | 8 MP 4K CMOS |
| Image Sensor | 3840 (H) × 2160 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100000 s 0.01 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | 65 dB > |
| Illumination Distance | 80 m (262.47 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F2.0 2.8 mm: H: 106°; V: 56°; D: 125° |
| Field of View | 3.6 mm: H: 88°; V: 46°; D: 105° 6 mm H: 55°; V: 31°; D: 62° |
| Iris Control | Fixed 2.8 mm: 1.3 m (4.27 ft) |
| Close Focus Distance | 3.6 mm: 1.9 m (6.23 ft) 6 mm: 3.5 m (11.48 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Video Frame Rate | NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 1080p (1920 x 1080); 960H (960 x 576/960 x 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Smart IR |
| Defog | |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 6.4 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal front cover + plastic rear barrel + metal bracket |
| Product Dimensions | 240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56") |
| Packaging Dimensions | 299 mm × 119 mm × 111 mm (11.77" × 4.69" × 4.37") |
| Net Weight | 0.41 kg (0.90 lb) |
| Gross Weight | 0.62 kg (1.36 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Part Number Description DH-HAC-HFW1801THP- 4K HDCVI Fixed IR Bullet Camera, PAL I8 |
| 4K Camera | DH-HAC-HFW1801THN- 4K HDCVI Fixed IR Bullet Camera, NTSC I8 PFA130-E Junction Box PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFM321D 12V 1A Power Adapter PFM904 Integrated Mount Tester |
| Optional: | |
| PFA130-E | PFA152-E Passive HDCVI Pole Mount |
| Junction | Balun Bracket Box PFM904 |
| PFM321D | Integrated Mount |
| Adapter | Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
