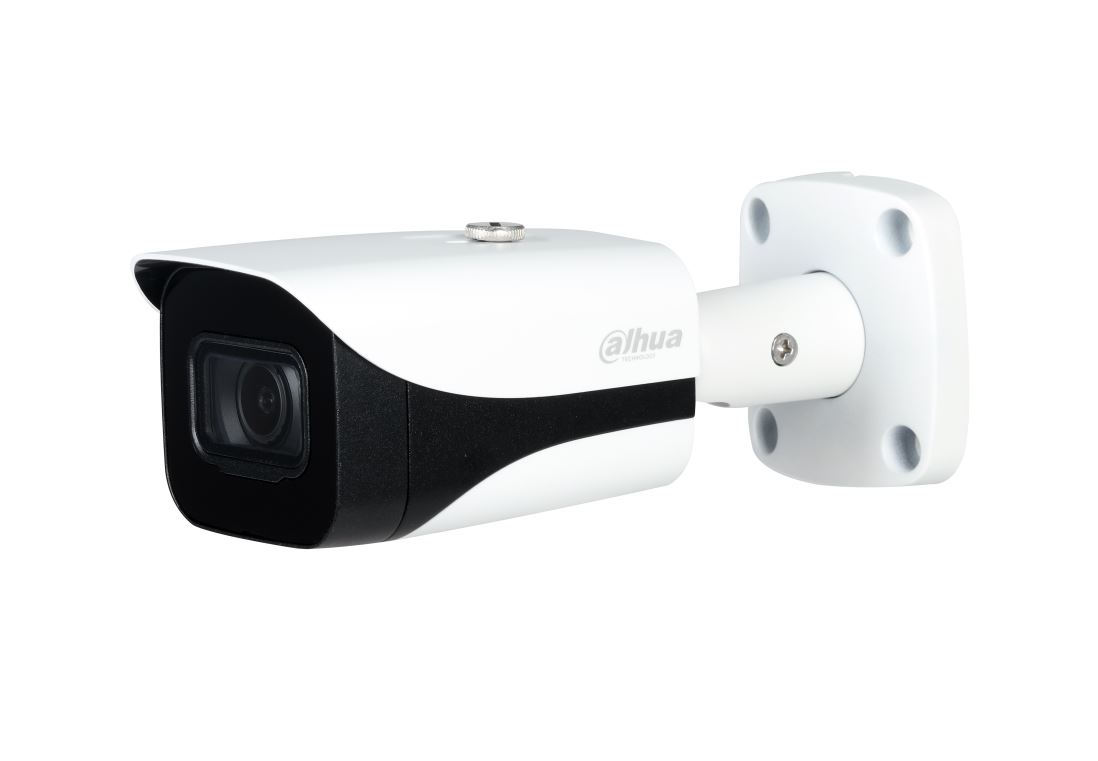

Telecamera bullet HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 15fps, ICR, ottica fissa M12 3.6 mm, luminosità 0.001 lux F1.5 (0 con IR On), portata IR fino a 40 m, 3D NR, WDR 120 dB, CVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, Super Adapt, alimentazione 12 Vdc <6.4 W
Datasheet
Manuali
| Camera | |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive PAL: 1/3 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No 2.8 mm: M16 |
| Lens Mount | 3.6 mm: M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.5 2.8mm: H: 111°; V: 59°; D: 131° |
| Field of View | 3.6mm: H: 87°; V: 49°; D: 99° |
| Iris Control | Fixed 2.8 mm: 1.8 m (5.91 ft) |
| Close Focus Distance | 3.6 mm: 2.2 m (7.22 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Video | |
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); |
| Resolution | 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Defog | |
| Digital Zoom | 4× |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | port (DIP Switch) |
| Audio Input | One channel built-in MIC |
| Power | |
| Power Supply | adapter to supply the power for one camera) |
| Power Consumption | Max 6.4 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Plastic sunshield + metal body |
| Product Dimensions | 179.9 mm × 70.0 mm × 70.0 mm (7.08" × 2.76" × 2.76") |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.54 kg (1.19 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model 4K Starlight HDCVI Fixed-focal Bullet DH-HAC-HFW2802EP-A Camera, PAL |
| 2M Camera | 4K Starlight HDCVI Fixed-focal Bullet DH-HAC-HFW2802EN-A Camera, NTSC Water-proof Junction Box PFA121 Pole Mount Bracket PFA152-E |
| Accessories | |
| (Optional) | 12V 1A Power Adapter PFM321D Integrated Mount Tester PFM904 |
| Optional: | |
| PFA121 | Pole Mount 1-CH Passive Video |
| Water-proof | Bracket Balun |
| Junction Box | PFM904 |
| PFM321D | Integrated Mount |
| 12V 1A Power | Tester |
| Adapter | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
