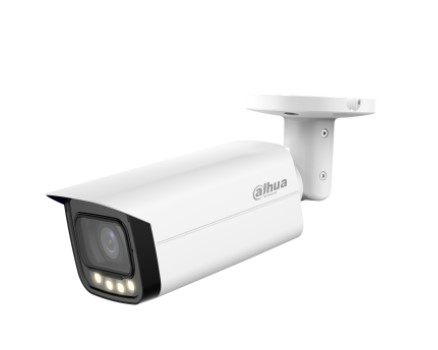

Telecamera bullet HDCVI Full-color da interno/esterno IP67, sensore CMOS progressivo, risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica motorizzata f14 2.7~13.5 mm ƒ1.2, luminosità 0.001 lux ƒ1.2 (0 con LED On), portata LED fino a 60 m, microfono, WDR 120 dB, 3D NR, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), OSD, alimentazione 12 Vdc <11.88 W
Datasheet
Manuali
| Functions | |
| V4.001.0000001.0.R.200908 or later version. | IP67 WDR |
| Camera | |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive PAL: 1/3 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.2, 0 Lux White Light on |
| Illumination Distance | 60 m (196.9 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 4 Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.2 H: 35°–112°; |
| Field of View | V: 19°–58°; D: 40–137° |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.5 m (4.9 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080); 960H (960 × 576/960 × 480) |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; Area WB |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart Light | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Port | |
| Video Output | BNC port |
| Audio Input | One channel built-in mic |
| Power | |
| Power Supply | 12 V ±30% DC |
| Power Consumption | Max 11.88 W (12 V DC, warm light on) |
| Environment | |
| Operating Temperature | sation) –30 °C to +60 °C (–22 °F to 140 °F); < 95% (nonconden |
| Storage Temperature | sation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56") |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.04 kg (2.29 lb) |
| Ordering Information | |
| Type | Model 5MP Full-Color HDCVI Motorized Vari-focal DH-HAC-HFW1509TUP- Bullet Camera, PAL Z-A-LED |
| 5MP Camera | 5MP Full-Color HDCVI Motorized Vari-focal DH-HAC-HFW1509TUN- Bullet Camera NTSC Z-A-LED Junction box PFA135 Water-proof Junction Box PFA130-E Pole Mount Bracket (For use with PFA130-E PFA152-E Water-proof Junction Box) |
| Accessories | |
| (Optional) | Passive HDCVI Balun PFM800-4K 12V 2A Power Adapter PFM320D Integrated Mount Tester PFM904 |
| Optional: | |
| PFM800-4K | 12V 2A Power Adapter Integrated Mount Tester |
| Passive HDCVI Balun | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
