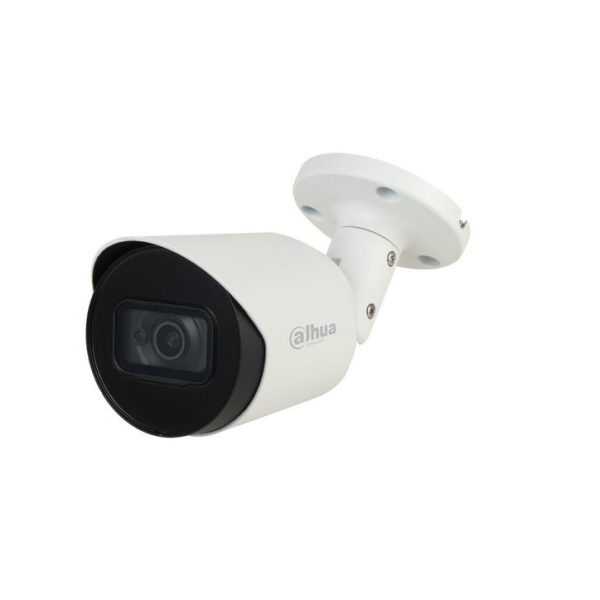

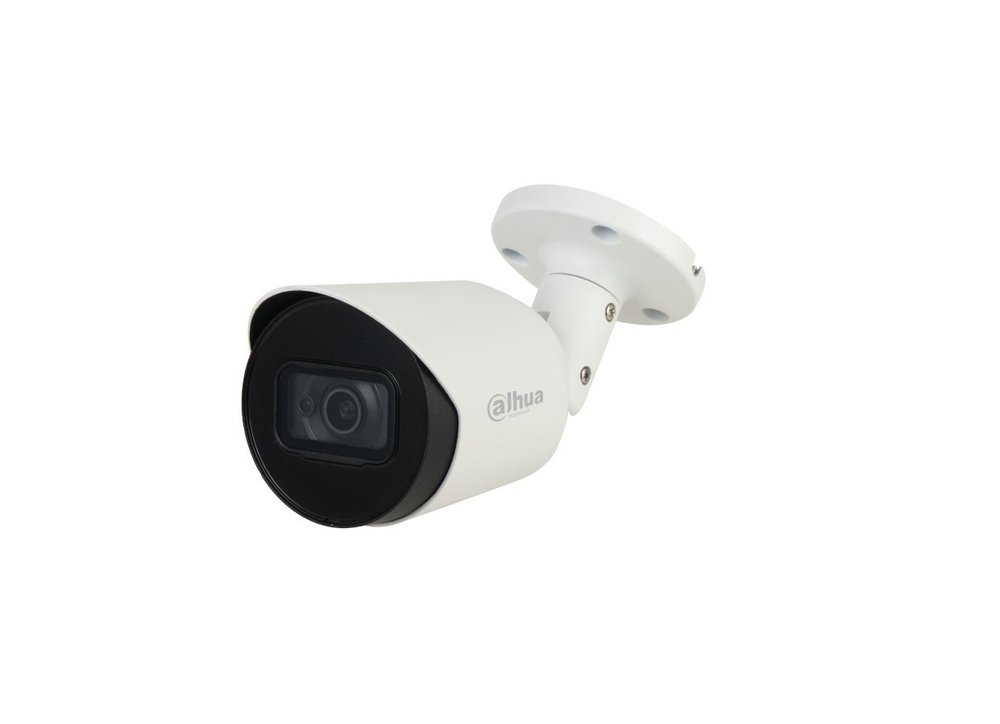

Telecamera HDCVI Bullet IR 4K
Codice produttore: DH-HAC-HFW1801TN
| Camera | |
| Image Sensor | 1/2.7 inch CMOS 3840 (H)×2160 (V), 4K |
| Effective Pixels | PAL: 1/3s-1/100000s |
| Electronic Shutter Speed | NTSC: 1/4s-1/100000s 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| Minimum Illumination | Distance up to 30m (98.43ft) |
| IR Distance | Auto/Manual |
| IR On/Off Control | 1 |
| IR LEDs | Pan: 0°–360° Tilt: 0°–180° |
| Pan/Tilt/Rotation Range | Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm; 3.6mm; 6mm |
| Max. Aperture | F2 .0 2.8mm: 125°×105°×56° (diagonal×horizontal×vertical) |
| Angle of View | 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) 6mm: 62.4°×54.7°×31.3° (diagonal×horizontal×vertical) |
| Iris type | Fixed Iris |
| Close Focus Distance | 1m/1.8m/3.6m (3.28ft/5.91ft/11.81ft) |
| Lens | |
| DORI Distance | 3.6mm 107m(351ft) 43m(141ft) 21m(69ft) 11m(36ft) 6mm 160m(525ft) 64m(210ft) 32m(105ft) 16m(52ft) |
| Video | |
| Video Frame Rate | AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); |
| Resolution | 960H (960× 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR |
| WDR | 120dB/WDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D&3D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 4X |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 Area, Rectangle) |
| Interface | |
| Audio Interface | Built-in Mic (-A) |
| Port | |
| Video Port | BNC port |
| Power | |
| Power Supply | 12V±30% DC |
| Power Consumption | Max 5.2W (12V DC, IR on) -40°C to +60°C (-40°F to 140°F); 95% < |
| Operating Temperature | (non-condensation) -40°C to +60°C (-40°F to 140°F); 95% < |
| Storage Temperature | (non-condensation) |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |
| Dimensions | 174.5mm×70.6mm×72.3mm (6.87”×2.78”×2.85”) |
| Net Weight | 350g (0.77lb) |
| Gross Weight | 450g (0.99lb) |
| Ordering Information | |
| Type | Part Number Description DH-HAC- HFW1801TP- 0280B DH-HAC- HFW1801TN- 0280B DH-HAC- HFW1801TP- 0360B DH-HAC- HFW1801TN- 0360B DH-HAC- HFW1801TP- 0600B DH-HAC- HFW1801TN- 0600B |
| 4K Camera | 4K HDCVI IR Bullet Camera DH-HAC- HFW1801TP-A- 0280B DH-HAC- HFW1801TN-A- 0280B DH-HAC- HFW1801TP-A- 0360B DH-HAC- HFW1801TN-A- 0360B DH-HAC- HFW1801TP-A- 0600B DH-HAC- HFW1801TN-A- 0600B Water-proof Junction Box (wall mount) PFA134 Water-proof Junction Box+Pole Mount Bracket PFA134+PFA152-E (pole mount) |
| Optional: | |
| PFA134 | PFA134+PFA152-E 12V 1.5A |
| Water-proof Junction | Water-proof Junction Box+ Power Adapter |
| Box (wall mount) | Pole Mount Bracket (pole mount) |
| PFM321 | PFM320 |
| 12V 1A | 12V 2A |
| Power Adapter | Power Adapter |
| Junction Mount | Wall Mount Pole Mount |
| PFA134 | PFA134+PFA152-E |
