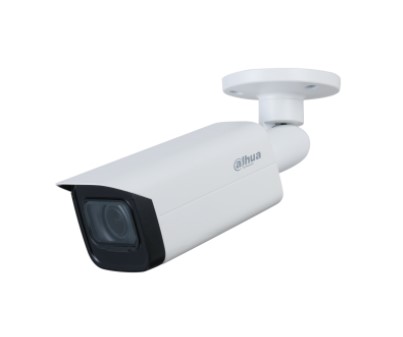

Telecamera bullet HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 15fps, ICR, ottica motorizzata 2.7~13.5 mm, luminosità 0.001 lux ƒ1.5 (0 con IR On), portata IR fino a 80 m, 3D NR, WDR 120 dB, CVI/TVI/AHD/CVBS su una porta BNC (DIP Switch), 1 ingresso audio con microfono integrato, OSD, Super Adapt, alimentazione 12 Vdc <10.9 W
| Camera | |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive PAL: 1/3 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65dB |
| Illumination Distance | 80 m (262.47 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 4 (IR light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Auto Focus | Yes |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 113°–47°; V: 60°–26°; D: 133°–53° |
| Iris Control | Fixed |
| Close Focus Distance | 1.2 m (3.94 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); |
| Resolution | 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Defog | |
| Digital Zoom | 4× |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | port (DIP Switch) |
| Audio Input | One channel built-in MIC |
| Power | |
| Power Supply | to supply the power for one camera) |
| Power Consumption | Max 10.9 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56") |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.1 kg (2.43 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Part Number Description DH-HAC-HFW2802TUP- 4K Starlight HDCVI Motorized Vari-focal Z-A IR Bullet Camera, PAL |
| 4K Camera | DH-HAC-HFW2802TUN- 4K Starlight HDCVI Motorized Vari-focal Z-A IR Bullet Camera, NTSC PFA135 Junction Box PFA130-E Water-proof Junction Box PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFM800-4K 1-CH Passive Video Balun PFM320D 12V 2A Power Adapter PFM904 Integrated Mount Tester |
| Optional: | |
| Junction | Junction Box Bracket Box PFM320D PFM904 |
| PFM800-4K | 12V 2A Power Integrated |
| 1-CH Passive | Adapter |
| Video Balun | Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
