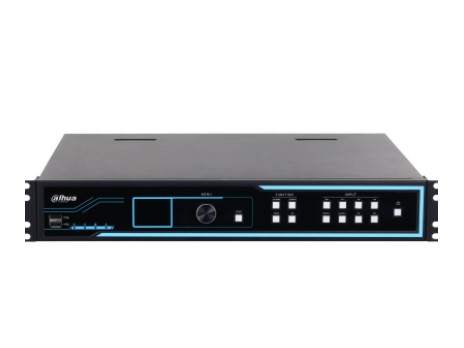

Network Video Decoder IP a 16 canali, codifica H.265, ingressi video: 2 HDMI + 2 DP, uscite audio/video: 12/16 canali HDMI, 4 ingressi e 4 uscite allarme, jack audio bidirezionale 3.5 mm, 2 porte Gigabit Ethernet + 2 porte Gigabit ottiche, 4 porte USB (2 3.0 + 2 2.0), 1 RS485, alimentazione 100~240 Vac <130 W
Datasheet
Manuali
| System | |
| Main Processor | High-performance embedded processor |
| Operating System | Embedded LINUX |
| Function | |
| Number of Video Output | 16-ch HDMI |
| Interoperability | ONVIF; General; Dahua Private; Hikvision Private |
| Video Compression | H.265;H.264;MJPEG;MPEG4;SVAC;MPEG2 |
| Audio Compression | PCM; G711; AAC There are 4 ports in each group, and each group supports an equal portion of the device's decoding and video capabilities. It decodes to 8-ch 32MP@25 |
| Decoding Capability | fps, (this is only supported by H.265), 28-ch 12MP@25 fps, 40-ch 8MP@25 fps, 56-ch 6MP@25 fps, 72-ch 5MP@25 fps, 72-ch 4MP@30 fps, 112-ch 3MP@25 fps,144-ch 1080p@30 fps, 400-ch D1@30 fps videos. QCIF; CIF; 2CIF; HD1; D1; 960H; 720p; 1080p; 3 MP; 4 |
| Decoding Pixel | MP; 5 MP; 6 MP; 8 MP; 12 MP; 32 MP 1024 × 768@60 fps; 1280 × 720@60 fps; 1280 × 1024@60 fps; 1920 × 1080@60 fps; 1920 × 1200@60 |
| Output Resolution | fps; 2048 × 1152@60 fps; 3840 × 2160@30 fps; 3840 × 2160@60 fps |
| Bit Rate Type | Composite stream; video stream |
| Video Input | 2-ch DP; 2-ch HDMI 1/4/6/8/9/16/25/36 window splits. Supports M × N |
| Multi-screen Display | custom split, M × N ≤ 36. |
| Screen Splicing | Up to 16 screens can be spliced together. |
| Window & Roam | Opens up to 36 windows, and supports roaming. Supports configuring schemes, tour, scheduled schemes |
| Scheme Tour | and setting the tour interval. The video output resolution can be customized and fine |
| Fine Pixel Pitch LED | pixel pitch LEDs can be accessed. Displays high-definition background images, and |
| Background Image Color | supports setting the default background color for the video wall. Displays people, their faces, motor and non-motor |
| Enable AI Function | vehicles, crowd density and AI rules on a large screen. Supports OSD and configuring the position and font size |
| Virtual LED | of its content. 800 × 600@60 fps; 1024 × 768@60 fps; 1152 × 864@60 fps; 1280 × 720@60 fps; 1280 × 800@60 fps; 1280 × 960@60 fps; 1280 × 1024@60 |
| Input Resolution | fps; 1366 × 768@60 fps; 1440 × 900@60 fps; 1680 × 1050@60 fps; 1920 × 1080@60 fps; 3840× （ （ ） 2160@30 fps HDMI2); 3840×2160@60fps DP2 ; （ ） 4096×2160P@30fps DP2 |
| Port | |
| Video Output | 16-ch HDMI |
| Audio Output | 3.5 mm port, 12-ch HDMI |
| Alarm Input | 4-ch 2023 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| Alarm Output | 4-ch |
| Network Port | 2 × gigabit optical ports, 2 × gigabit electrical ports |
| RS-232 | 3 (1 × DB9, 2 × RJ-45) |
| USB | 4 (2 × USB 3.0, 2 × USB 2.0) |
| RS-485 | 1 |
| General | |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | ≤130 W |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing 70 mm × 408 mm × 440 mm (2.76" × 16.06" × 17.32") |
| Product Dimensions | (H × W × D) 220 mm × 508 mm × 557 mm (8.66" × 20.00" × 21.93") |
| Packaging Dimensions | (H × W × D) |
| Gross Weight | 8.7 kg–9.1 kg (19.18 lb–20.06 lb) |
| Net Weight | 5.7 kg–6.0 kg (12.57 lb–13.23 lb) |
| Ordering Information | |
| Type | Part Number Description |
| NETWORK VIDEO | DHI- Dahua 16CH UHD |
| DECODER | NVD1605DU-4I-8K-2U2H NETWORK VIDEO DECODER |
