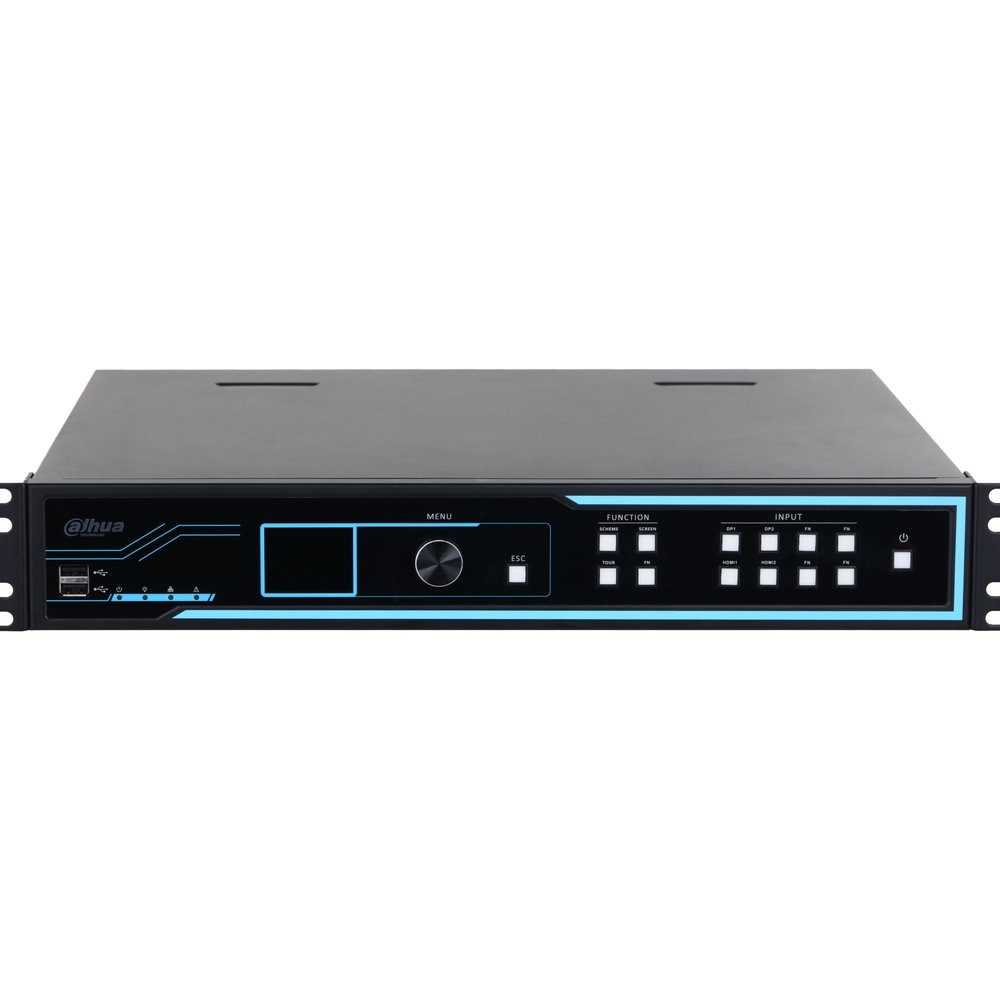

Network Video Decoder 12 canali, capacità decodifica simultanea max. 3 ch 8K / 27 ch 4K / 108 ch 1080p, 4 ingressi e 4 uscite allarme, 2 input HDMI e 2 input DP, output HDMI 2.1, 2 porte ottiche Gigabit e 2 porte elettriche Gigabit, 3 porte RS232, 1 porta RS485, 4 porte USB, alimentazione 85-115 / 230-264 Vac <160 W
Datasheet
Manuali
| System | |
| Main Processor | High-performance embedded processor |
| Operating System | Embedded LINUX |
| Function | |
| Number of Video Output | 12 × HDMI |
| Video Compression | SVAC; H.264; H.265; MJPEG; MPEG4; MPEG2 |
| Audio Compression | PCM; G711; AAC Performs H.264 and H.265 decoding (1080p@60 fps by default for output ports). |
| Decoding Capability | Synchronously decodes to 3-channel 8K@60 fps, 27-channel 4K@30 fps, 108-channel 1080p@30 fps or 432-channel D1@30 fps videos. QCIF; CIF; 2CIF; HD1; D1; 960H; 720p; 1080p; 3 MP; 4 |
| Decoding Pixel | MP; 5 MP; 6 MP; 8 MP; 12 MP; 32 MP 1024 × 768@60 fps; 1280 × 720@60 fps; 1280 × 1024@60 fps; 1920 × 1080@60 fps; 1920 × 1200@60 |
| Output Resolution | fps; 2048 × 1152@60 fps; 3840 × 2160@30 fps; 3840 × 2160@60 fps |
| Bit Rate Type | Composite stream; video stream |
| Video Input | 2 × DP; 2 × HDMI 1/4/6/8/9/16/25/36 window splits per screen. |
| Multi-screen Display | Supports M × N custom split, M × N ≤ 36. |
| Screen Splicing | Splices together up to 12 screens. |
| Window & Roam | Opens up to 36 windows, and supports roaming. Supports configuring schemes, tour, scheduled |
| Scheme Tour | schemes and setting the tour interval. The video output resolution can be customized and |
| Small-pitch LED | small-pitch LEDs can be accessed. Displays high-definition background images, and |
| Background Image Color | supports setting the default background color for the video wall. Displays people, their faces, motor and non-motor |
| Enable AI Function | vehicles, crowd density and AI rules on a large screen. Supports OSD and configuring the position and font |
| Virtual LED | size of its content. 800 × 600@60 fps; 1024 × 768@60 fps; 1152 × 864@60 fps; 1280 × 720@60 fps; 1280 × 800@60 fps; 1280 × 960@60 fps; 1280 × 1024@60 fps; 1366 × 768@60 fps; 1440 × 900@60 fps; 1680 × |
| Input Resolution | 1050@60 fps; 1920 × 1080@60 fps; 3840 × 2160@30 fps (supported only by HDMI2); 3840 × 2160@60 fps (supported only by DP2), 4096 × 2160@30 fps (supported only by DP2) |
| Port | |
| Video Output | 12 × HDMI |
| Audio Output | 3.5 mm port, 8 × HDMI |
| Alarm Input | 4 (5V TTL signal input) 4 relay output (Linked output of 30 VDC 1A and 125 |
| Alarm Output | VAC 0.5A) |
| Network Port | 2 × gigabit optical, 2 × gigabit electrical |
| RS-232 | 3 (1 × DB9, 2 × RJ-45) |
| USB | 4 (2 × USB 3.0, 2 × USB 2.0) |
| RS-485 | 1 |
| General | |
| Power Supply | 100–240 VAC, 50 Hz/60 Hz |
| Power Consumption | ≤100 W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity | 10%–95% (86 kPa–106 kPa) 70 mm × 408 mm × 440 mm (2.76" × 16.06" × 17.32") |
| Product Dimensions | (1.5 U) (H × W × D) 200 mm × 508 mm × 557 mm (7.87" × 20.00" × |
| Packaging Dimensions | 21.93") (H × W × D) |
| Gross Weight | 7.5 kg–7.8 kg (16.53 lb–17.20 lb) |
| Net Weight | 5.5 kg–5.8 kg (12.13 lb–12.79 lb) |
| Application | |
| DSS/PSS | DP/HDMI |
| NVR/DVR | Ethernet SYV FDDI HD-SDI HDCVI |
