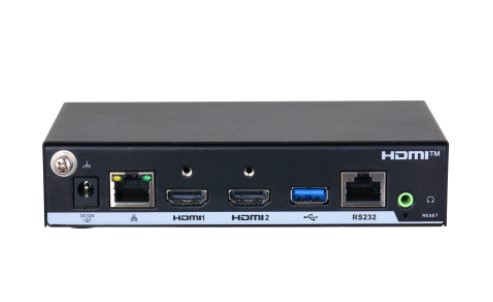

Network Video Decoder IP a 2 canali (2 ch 8 MP / 10 ch 1080p), codifica H.265, uscite video: 2 HDMI, uscite audio: 2 HDMI e 1 3.5 mm, 1 porta Gigabit Ethernet, 1 RS232, 3 USB, alimentazione 100-240 Vac <24 W
Datasheet
Manuali
| System | |
| Main Processor | High-performance embedded processor |
| Operating System | Embedded Linux |
| Function | |
| Number of Video Output | × 2 HDMI |
| Interoperability | ONVIF; General; Dahua Private; Hikvision Private |
| Video Compression | H.265;H.264 |
| Audio Compression | PCM Decodes maximum 2-ch 8MP@25 fps videos, 3-ch 6MP@25 fps videos, 5-ch 5MP@25 fps videos, 5-ch |
| Decoding Capability | 4MP@25 fps videos, 7-ch 3MP@25 fps videos, 10-ch 1080p@30 fps videos and 32-ch D1@30 fps at the same time. QCIF; CIF; 2CIF; HD1; D1; 720p; 1080p; 3 MP; 4 MP; 5 |
| Decoding Pixel | MP; 6 MP; 8 MP × × × 1024 768@60 Hz, 1280 720@60 Hz, 1280 |
| Output Resolution | × × 1024@60 Hz, and 1920 1080@60 Hz. It is 1920 1080 by default. |
| Bit Rate Type | Composite stream; video stream × 1/4/6/8/9/16/25 split. Supports M N custom split, and |
| Multi-screen Display | × ≤ M N 36 |
| Screen Splicing | Up to 20 screens can be spliced together. Supports customized windowing and roaming. Up to 25 |
| Window & Roam | channels with windowing. |
| Scheme Tour | scheme, and customizing tour intervals. Supports customized resolutions and connecting to |
| Fine Pixel Pitch LED | small-pitch LEDs. Displays HD background images, and supports |
| Background Image Color | configuring the default background color for the video wall. Displays customized OSD text, such as the location and |
| Virtual LED | font size. |
| Port | |
| Video Output | × 2 HDMI |
| Audio Output | × × 2 HDMI, 1 3.5 mm × – 1 RJ 45 10 M/100 M/1000 M self-adaptive Ethernet |
| Port | |
| RS-232 | × 1 RJ-45 |
| USB | × 3 USB |
| General | |
| Power Supply | – 100 240 VAC, 50;60 Hz |
| Power Consumption | ≤ 24 W |
| Operating Temperature | – ° ° ° ° 10 C to +55 C (+14 F to +131 F) |
| Operating Humidity | – – 10% 95% (RH), non-condensing (86 kPa 106 kPa) × × ” × × ” 150.0 mm 92.0 mm 32.8 mm (5.91 3.62" 1.29 ) |
| Product Dimensions | × × (L W H) × × ” × × 297.0 mm 163.0 mm 71.0 mm (11.69 6.42" |
| Packaging Dimensions | ” × × 2.80 ) (L W H) |
| Gross Weight | 0.5 kg (1.10 lb) |
| Net Weight | 0.3 kg (0.66 lb) |
| Ordering Information | |
| Type | Part Number Description Dahua 2CH UHD NETWORK |
| Decoding Splicing Unit | DHI-NVD0200FX-A01 VIDEO DECODER |
| Dimensions (Mm[Inch]) | |
| 3 | Pictures in the document are for reference only, and the actual product shall prevail. |
