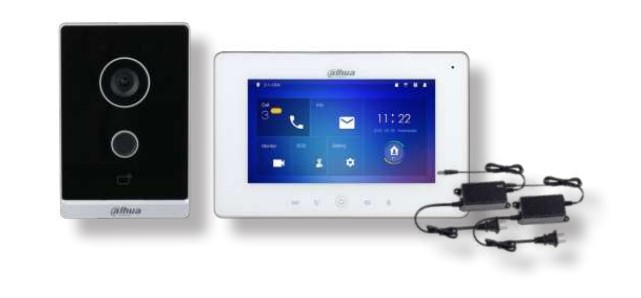

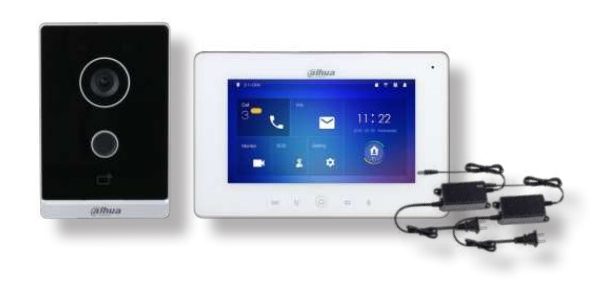

Kit videocitofonico Wi-Fi che include 1 posto esterno villa mono-famigliare Wi-Fi VTO2211G-WP-S2 e 1 monitor interno VTH5221DW-S2
Datasheet
| Model | DHI-VTO2211G-WP-S2 |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Mechanical | |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Camera | |
| Field of View | H: 125°; V: 71°; D: 142° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 Main stream: 720p, WVGA, D1, CIF |
| Video Resolution | Sub stream: 1080p, WVGA, D1, QVGA, CIF PAL: 25 fps; |
| Video Frame Rate | NTSC: 30 fps |
| Video Bit Rate | 256 Kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Auto Snapshot | Yes Yes (SD card is inserted in the indoor monitor or |
| Leave Videos | door station) |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Storage | |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–4.3 cm (0"–1.69") |
| Issue Card Locally | Yes |
| Casing Material | PC + Acrylic |
| Capacity | |
| Card Capacity | 10000 |
| Port | |
| RS-485 | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V and 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 port, normally closed by default |
| Network Port | 1 × 10M/100M network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Black plate and silvery frames 12 VDC, 1 A; |
| Power Supply | Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | |
| Accessory | Included: Alarm power ribbon cable, brackets 150.0 mm × 100.0 mm × 25.4 mm (5.91'' × 3.94'' |
| Product Dimensions | × 1.00'') IP65 (silicone sealant is needed, see the quick start |
| Protection | guide) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH) (non-condensing) |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Operating Environment | Outdoor |
| Power Consumption | ≤ 1 W (standby), ≤ 7 W (working) |
| Gross Weight | 510 g (1.12 lb) |
| Anti-corrosion Level | Basic Protection |
| Model | DHI-VTH5221DW-S2 |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Interoperability | ONVIF |
| Network Protocol | IPv4, RTSP, RTP, TCP, UDP, SIP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function | |
| Communication Mode | Full digital Receive and view text information released by the |
| Information Release | management center |
| Leave Videos | Yes (SD card inserted in VTH is needed) Villa: 9 Apartment: 4 |
| Number of Extensions | Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz 8 GB Micro SD card (max SD card capacity |
| Port | |
| RS-485 | 1 |
| Alarm Input | 6 |
| Door Bell | Yes |
| Network Port | 1 × RJ-45 , 10M/100Mbps self-adaptive port |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | White 12 VDC, 1 A |
| Power Supply | Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | |
| Accessory | Alarm ribbon cable (included) 214.0 mm × 140.5 mm × 23.4 mm (8.43" × 5.53" × |
| Product Dimensions | 0.92") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption | ≤3W (standby), ≤7W (working) |
| Gross Weight | 0.69 kg (1.52 lb) |
| Anti-corrosion Level | Basic Protection |
| Ordering Information | |
| Type | Model Description |
| KIT | DHI-KTW01 IP & Wi-Fi Video Intercom KIT |
| Application | |
| Sub VTH | Public net DMSS mobile |
| Main VTH | VTO |
