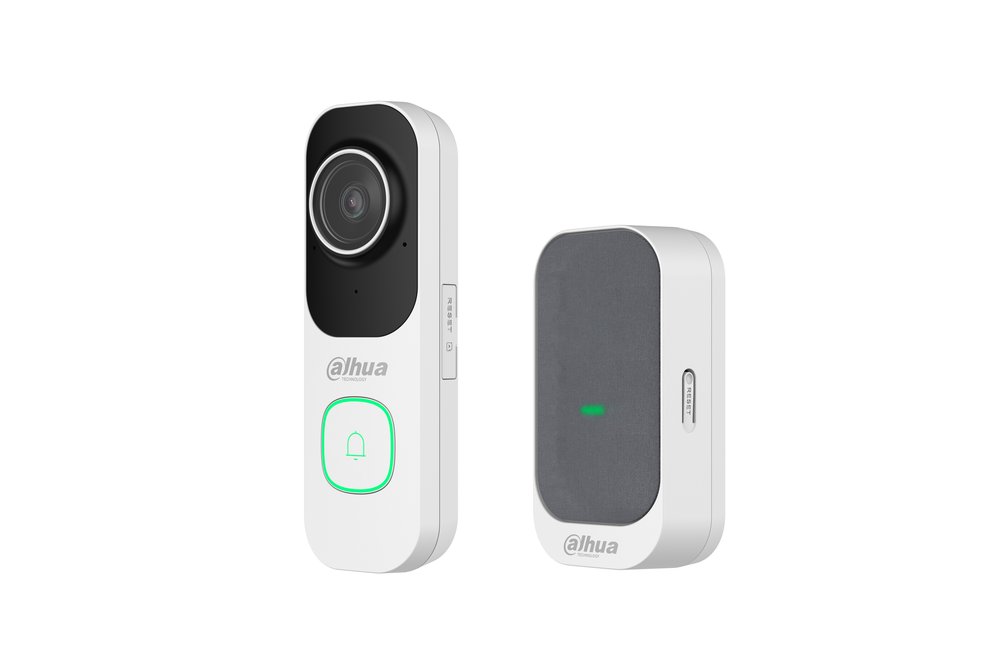

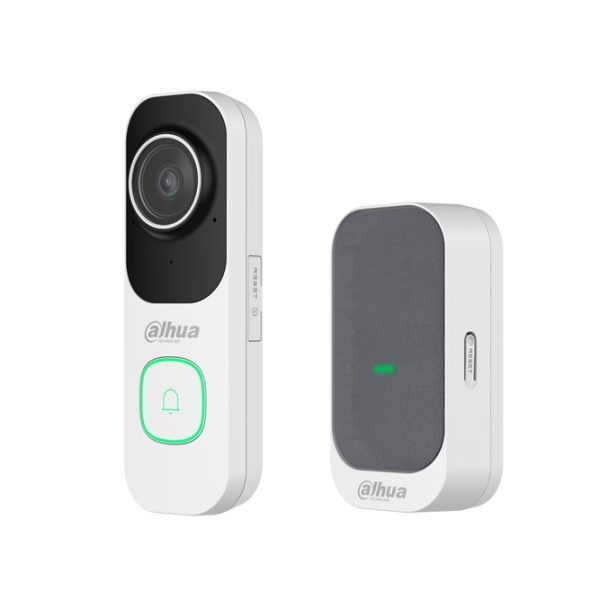

Kit VDP Wi-Fi con VTO bianco e campanello
Kit con posto esterno videocitofonico bianco IP65 e campanello Wi-Fi, videocitofono: sensore telecamera CMOS 1/3'' da 4 MP, IR, 1 tasto di chiamata meccanico, slot micro SD card (max. 256 GB), alimentazione tramite USB (5 Vdc)/morsettiera 10-24 Vdc/14-24 Vac <6.8 W
Datasheet
| H.265 | |
| Clear images with sharp details | technology |
| Ai Human Detection | |
| Proactive bidirectional call anytime, | Focuses on what matters and |
| anywhere | reduces false alarms |
| Wi-Fi 6 | |
| Detects abnormal sounds and sends | Seamless integration of speed and |
| alarms in time | anti-interference |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Illumination Distance | Up to 10 m (32.81 ft) (IR) |
| Illuminator Number | 2 (IR LED) |
| Lens Type | Fixed-focal |
| Focal Length | 2.3 mm |
| Max. Aperture | F2.2 |
| Field of View | H: 120°; V: 66°; D: 143° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio And Video | |
| Video Compression | H.265; H.264; H.264H; H.264B Main stream: 2560 × 1440@(1–15 fps)/920 × 1080@ (1–15 fps)/1280 × 720@(1–15 fps) Sub stream: 640 × 360@(1–15 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. H.264: 32 kbps–8192 kbps; |
| Video Bit Rate | H.265: 32 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Type-C | Micro SD Card Slot |
| Power Ports | Night Light |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Wi-Fi | EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | |
| Management Software | DMSS |
| Mobile Client | Android;iOS |
| Certifications | |
| Power Supply | (10–24 VDC/14–24 VAC, 1.0 A). Basic: 1.7 W (5 VDC); 2.1 W (10–24 VDC); 2.2 W (14–24VAC, active power) |
| Power Consumption | Max.: 5.3 W (5 VDC); 6.8 W (10–24 VDC); 6.8 W (14– 24 VAC, active power) (IR + white light + alarm on) |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP65 |
| Camera Button | One-click Call Button |
| Casing Material | Plastic 135 mm × 45 mm × 24.2 mm (5.31" × 1.77" × 0.95") |
| Product Dimensions | (L × W × H) |
| Net Weight | 0.11 kg (0.24 lb) |
| Audio | |
| Built-in Speaker | Built-in Speaker |
| Network | |
| Management Software | DMSS IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, |
| Wi-Fi | EIRP≤20 dBm |
| Network Update | Yes |
| Power | |
| Power Supply | 100–240 VAC 50/60 Hz |
| Power Consumption | < 5 W |
| Structure | |
| Appearance Color | White Plastic + Grey Cloth Tools: Documents: Power: Installation Kit × 1 Quick Start Guide × 2 Power Cable × 1 |
| × 1 | |
| Net Weight | 0.1 kg (0.22 lb) |
| Gross Weight | 0.2 kg (0.44 lb) |
| Casing Material | Plastic + Cloth Bare machine: 96 mm × 50 mm × 30.3 mm (3.78" × |
| Product Dimensions | 1.97"× 1.19") (L × W × H) 187 mm × 81 mm × 57 mm (7.36" × 3.19" × 2.24") |
| Packaging Dimensions | (L × W × H) |
| Environment | |
| Operating Temperature | –10 °C to +45 °C (14 °F to +113 °F) |
| Operating Humidity | 20%–95% (RH), non-condensing |
