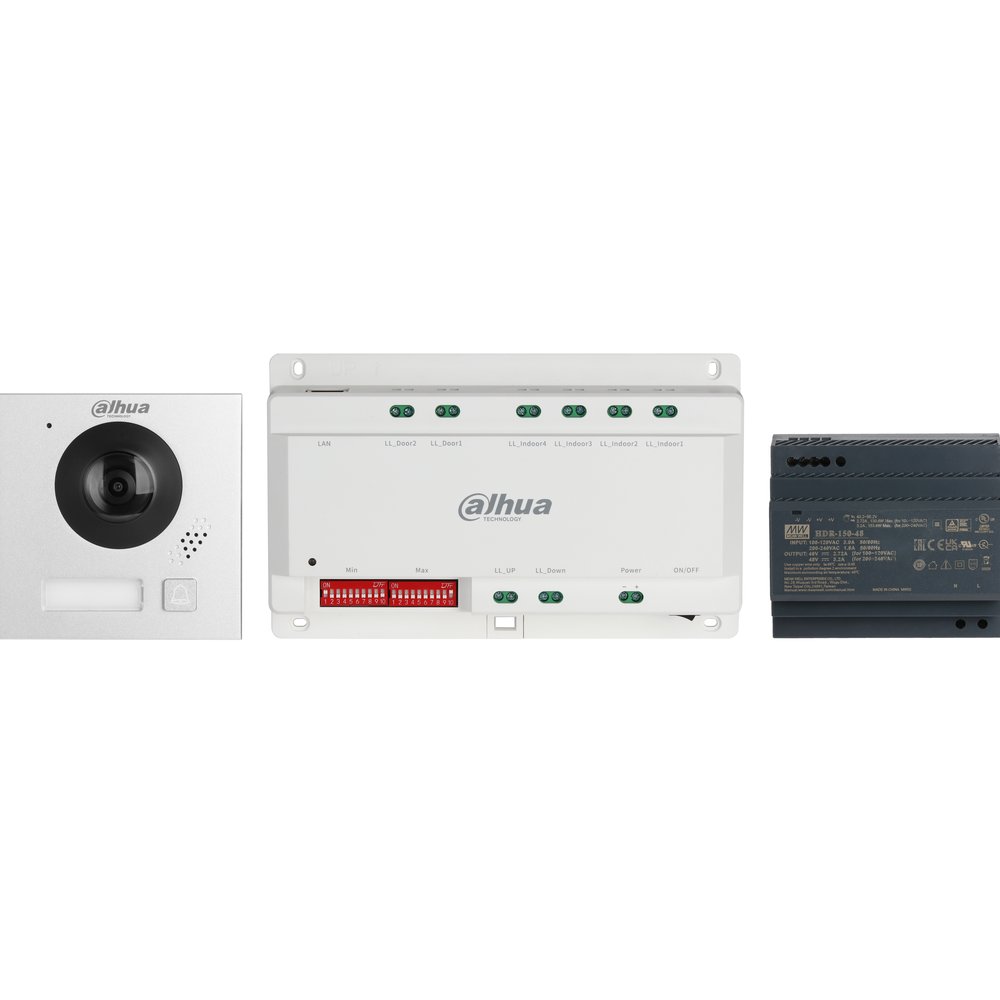

Kit videocitofonico plug&play bifilare apartment che include posto esterno VTO4103F, controller bifilare VTNC2113C, alimentatore VTNP-150-48
Datasheet
Manuali
| System(Vto) | |
| Main Processor | Embedded Linux OS |
| Camera | |
| Field of View | 120 dB |
| WDR | 3D NR |
| Noise Reduction | P: 960 (H) × 576 (V) N: 960 (H) × 480 (V) |
| Video Resolution | P: 25 fps N: 30 fps |
| Video Frame Rate | Auto IR |
| Light Compensation | Auto(ICR)/Color/B/W |
| Day/Night | 1 channel |
| Audio Input | Built-in speaker |
| Audio Output | Two-way audio (half–duplex) |
| Audio Mode | Echo suppression/digital noise reduction |
| Audio Enhancement | Built-in speaker |
| Audio Output | Two-way audio (half–duplex) |
| Audio Mode | Echo suppression/digital noise reduction |
| Function(Vto) | |
| Verification Method | Yes (SD card inserted in VTH is needed) |
| Port(Vto) | |
| RS-485 | 1 channel |
| Alarm Output | 1 port (12 V, 1 A) |
| Power Output | 1 channel |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| General(Vto) | |
| Appearance Color | 2-wire controller |
| Power Supply | Flush Mount; Surface Mount |
| Installation | CE |
| Certifications | |
| Accessory | (optional), panel (optional) |
| Product Dimensions | (H × W × D) IK07; IP65 |
| Protection | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Temperature | 10%–90% |
| Operating Humidity | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Altitude | Outdoor |
| Operating Environment | ≤4 W (standby), ≤12 W (working) |
| Power Consumption | 435 g (0.96 lb) |
| System(Vtnc) | |
| Main Processor | Embedded Linux OS |
| Operating System | IPv4; UDP; DNS; TCP; SSH |
| Function(Vtnc) | |
| Communication Mode | Yes |
| General(Vtnc) | |
| Appearance Color | 48–53 VDC, 4 A |
| Power Supply | Guide Rail Mount |
| Installation | CE |
| Certifications | |
| Product Dimensions | × W × H) –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Temperature | 10%–95%, non-condensing |
| Operating Humidity | 0 m–3,000 m (0 ft–9,842.52 ft)) |
| Operating Altitude | Indoor |
| Operating Environment | ≤4 W (standby), ≤100 W (working) |
| Power Consumption | 647.5 g (1.43 lb) |
| Ordering Information | |
| Type | Model Description DHI-VTO4103F-1 Camera module DHI-VTNC2113C 2-wire Controller DHI-VTO4103F-MB1 One-button module DHI-VTO4103FB-MB1 One-button module(Black) DHI-VTO4103F-MB2 Two-button module DHI-VTO4103FB-MB2 Two-button module(Black) DHI-VTO4103F-MB5 Five-button module DHI-VTO4103FB-MB5 Five-button module(Black) DHI-VTO4103F-ML Indicator module DHI-VTO4103FB-ML Indicator module(Black) DHI-VTO4103F-MK Keyboard module |
| Modules | DHI-VTO4103FB-MK Keyboard module(Black) DHI-VTO4103F-MF Fingerprint module DHI-VTO4103FB-MF Fingerprint module(Black) DHI-VTO4103F-MR Card swiping module(IC) DHI-VTO4103FB-MR Card swiping module(IC)(Black) DHI-VTO4103F-MR1 Card swiping module(ID) DHI-VTO4103FB-MR1 Card swiping module(ID)(Black) DHI-VTO4103F-MI Info module DHI-VTO4103FB-MI Info module(Black) DHI-VTO4103F-MN Blank module DHI-VTO4103FB-MN Blank module(Black) |
| VTM125 | Front panel for 2 modules |
| VTM126 | Front panel for 3 modules |
| VTM25P2 | Front panel for 2 modules(Black) |
| VTM24P3 | Front panel for 3 modules(Black) |
| VTM77 | Front panel for 1 module |
| VTM78 | Front panel for 1 module(Black) Vertical two modules, surface mounted rain |
| VTM52R2 | cover Vertical three module, surface mounted |
| VTM53R3 | rain cover Vertical two*2 modules in parallel, surface |
| VTM54R4 | mounted rain cover Vertical two*3 modules in parallel, surface |
| VTM56R6 | mounted rain cover Vertical two modules with vertical rod, the |
| VTM51R2 | cable goes out, It has the function of receiving the cable Vertical two modules with vertical extended |
| Accessories | |
| VTM61R2 | rod, the cable goes out, It has the function of receiving the cable Vertical two modules, surface mounted rain |
| VTM26R2 | cover(Black) Vertical three module, surface mounted rain |
| VTM27R3 | cover(Black) Vertical two*2 modules in parallel, surface |
| VTM28R4 | mounted rain cover(Black) Vertical two*3 modules in parallel, surface |
| VTM29R6 | mounted rain cover(Black) Vertical two modules with vertical rod, the cable goes out, |
| VTM30R2 | It has the function of receiving the cable(Black) Vertical one module, surface mounted rain |
| VTM75 | cover Vertical one module, surface mounted rain |
| VTM76 | cover(Black) |
| VTM127 | Mounting box for 2 modules |
| VTM128 | Mounting box for 3 modules |
| VTM79 | Mounting box for 1 module |
| Application | |
| DC48V | DC48V DC48V |
