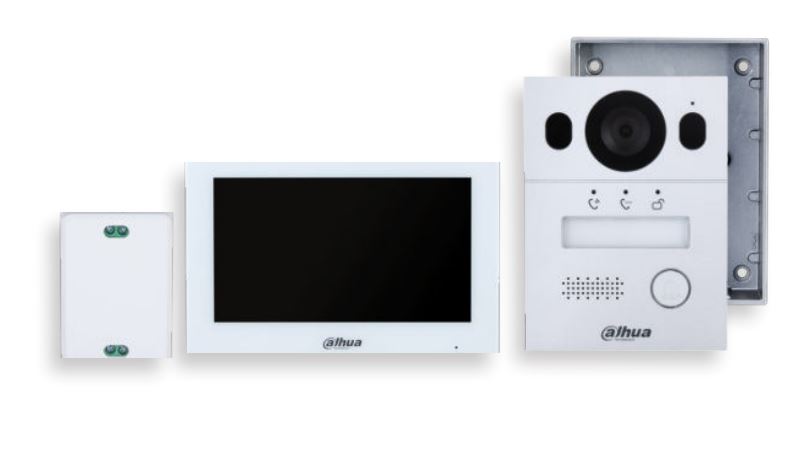

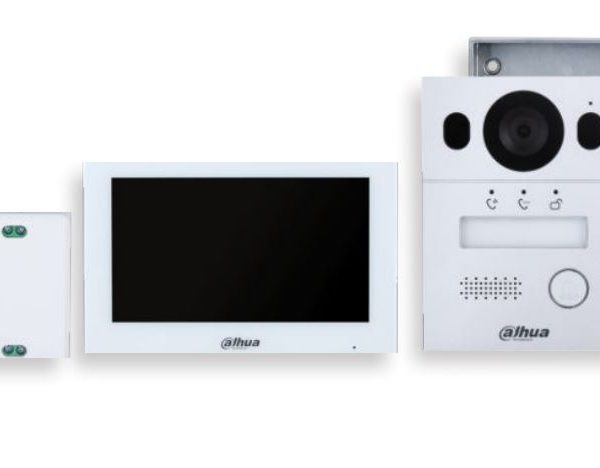

Kit videocitofonico plug&play bifilare villa che include posto esterno VTO2003F, monitor interno bianco VTH5123H-W, controller bifilare VTNC1003C, scatola di montaggio a parete VTM115, 1 alimentatore con cavo
Datasheet
Manuali
| System | |
| Main Processor | Embedded Processor |
| Camera | |
| Field of View | H: 110°; V: 60° |
| WDR | DWDR |
| Noise Reduction | 3D NR P: 960 (H) × 576 (V) |
| Video Resolution | N: 960 (H) × 480 (V) P: 25 fps |
| Video Frame Rate | N: 30 fps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio (half–duplex) |
| Function | |
| Unlock Mode | Remote unlock |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Performance | |
| Casing Material | Aluminum Alloy |
| Port | |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 × 12 VDC output, 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Silver |
| Power Supply | 2-wire controller |
| Installation | Flush mount; surface mount |
| Certifications | |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") IP65 |
| Protection | IK07 |
| Operating Temperature | –40 °C to +60°C (–40 °F to +140 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | 0 m–3000 m (0 ft – 9842.52 ft) |
| Power Consumption | ≤ 1.5 W (standby), ≤ 10 W(working) |
| Gross Weight | 0.502 kg (1.11 lb) |
| Storage Temperature | –40 °C to +70°C (–40 °F to +158 °F) |
| Storage Humidity | 95% (RH), non-condensing |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded operating system |
| Network Protocol | IPv4; UDP; DNS; TCP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker Two-way audio with VTO (half–duplex);Two-way audio |
| Audio Mode | with app (full–duplex) |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz; 16 bit |
| Function | |
| Leave Videos | Yes (SD card needed) Do not disturb period can be set; Do not disturb mode |
| DND Mode | can be set. |
| Number of Extensions | 5 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Max Transmission Power | ≤20 dBm@2,400–2,483.5 MHz |
| Port | |
| RS-485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Power Output | 1 (12 V, 200 mA) |
| Door Bell | Yes (use the alarm input port) |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | White |
| Power Supply | 2-wire controller |
| Installation | Surface Mount |
| Certifications | |
| Product Dimensions | 130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94") |
| Operating Temperature | –10 °C to +55°C (14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH) |
| Operating Altitude | 0 m–3000 m (0 ft – 4265.09 ft) |
| Power Consumption | ≤ 2.5 W (standby), ≤ 10 W(working) |
| Gross Weight | 0.633 kg (1.40 lb) |
| Storage Temperature | –40 °C to +70°C (–40 °F to +158 °F) |
| Storage Humidity | 95% (RH), non-condensing |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | White |
| Power Supply | 48 VDC |
| Certifications | |
| Accessory | Included: Line termination terminal |
| Product Dimensions | 65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91") |
| Operating Temperature | –10 °C to +55°C (14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH) |
| Operating Altitude | 0 m–3000 m (0 ft – 4265.09 ft) |
| Power Consumption | 3.5 W |
| Gross Weight | 0.13 kg (0.29 lb) |
| Ordering Information | |
| Type | Model Description Video Intercom Kit. It includes : DHI-VTO2003F: 2-wire Hybrid Villa Door Station DHI-VTH5123H-W: 2-wire Wi-Fi Hybrid DHI-KTX01(F) Indoor Monitor VTNC1003C: 2-wire Controller VTM114: Flush Mounted Box 1 × Power Adapter 1 × Power Cord |
| Kit | Video Intercom Kit. It includes: DHI-VTO2003F: 2-wire Hybrid Villa Door Station DHI-VTH5123H-W: 2-wire Wi-Fi Hybrid DHI-KTX01(S) Indoor Monitor VTNC1003C: 2-wire Controller VTM115: Surface Mounted Box 1 × Power Adapter 1 × Power Cord |
| Application | |
| VTO2 | DC48V |
