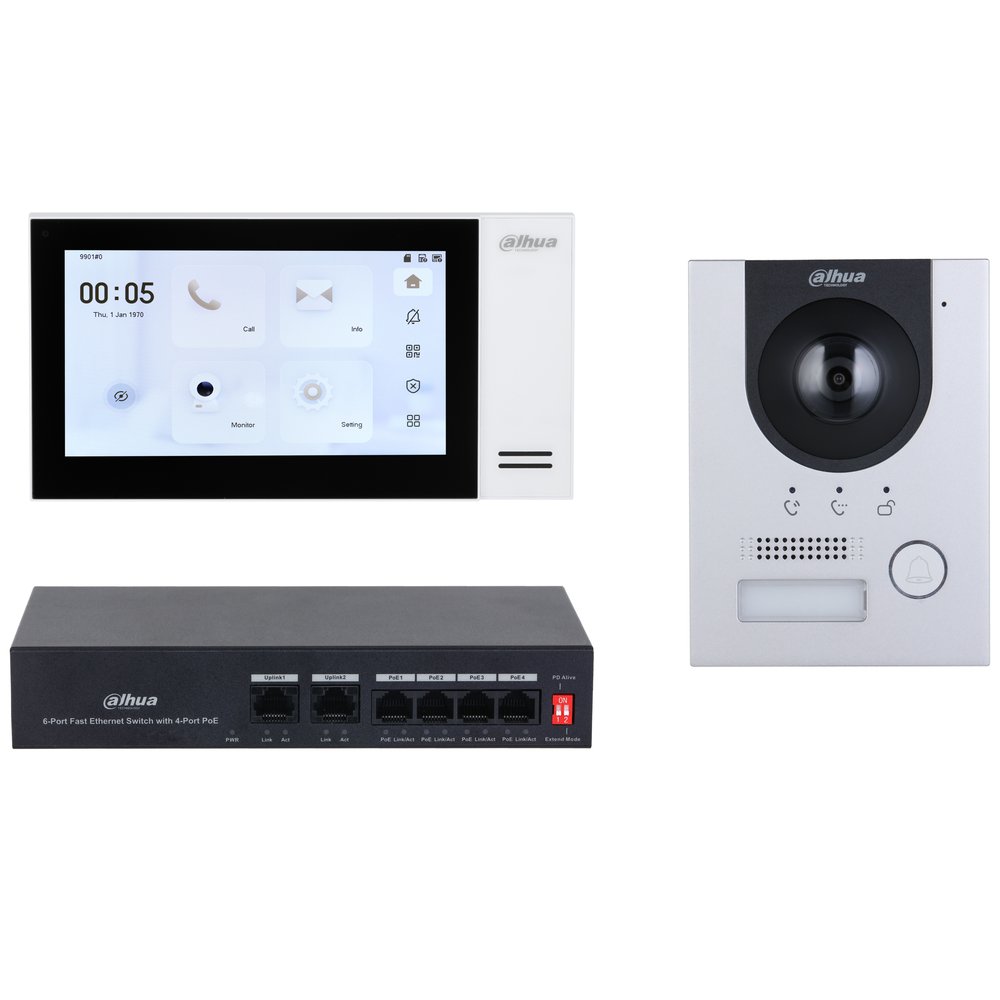

Kit videocitofonico IP che include 1 posto esterno VTO2201F-P, 1 monitor interno con finiture bianche VTH2421FW-P, 1 switch unmanaged con 4 porte PoE PFS3005-4ET-36E, 1 scatola da incasso (fronte e retro) VTM114
Datasheet
| System(Vto) | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System |
| Mechanical | |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4 |
| Camera | |
| Field of View | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265; H.264 Main stream: 720p; WVGA; D1; CIF |
| Video Resolution | Sub stream: 1080p; WVGA; D1; QVGA; CIF |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 kbps to 8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bits |
| Function(Vto) | |
| Communication Mode | Full digital |
| Unlock Mode | Remote Yes (SD card is inserted in the indoor monitor or |
| Leave Videos | door station) |
| Storage | |
| Web Configuration | Yes |
| Performance(Vto) | |
| Casing Material | Aluminum |
| Port(Vto) | |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 port (12 V, 600 mA) |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port, 10/100 Mbps network port |
| Alarm(Vto) | |
| Tamper Alarm | Yes |
| General(Vto) | |
| Appearance Color | Silver 48 VDC, 0.4 A; |
| Power Supply | PoE (802.3af/at) |
| Power Adapter | Optional Surface mount (The surface mount kit comes with |
| Installation | the surface mount bracket) |
| Certifications | |
| Product Dimensions | 1.39") IK08, IP65 (Silicone sealant is needed, see the quick |
| Protection | start guide) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Operating Environment | Outdoor |
| Power Consumption | ≤5 W (standby), ≤7 W (working) |
| Gross Weight | 692 g (1.53 lb) |
| Storage Humidity | 30%–75% (RH) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| System (Vth) | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System |
| Basic (Vth) | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1-channel all-direction microphone |
| Audio Output | Built-in 1.5 W loudspeaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kbps |
| Function (Vth) | |
| Communication Mode | Full digital Supports to receive and view notifications issued |
| Information Release | by center |
| Leave Videos | Yes |
| DND Mode | Do not disturb period can be set |
| Number of Extensions | 9 |
| Port (Vth) | |
| Alarm Input | 6 channel (switch quantity) |
| Alarm Output | 1 channel |
| Network Port | 1 × RJ-45 port |
| Alarm(Vth) | |
| SOS Alarm | Yes |
| Performance(Vth) | |
| Casing Material | PC + ABS |
| General (Vth) | |
| Appearance Color | Black |
| Power Supply | 12 VDC, 1 A, PoE |
| Installation | Surface Mount |
| Certifications | |
| Accessory | Default bracket Default alarm cable 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × |
| Product Dimensions | 0.85") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%-95% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment | Indoor |
| Power Consumption | ≤4 W (standby), ≤6 W (working) |
| Gross Weight | 0.35 kg (0.77 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% (RH), non-condensing |
| Storage Humidity | 30%–75% (RH) |
| System(Networking Device) | |
| Main Processor | Embedded Processor |
| Port(Networking Device) | |
| Network Port | 2 × uplink ports with 10/100 Mbps Base-TX |
| General (Networking Device) | |
| Appearance Color | Black |
| Power Supply | Built-in power supply: 100–240 VAC |
| Certifications | |
| Product Dimensions | 0.93") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Power Consumption | Idling: 0.5 W; Full load: 36 W |
| Gross Weight | 1.11 kg (2.15 lb) |
| Camera | |
| Villa Door Station | DMSS Public net |
