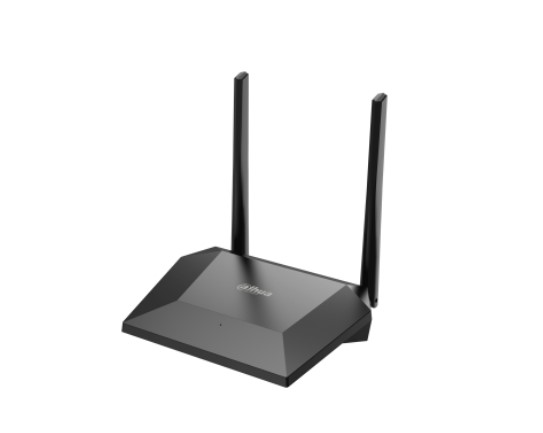

Router wireless 2.4G (IEEE 802.11b/g/n), velocità wireless fino a 300 Mbps, 1 porta WAN 10/100 Mbps, 3 porte LAN 10/100 Mbps, 1 tasto WPS/reset, alimentazione 12 Vdc <3.2 W, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Ethernet Ports | 3 × 10/100 Mbps LAN port |
| Power Supply | 12 VDC, 0.5 A |
| Power Consumption | 3.2 W |
| Indicator Light | 1 × Two-color light indicator |
| Buttons | 1 × WPS/Reset button |
| Wireless Standard | IEEE 802.11b/g/n |
| Performance | |
| Operating Frequency | 2.412 GHz–2.484 GHz |
| Wireless Speed | 2.4 Ghz: 300 Mbps (802.11n) CE EIRP: ≤20 dBm@2400-2483.5 MHz; |
| Max. Output Power | FCC output power: ≤30 dBm@2400-2483.5 MHz |
| Antenna | 2 × External omnidirectional antenna |
| Antenna Gain | 3 dBi Router mode |
| Operating Mode | Repeater mode |
| Channel | 1–13 20 MHz |
| Channel Width | 40 MHz |
| Function | |
| WAN Types | PPPOE Static IP WPA-PSK |
| Encryption Mode | WPA2-PSK WPA2-Mixed |
| Firmware Update | Web update DHCP server |
| DHCP | Address reservation Port Forwarding |
| NAT Forwarding | DMZ UPnP |
| Quality of Service | QoS by device |
| General | |
| Operating Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH) |
| Gross Weight | 0.303 kg (0.67 lb) |
| Net Weight | 0.125 kg (0.28 lb) 172.0 mm × 121.0 mm × 33 mm (6.77" × 4.76" × |
| Product Dimensions | 1.30") (L × W × H) 218.0 mm × 245.0 mm × 45.0 mm ( 8.58" × 9.65" × |
| Packaging Dimensions | 1.77") (L × W × H) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Installation | Desktop mount 1 × Devices 1 × Power adapter |
| Packing List | 1 × Twisted pair cables 1 × User manual 1 × Laws and regulations manual |
