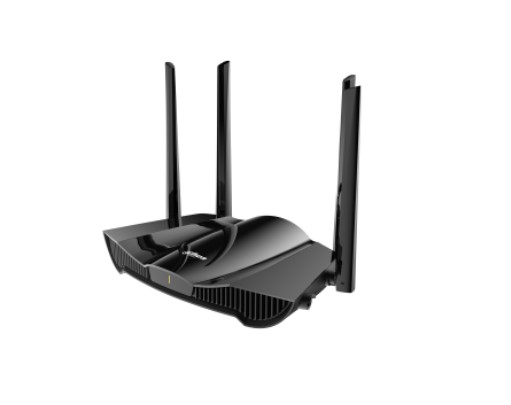

Router wireless 6th gen 2.4/5G, AX3000 (IEEE 802.11 b/g/n/ac/ax), velocità wireless 3 Gbps, 1 porta Gigabit (10/100/1000 Mbps) WAN, 3 porte Gigabit (10/100/1000 Mbps) LAN, tasto reset, tasto WPS, alimentazione 12 Vdc, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| External Port | 3×10/100/1000 Mbps(LAN) |
| Reset Button | 1 |
| WPS Button | 1 |
| Power Consumption | <18W |
| Memory | 256 MB |
| Indicator Light | PWR 2.4 GHz: 802.11 b/g/n/ax |
| Wireless Standard | 5 GHz: 802.11 a/b/g/n/ac/ax |
| Performance | |
| Operating Frequency | 5.170GHz – 5.330 GHz 5.735GHz – 5.835 GHz |
| Wireless Transmission | 2.4 GHz: 574 Mbps |
| Rate | 5 GHz: 2402 Mbps |
| Channel Width | 20/40/80/160 MHz CE EIRP: ≤20 dBm@2400-2483.5 MHz ≤23 dBm@5150-5250 MHz ≤23 dBm@5250-5350 MHz ≤27 dBm@5470-5725 MHz ≤14 dBm@5725-5850 MHz |
| Max. Output Power | FCC output power: ≤27 dBm@2400-2483.5 MHz ≤24 dBm@5150-5250 MHz ≤24 dBm@5250-5350 MHz ≤24 dBm@5470-5725 MHz ≤30 dBm@5725-5850 MHz 2.4 GHz: 5 dBi (±0.5) |
| Antenna Gain | 5 GHz: 5 dBi (±0.5) 5 GHz 11ac VHT80_MCS0: -89 dbm 11ac VHT80_MCS9: -62 dbm 11ax VHT160_MCS0: -88 dbm 11ax VHT160_MCS11: -55 dbm 11ax HE80_MCS0: -89 dbm 11ax HE80_MCS11: -59 dbm 11ax HE160_MCS0: -85 dbm 11ax HE160_MCS11: -55 dbm |
| Receiver Sensitivity | 2.4 GHz 11n HT20_MCS0: -95 dbm 11n HT20_MCS7: -75 dbm 11n HT40_MCS0: -92 dbm 11n HT40_MCS7: -72 dbm 11ax HE20_MCS0: -95 dbm 11ax HE20_MCS11: -65 dbm 11ax HE40_MCS0: -92 dbm 11ax HE40_MCS11: -62 dbm 2.4 GHz; 1-13 |
| Channel | 5 GHz: 36/40/44/48/149/151/153/157/161/165 |
| Connected Wireless | Up to 128 |
| Feature | |
| Operating Mode | Router; repeater WPA-PSK; WPA2-PSK; WPA-PSK/WPA2-PSK; WPA3-PSK; |
| Encryption Mode | WPA2-PSK/WPA3-PSK Web update |
| Firmware Update | WiLynk App update The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| OFDMA | Yes |
| MU-MIMO | 2×2 |
| DHCP | Yes |
| NAT | Mapping based on port |
| QoS | Yes |
| DDNS | Yes |
| Parental Controls | Yes |
| Equipment Management | Web/WiLynk App Firewall; |
| Software | end device management |
| General | |
| Power Supply | 12 VDC,1.5 A |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Gross Weight | 0.86 kg (1.90 lb) |
| Net Weight | 0.36 kg (0.79 lb) 470 mm × 295 mm × 60 mm (18.50" × 11.61" × 2.36") |
| Packaging Dimensions | (L × W × H) 262.2 mm × 150.1 mm × 184.5 mm (10.32" × 5.91" × |
| Product Dimensions | 7.26")(L × W × H) Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV Common mode: 2 kV; |
| Lighting Protection | Differential mode: 0.5 kV Desktop mount; |
| Installation | wall mount 1 × Device 1 × Power adapter |
| Packing List | 1 × Ethernet cable 1 × Quick Start Guide 1 × Legal and Regulatory Information |
