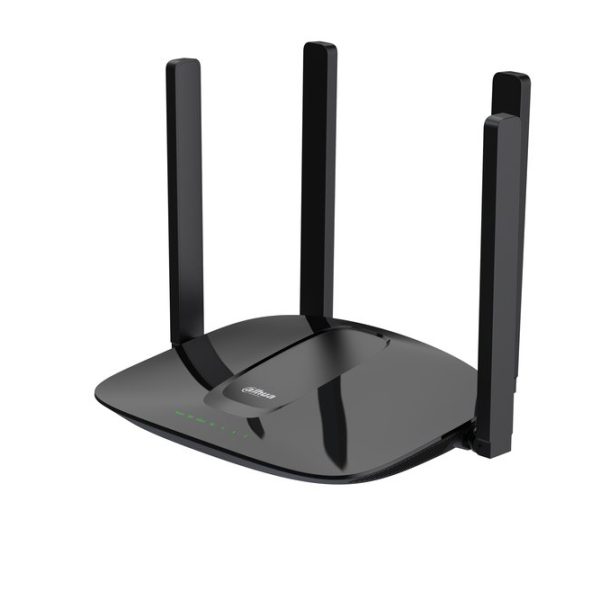

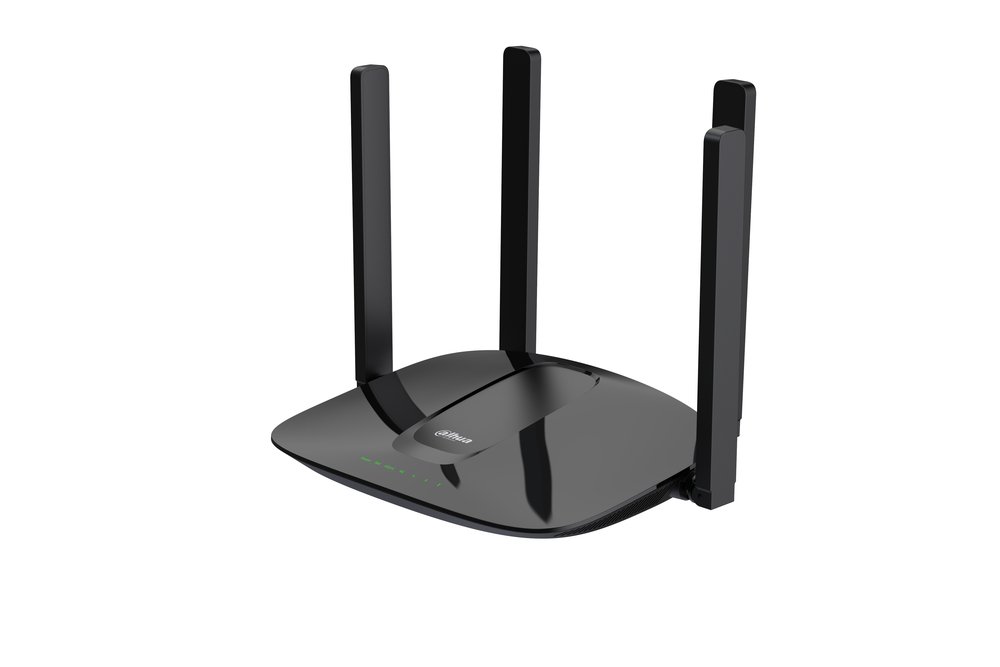

Router wireless 2.4/4G, IEEE 802.11b/g/n, velocità wireless 300 Mbps, 1 porta 10/100 Mbps WAN, 3 porte 10/100 Mbps LAN, tasto reset, tasto eSync, 1 slot Nano SIM, alimentazione 12 Vdc, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Function Slots | 3 × 10/100 Mbps LAN Port |
| External Port | SIM 1 × eSync Button |
| Button | 1 × Reset Button |
| Power Supply | 12 VDC,1 A |
| Memory | DDR 64 MB 1 × Power 1 × Internet |
| Indicator Light | 1 × eSync 1 × SIM card 3 × Cellular signal |
| Performance | |
| Wireless Standard | LTE 4G: 3GPP Release10 2.4 GHz: 300 Mbps LTE FDD: 150 Mbps(DL)/50 Mbps(UL) |
| Wireless Transmission Rate | LTE TDD: 110 Mbps(DL)/10 Mbps(UL) WCDMA: 384 kbps(DL)/384 kbps(UL) 2.4 GHz: 2.400 GHz–2.484 GHz ： LA Cellular Module LTE FDD: B2/4/5/7/12/13/17/25/28/66(1900/ AWS-1/850/2600/700/700/700/1900/700/700 MHz) LTE TDD: B40(2300 MHz) WCDMA: B2/4/5(1900/AWS-1/850 MHz) |
| Operating Frequency | 2.4 GHz: 2.400 GHz–2.484 GHz EU Cellular Module: LTE FDD: B1/3/7/8/20/28 (2100/1800/2600/900/800/700 MHz) LTE TDD: B40(2300 MHz) WCDMA: B1/8(2100/900 MHz) |
| Channel Width | 2.4 GHz: 20/40 MHz |
| Max. Output Power | CE EIRP: ≤20dBm@2400-2483.5MHz |
| Transmission Distance | 15 m (49.21 ft) |
| Optimal Transmission | 7 m (22.97 ft) |
| Connected Wireless | 2.4 GHz: 32 |
| Function | |
| Equipment Management | Web; App HTTP;TCP/IP;IPv4;UDP;NTP;DHCP;DNS;DDNS;IPv6;UPnP; |
| Network Protocol | ICMP;IGMP;ARP;TCP;WMM;802.11b;802.11g;802.11n; MAC Filter |
| Network Access | PPPoE; Dynamic IP; Static IP; APN (4G) |
| Operating Mode | Wireless Router Mode |
| Encryption Mode | WPA; WPA2; WPA3; WPA/WPA2; WPA2/WPA3 |
| Security Mechanism | MAC filtering |
| OFDMA | Yes |
| MU-MIMO | Yes |
| DHCP | Yes |
| NAT | Port mapping |
| VPN | No |
| QoS | No |
| DDNS | Yes |
| MESH | No |
| Firmware Update | Web update;App update Device Management: Quick Setup Wizard; System Management; System Log; Factory Reset; Backup Config; Config Restore; DMZ; Port Mapping; Diagnosis&Restart; Smart Control of LED RF Management: Wireless mode settings; Wireless |
| Software | bandwidth settings; Wireless channel settings; Transmission power settings; SSID Broadcast Network Type: Guest Wi-Fi; Host Wi-Fi; Wireless timing; End Device Management: WLAN MAC address filtering; Parental Control; End Device Name Config |
| General | |
| Power Consumption | Idling: 2.8 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Net Weight | 0.31 kg (0.68 lb) UK: 0.75 kg (1.50 lb) |
| Gross Weight | US: 0.68 kg (1.50 lb) EU: 0.68 kg (1.50 lb) 227 mm × 155 mm × 173 mm (8.49" × 6.10" × 6.81") (L |
| Product Dimensions | × W × H) UK: 290 mm × 270 mm × 55 mm (11.42" × 10.63" × 2.17") (L × W × H) US: 290 mm × 270 mm × 55 mm (11.42" × 10.63" × |
| Packaging Dimensions | 2.17") (L × W × H) EU: 290 mm × 270 mm × 55 mm (11.42" × 10.63" × 2.17") (L × W × H) Air discharge: 8 kV |
| Statics Protection | Contact discharge: 4 kV Common mode: 2 kV |
| Lightning Protection | Differential mode: 1 kV |
| Installation | Desktop mount; wall mount |
| Certifications | |
| Packing List | 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Network Cable |
| Ordering Information | |
| Type | Model Description |
| Wireless Router | DH-MR403 N300 4G Wireless Router |
