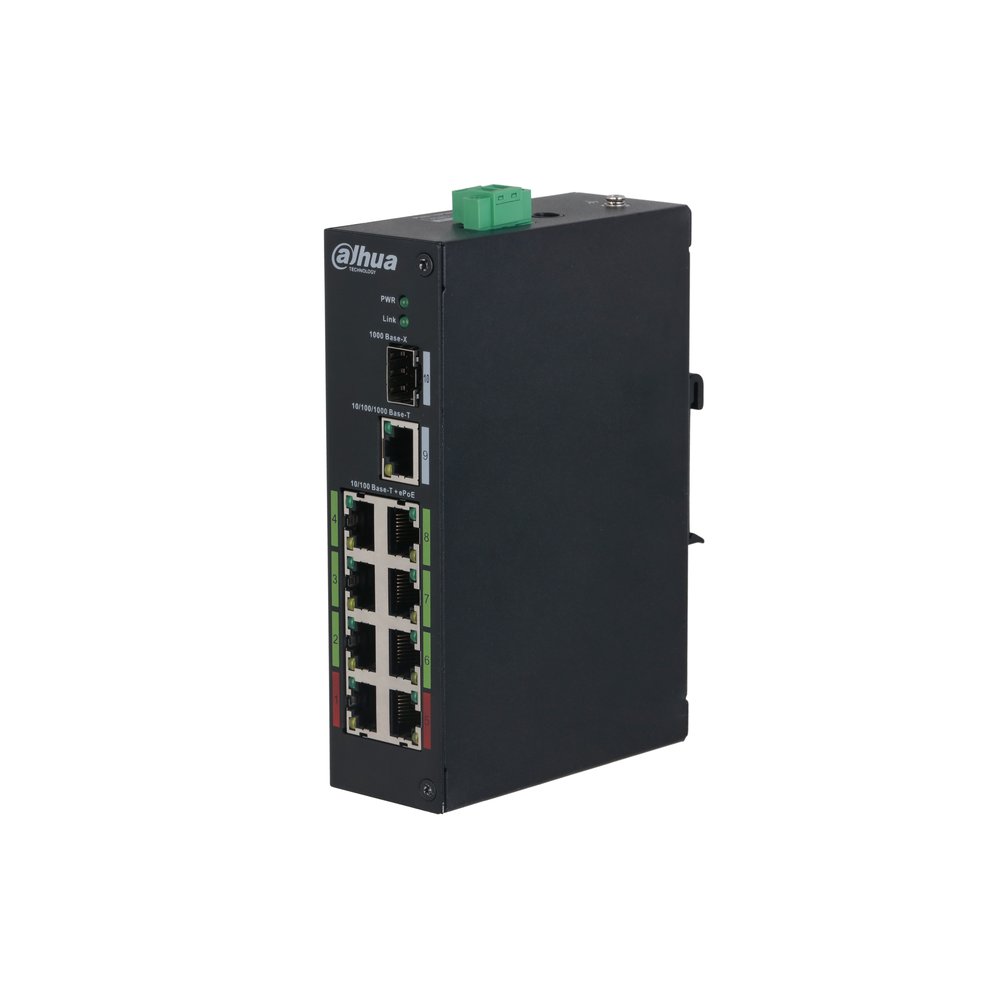

Switch unmanaged con 8 porte ePoE 10/100 Mbps <120 W, capacità switching 8.8 Gbps, rate inoltro parchetti 4.17 Mpps, 2 red port 90 W, 48~57 Vdc, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps Port 1-8: 8 × RJ-45 10/100 Mbps |
| Description of Function | Port 9: 1 × RJ-45 10/100/1000 Mbps |
| Slots | Port 10: 1 × SFP 1000 Mbps |
| Power Supply | External power supply: 54 VDC, 2.22 A |
| Operating Temperature | –30 °C to +65 °C (+22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing Idling: 3.2 W |
| Power Consumption | Full load: 120 W |
| Performance | |
| Layer | Layer 2 |
| Management Type | No |
| Smart Managed Switch | No |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Packet Buffer Size | 2.75 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K Byte |
| Communication Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab/z,IEEE802.3X |
| Feature | |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt Port 1,5 ≤90 W |
| PoE Power | Port 2,3,4,6,7,8 ≤30 W Total ≤120 W |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| ePoE | Yes |
| Long Distance PoE | Yes |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lighting Protection | Differential mode: 2 kV |
| Net Weight | 0.6 kg (1.32 lb) |
| Gross Weight | 1.9 kg (4.18 lb) |
| Product Dimensions | (5.91" × 3.94" × 1.65") (L × W × H) 265 mm × 238 mm × 76 mm |
| Packaging Dimensions | (10.43" × 9.37" × 1.65") (L × W × H) |
| Casing Material | Iron |
| Installation | Rack mount; DIN guide rail mount |
| Ordering Information | |
| Type | Model 1.25G 1310/1550nm,20km,LC, Single- GSFP-1310T-20-SMF mode 1.25G 1550/1310nm,20km,LC, Single- GSFP-1310R-20-SMF mode |
| SFP module | 1.25G 1310nm,20km,LC, Single-mode GSFP-1310-20-SMF 1.25G 850nm,550m,LC, Multi-mode GSFP-850-MMF |
| EoC | 1*10/100 Mbps Base-TX + 1*BNC RG59 coaxial cable: |
| (Ethernet | LR1002 400m/100Mbps,1000m/10Mbps |
| Network | |
| Cable | Communication Max Load Max Load Load |
| Operating | |
| Length | Bandwidth Capacity Capacity Capacity Mode |
| (m) | (Mbps) (W) (W) (W) 53 71.3 IEEE/E100 |
| 100 | 100 25.5 47 52 E100 |
| 200 | 100 25.5 32 40 E100 |
| 300 | 100 25.5 26 30 E10 |
| 400 | 10 23 20 25 E10 |
| 500 | 10 20 13 13 E10 |
| 800 | 10 13 |
| CAT6, max. DC resistance < 10 Ω/100 m. | PoE Max. Hi-PoE Max. Communication |
| Network | |
| Cable | Load Load Capacity Bandwidth Operating Mode |
| Length (m) | Capacity (W) (Mbps) (W) 52 IEEE/E100 |
| 100 | 100 25.5 48 E100 |
| 200 | 100 25.5 28 E100 |
| 300 | 100 22 20 E100 |
| 400 | 100 15 12 E10 |
| 500 | 10 12 8 E10 |
| 800 | 10 8 6 E10 |
| 1000 | 10 6 |
| Led Indicator | |
| IEEE mode | Normally on |
| E100 | On for 3 seconds, off for 1 second |
| E10 | On for 1 second, off for 1 second |
| Dimensions (Mm[Inch]) | |
| 100.0 | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
