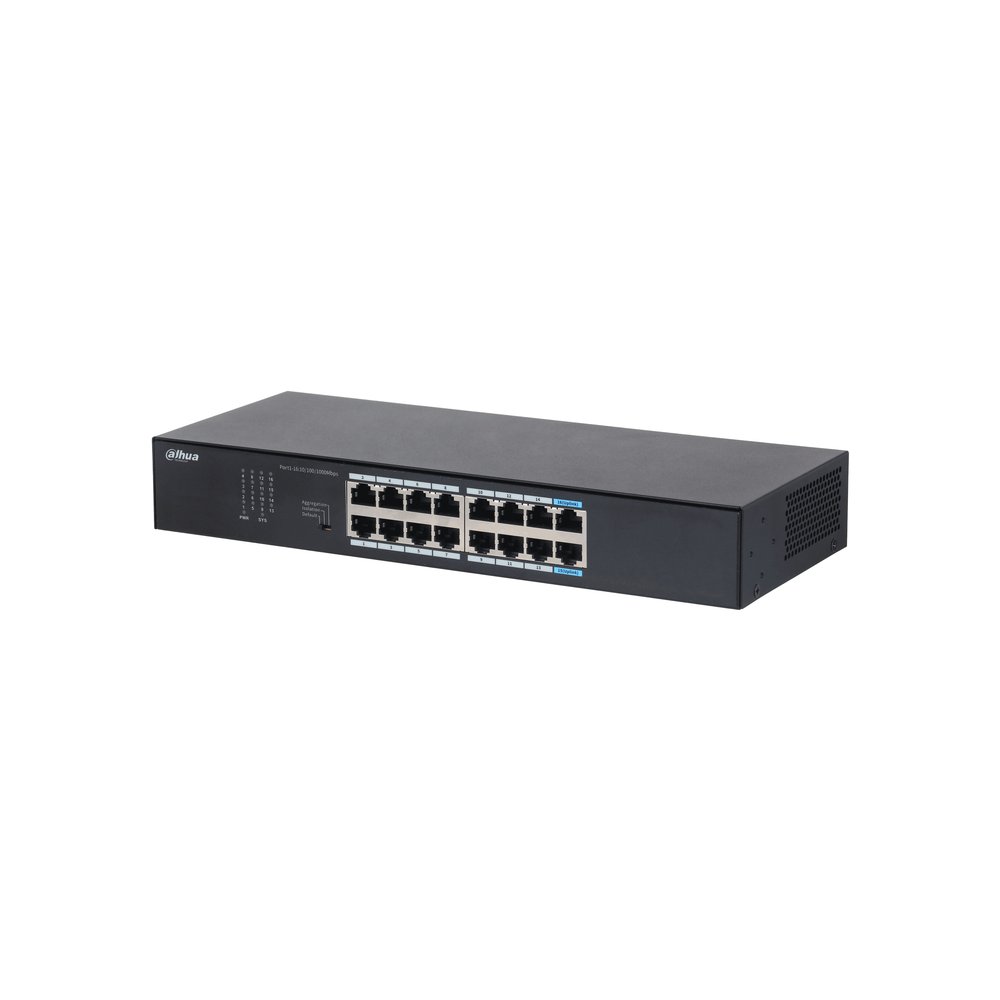

Switch unmanaged con 16 porte Gigabit (10/100/1000 Mbps, 2 uplink), capacità switching 32 Gbps, rate inoltro pacchetti 23.808 Mpps, 100~240 Vac, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.808 Mpps |
| Description of Function | Port 1-14: 14 × RJ-45 10/100/1000 Mbps; |
| Slots | Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A Idling: 2.2 W; |
| Power Consumption | Full load: 7.8 W Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV Common mode: 2 kV; |
| Lightning Protection | Differential mode: 0.5 kV |
| Net Weight | 0.74 kg (1.63 lb) |
| Gross Weight | 1.297 kg (2.86 lb) 294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L |
| Product Dimensions | × W × H) 353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × |
| Packaging Dimensions | W × H) |
| Casing Material | Sheet Metal |
| Installation | Desktop mount; wall mount; rack mount |
| Hardware | |
| DIP Switch | the uplink ports 15-16. These uplink ports can also send their traffic to 1-14. Port aggregation: Aggregates uplink ports. |
| Performance | |
| Packet Buffer Size | 8.4 Mbit |
| Jumbo Frame | 12K Byte |
| MAC Table Size | 16K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3ad |
| Feature | |
| Link Aggregation | Static link aggregation |
| Port Feature | IEEE 802.3x traffic control |
| IEEE 802.3x Flow Control | Yes |
| General | |
| Packing List | 1 × User Manual; |
| Ordering Information | |
| Type | Model Description 16-Port Unmanaged |
| Ethernet Switch | DH-S3016-16GT Gigabit Switch |
