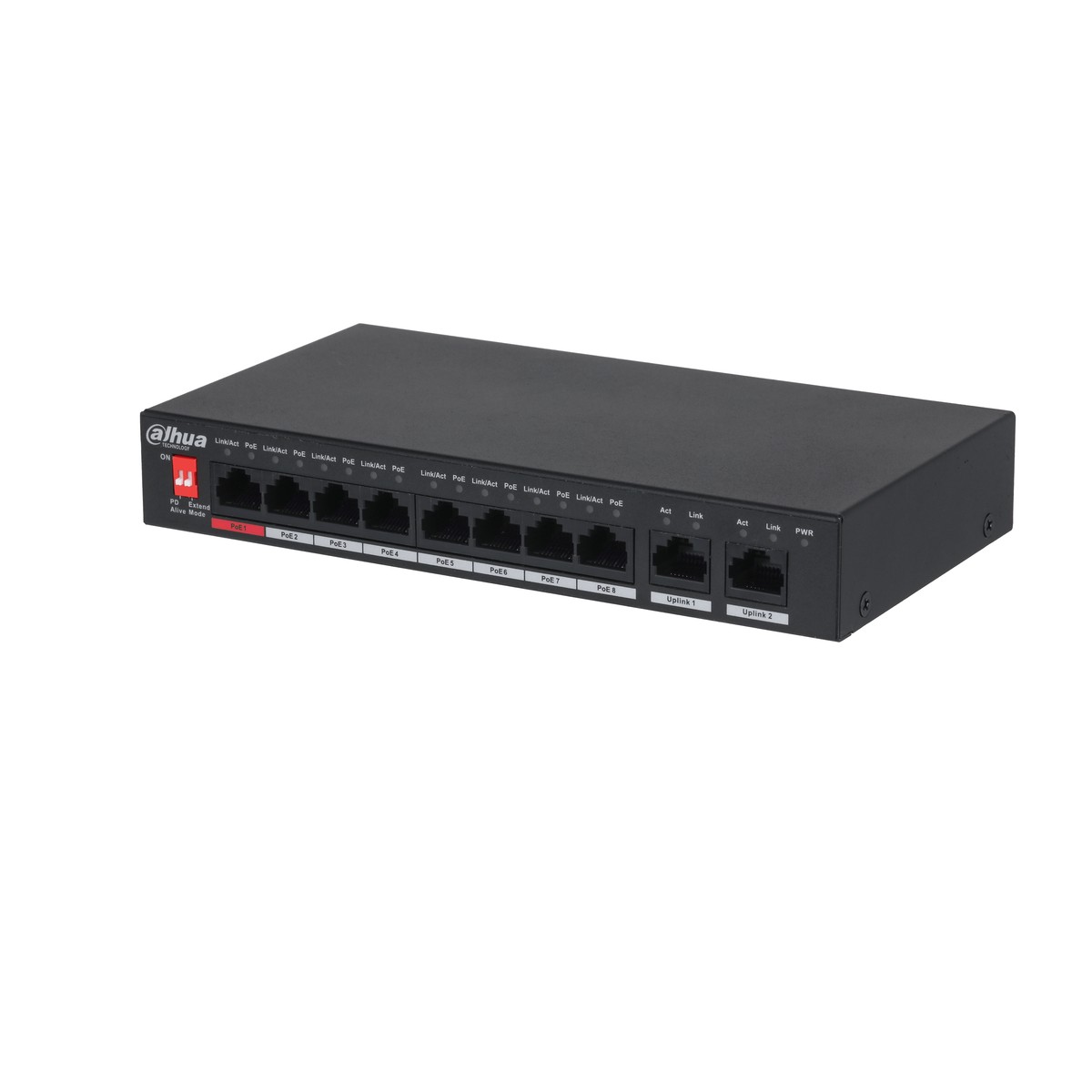

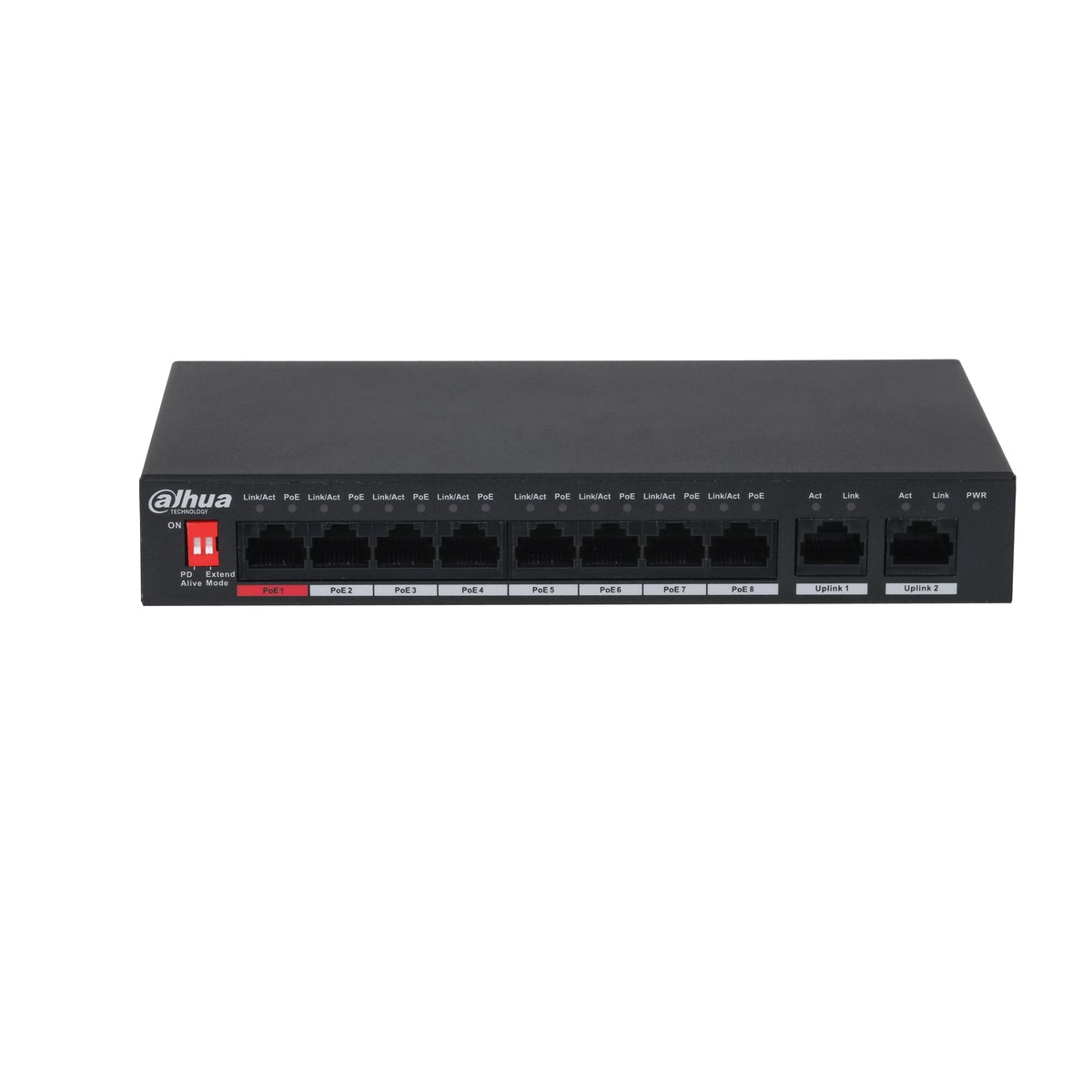

Switch desktop non gestito a 10 porte con 8 porte PoE 10/100 Mbps e 2 uplink Gigabit. I dati si riferiscono alla versione hardware V2.0.
- 8 porte RJ-45 10/100 Mbps PoE e 2 porte RJ-45 10/100/1000 Mbps di uplink
- Standard IEEE 802.3af/at/bt e Hi-PoE: porta 1 (rossa) fino a 90 W, porte 2–8 fino a 30 W, potenza totale 96 W
- Modalità Extend: PoE su lunga distanza fino a 250 m
- Gestione intelligente della potenza PoE e PoE watchdog; alimentazione PoE su tutti gli 8 pin del connettore
- Capacità di commutazione 5,6 Gbps, tabella MAC 8K
- Alimentazione 48–57 VDC; esercizio da −10 °C a +55 °C
- Dimensioni 190 × 100 × 30 mm, peso netto 0,50 kg
Datasheet
| Hardware | |
| Data Transmission Port | Port 1–8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) |

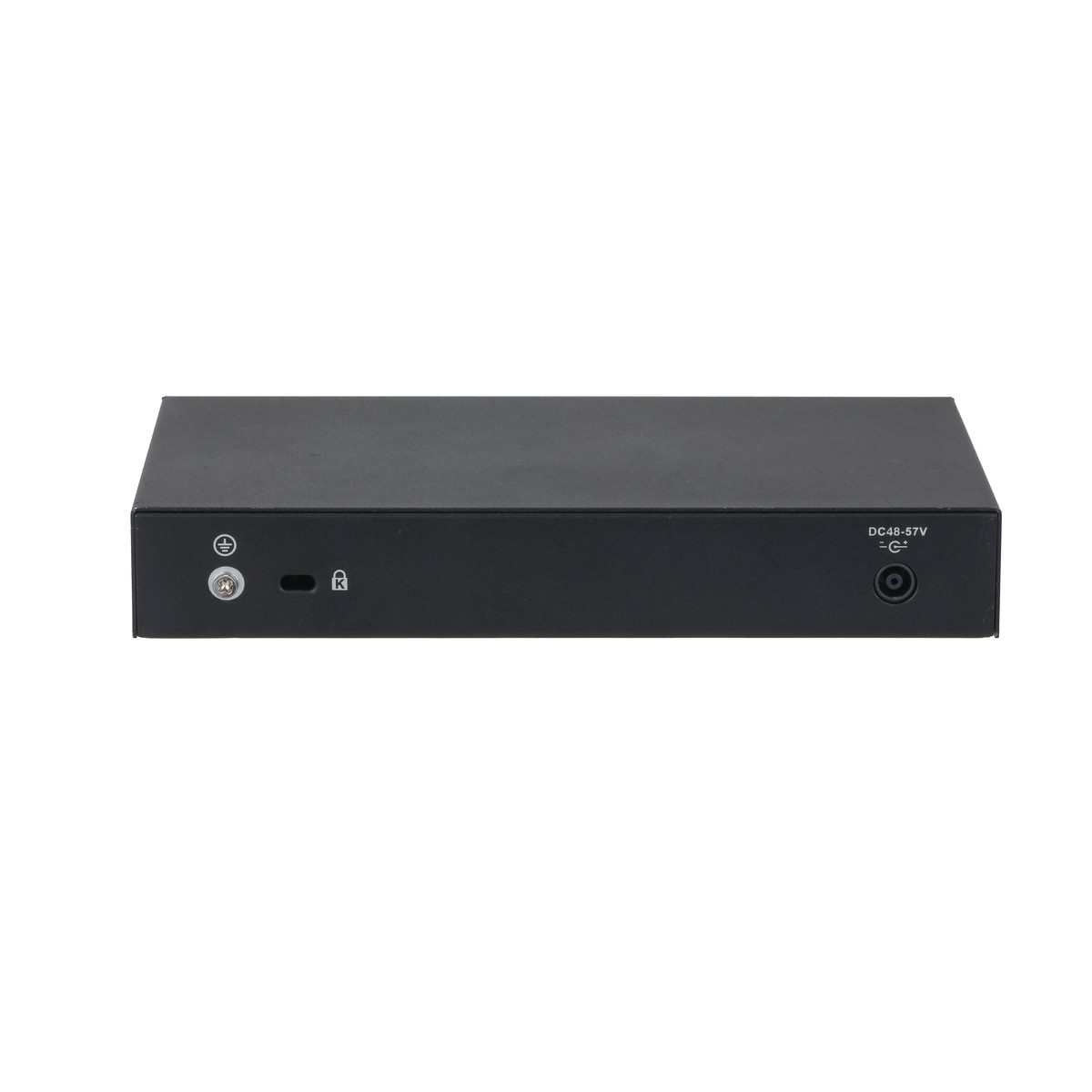

| Power Supply | 48 V – 57 V DC |
| Operating Temperature | –10 °C to +55 °C (+14°F to +131°F) |
| Operating Humidity | 5% – 95% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4°F to +158°F) |
| Storage Humidity | 5% – 95% (RH) |
| Power Consumption | Idling: 3 W; Full load: 96 W |
| Performance | |
| Switching Capacity | 5.60 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Memory | 4 Mbit |
| MAC Table Size | 8K |
| Communication Standard | IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x |
| PoE | |
| PoE Standard | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1 ≤ 90 W, Port 2-8 ≤30 W, total ≤ 96 W |
| Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m long distance PoE transmission |
| PoE Watchdog | Yes |
| General | |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Thunder-proof | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 1.32 kg (2.91 lb) |
| Product Dimensions | 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18") |
