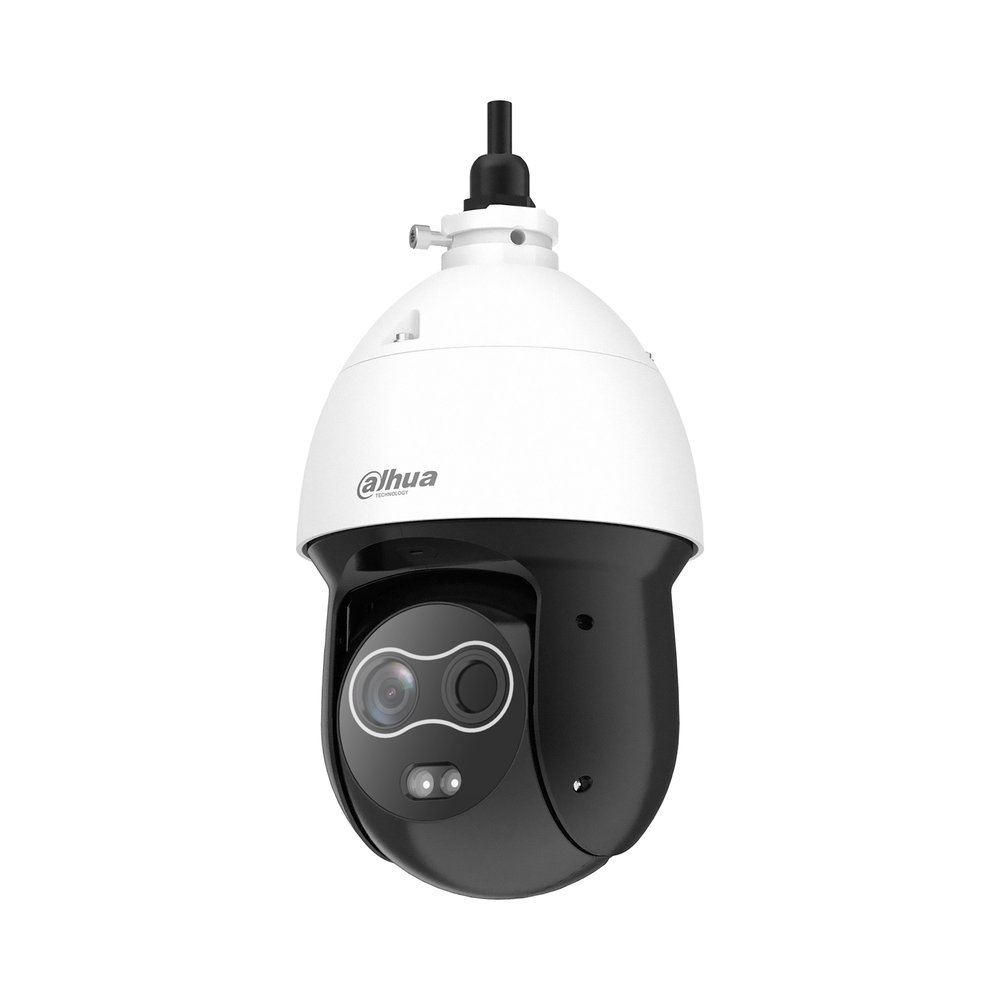

Speed dome termica ibrida IP AI da interno/esterno IP66, risoluzione termica 256×192 a 25fps, sensibilità 40 mK, ottica termica 10 mm, spettro visivo 8~14 µm, sensore standard 1/2.7" 4 MP, ottica standard 12 mm, ICR, portata illuminazione fino a 50 m, PAN 360° endless TILT -15°~+90° con 300 preset, 5 scan, 8 tour e 5 pattern, 1 porta LAN 10/100 Mbps, 1 porta RS485, 1 porta CVBS/BNC, 2 ingressi e 1 uscita allarme, 1 ingresso e 1 uscita audio, IVS (protezione perimetrale), rilevamento calore, traccia punti caldi/freddi, classificazione persone/veicoli, rilevamento fumatore, rilevamento utilizzo cellulare, micro SD card (256 GB), alimentazione 12 Vdc/PoE+ <19.6 W
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤40 mK@f/1.0 |
| Focal Length | 3.5 mm; 7 mm; 10 mm 3.5 mm: H: 50.6°; V: 37.8° |
| Field of View | 7 mm: H: 24°; V: 18° 10 mm: H: 17.3° V: 13.1° |
| Thermal Focus Control | Fixed-focal 3.5 mm: 0.5 m (1.64 ft) |
| Close Focus Distance | 7 mm: 1 m (3.28 ft) 10 mm: 1 m (3.28 ft) |
| Digital Detail Enhancement | Yes |
| Digital Zoom | 16 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180° 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/ |
| Color Palettes | painting/pomegranate/emerald /spring/summer/ autumn/winter) |
| Visible | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2336 (H) × 1752 (V) |
| Pixel | 4 MP |
| Horizontal Definition | ≥1600 TVL Color: 0.05 lux |
| Min. Illumination | B/W: 0.005 lux 0 lux (IR on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | ≥55 dB Auto; indoor; outdoor; tracking; manual; natural; street |
| White Balance | lamp |
| Defog | |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180° |
| Exposure Compensation | Yes |
| Visible Focus Control | Fixed-focal |
| Focal Length | 4 mm; 8 mm; 12 mm 4 mm: H: 71.2°; V: 52° |
| Field of View | 8 mm: H: 33.4°; V: 25° 12 mm: H: 22° V: 16.6° 4 mm: 1 m (3.28 ft) |
| Close Focus Distance | 8 mm: 2.5 m (8.20 ft) 12 mm: 2.5 m (8.20 ft) 4 mm: F1.6 |
| Aperture | 8 mm: F2.0 12 mm: F2.0 |
| Illuminator On/Off Control | Auto/Manual 4 mm: 35 m (114.83 ft) |
| Illumination Distance | 8 mm: 50 m (164.04 ft) 12 mm: 50 m (164.04 ft) |
| Audio And Video | |
| Video Compression | H.265; H.264; H.264H Thermal: Main stream: 1.3M (1280 × 960); XVGA (1024 × 768); VGA (640 ×480/256 × 192); 1280 × 960 (default) Sub stream: VGA (640 ×480/256 × 192); 256 × 192 (default) |
| Resolution | Visible: Main stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (default) Sub stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (default) Thermal: Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default |
| Video Frame Rate | Visible: Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM |
| Image Encoding Format | JPEG |
| Ptz | |
| Pan/Tilt Range | Tilt: –15° to +90° Pan: 0.1°/s –200°/s |
| Manual Control Speed | Tilt: 0.1°/s –120°/s Pan: 240°/s |
| Preset Speed | Tilt: 200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Privacy Masking | 4 areas in the same view |
| Idle Motion | Activate Preset/Scan/Tour/Pattern/Pan |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; |
| Network Protocol | FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Region of Interest (RoI) | Yes |
| Storage | |
| Micro SD Card (Max.) | 256 GB |
| Interoperability | ONVIF; CGI; Dahua SDK IE: IE 9 and later (Edge is not supported) |
| Browser | Chrome: 42 and earlier Firefox: 42 and earlier |
| User/Host | Up to 10 (total bandwidth: 100 MB) Authorized username and password; attached MAC |
| Security | address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 10 users; supports multi-level user permissions (2 |
| User Management | levels): management group and user group Network disconnection detection; IP conflict detection; |
| Malfunction Detection | memory card state detection; memory space detection |
| Fusion Mode | Warm color; cold color; fuse with iron oxide red |
| PIP | Yes (Intelligence automatically turns off when PIP is on) |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| IVS (Perimeter Protection) | Yes. Supports tripwire and intrusion. |
| Target Distinction | Human/Vehicle Classification |
| Smoking Detection | Yes |
| Call Detection | Yes |
| Port | |
| Analog Output | 1-ch CVBS output, BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 1 |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12 VDC ± 20%, PoE+ (802.3at) Basic: <10.4 W (12 VDC); 10.5 W (PoE) |
| Power Consumption | Max: < 19.4 W (12 VDC); 19.6 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP66 Surge protection: 6 kV |
| Reliability | Air discharge of 15 kV Contact discharge of 8 kV |
| Structure | |
| Product Dimensions | 295 mm × Φ160 mm (11.61" × Φ6.30") 267 mm × 267 mm × 437 mm (10.51" × 10.51" × |
| Packaging Dimensions | 17.20") (W × L × H) |
| Net Weight | ≤3.2 kg (7.05 lb) |
| Gross Weight | ≤4.7 kg (10.36 lb) |
| Heat Detection Distance | |
| Focal Length | Max. Distance |
| 3.5 mm | 45 m (147.64 ft) |
| 7 mm | 86 m (282.15 ft) |
| 10 mm | 123 m (403.54 ft) |
| Focal Length | Distance (Vehicle) Distance (Human) |
| 3.5 mm | 73.5 m (241.14 ft) 24.5 m (80.38 ft) |
| 7 mm | 147 m (482.28 ft) 49 m (160.76 ft) |
| 10 mm | 210 m (688.98 ft) 70 m (229.66 ft) |
| Dri Distance | |
| Focal Length | Distance Distance Distance ① ② ③ Vehicle: 447 m Vehicle: 112 m Vehicle: 56 m (1,466.54 ft); (367.45 ft); (183.73 ft); |
| 3.5 mm | Human: 146 m Human: 36 m Human: 18 m (479.00 ft) (118.11 ft) (59.06 ft) Vehicle: 894 m Vehicle: 224 m Vehicle: 112 m (2,933.07 ft); (734.91 ft); (367.45 ft); |
| 7 mm | Human: 292 m Human: 73 m Human: 36 m (958.01 ft) (239.50 ft) (118.11 ft) Vehicle: 1,278 m Vehicle: 319 m Vehicle: 160 m (4,192.91 ft); (1,046.59 ft); (524.93 ft); |
| 10 mm | Human: 417 m Human: 104 m Human: 52 m (1,368.11 ft) (341.21 ft) (170.60 ft) |
| Ordering Information | |
| Type | Model Description DHI-TPC-SD2241- Thermal: 3.5 mm; Visible: 4 mm B3F4-DW-S2 |
| Optional: | |
| PFB305W + PFA150 | PFB305W + PFA151 PFA111 + PFB300C |
| Wall Mount Braket + | Wall Mount Braket + Joint Connector + Hang |
| pole Mount Bracket | Corner Mount Bracket Mount Bracket (Hang |
| (Pole Mount) | (Corner Mount) Mount) |
