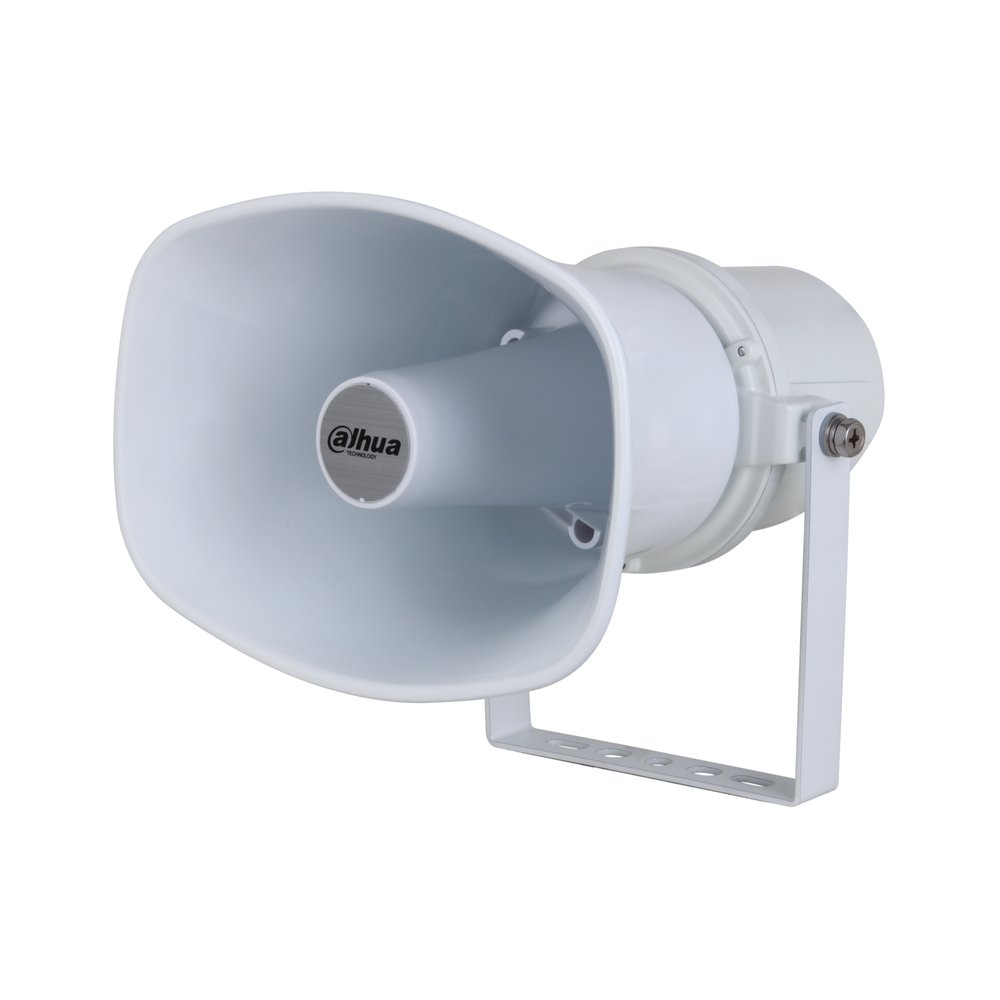

Speaker IP in alluminio aeronautico IP67, microfono integrato: portata 8 m, risposta in frequenza 50 Hz~12 KHz, input 15 mV, altoparlante: livello pressione acustica max. 120 dB, SNR ≥75 dB, risposta in frequenza 250 Hz~16 KHz, output 15 W, amplificatore integrato: 15 W, 8 Ω, porta Ethernet RJ45, 512 MB di archiviazione e slot TF card, alimentazione 24 Vdc/PoE+ <15 W
| Microphone | |
| Type | Built-in one microphone switch |
| Pickup Distance | ≥3m |
| Frequency Response | 50 Hz–12 kHz |
| MIC Input | 15 mV |
| Speaker | |
| Frequency Response | 250 Hz–16 kHz |
| Max Sound Pressure Level | 108 dB |
| SNR | 75 dB |
| Coverage Pattern | H: 70°; V: 100° |
| Speaker Output | 15 W |
| Amplifier | |
| Amplifier Description | Built-in 15 W and 8Ω amplifier |
| Network | |
| Network Port | 1 RJ45 port TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, |
| Network Protocol | ONVIF |
| General | |
| Audio Protocol | MP3, G.711a/u |
| Storage | |
| Power Input | 24 VDC, 1 A, 24 W; POE: IEEE 802.3at, Class4 |
| Power Consumption | 15 W |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 60%–95% (RH), non-condensing |
| Protection Level | IP67, IK10 |
| Certifications | |
| Product Dimensions | × W × H) 240 mm × 200 mm × 285 mm (9.45" × 7.87" × 11.22") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | 1.8 kg (3.97 lb) |
| Gross Weight | 2.5 kg (5.51 lb) |
| Ordering Information | |
| Type | Model Description |
| IP Speaker | DHI-VCS-SH30 IP Speaker |
