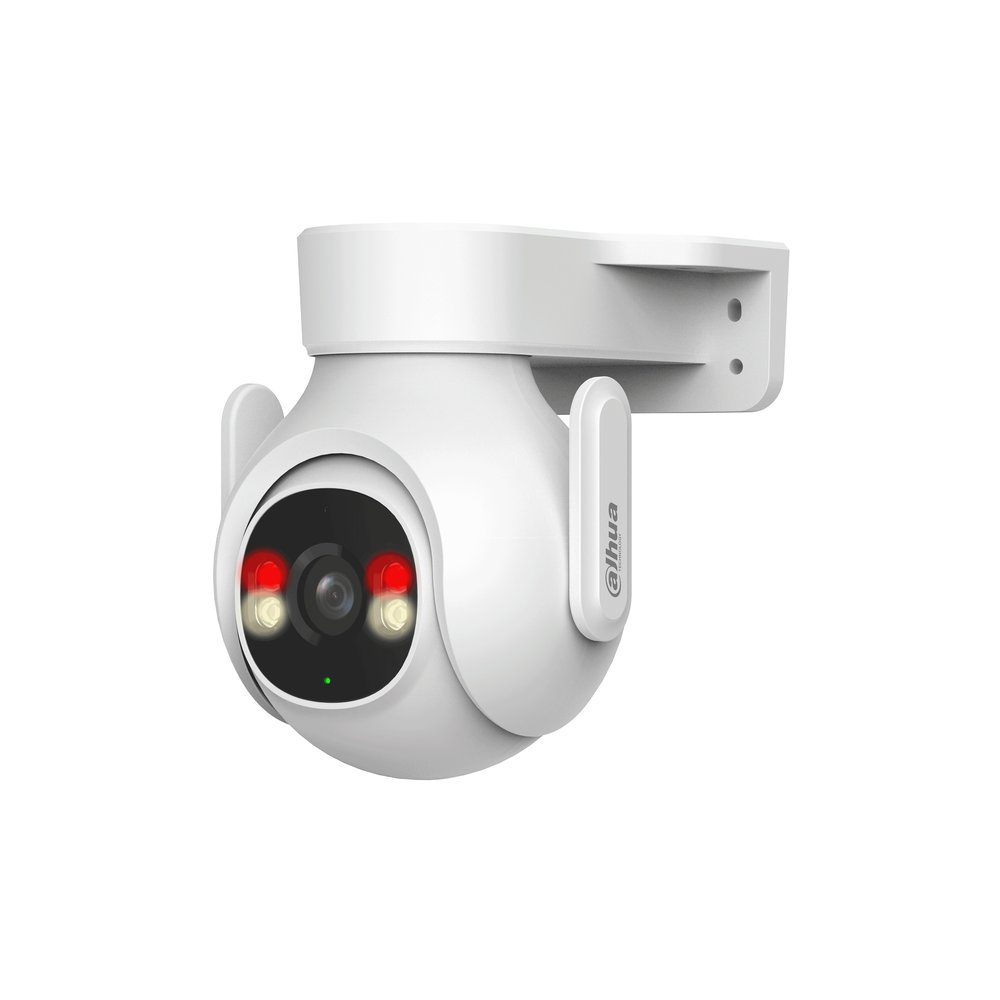

Telecamera PT IP/Wi-Fi Smart Dual Light a deterrenza attiva da interno/esterno IP65, sensore CMOS progressivo 1/2.7", risoluzione 3 MP a 25fps, H.265, rotazione PAN 355° / TILT 0°~90°, ICR, ottica fissa M12 3.6 mm F1.6, portata IR/white light 30 m, 1 porta di rete 10/100 Mbps, connessione Wi-Fi 2.4 G, microfono e speaker integrati, allarme luminoso e sonoro, human/vehicle detection, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc <4.56 W, alimentatore incluso
Datasheet
Disegni
| Smart Dual Light | |
| Clear images with sharp details | review |
| Ai Human Detection | |
| Provides instant alarms to deter | Focuses on what matters and |
| intruders | reduces false alarms |
| Auto Tracking | |
| Guards the places that matter to you | Automatic tracking of targets |
| Wi-Fi 6 | |
| Withstands harsh environments | Seamless integration of speed and anti-interference |
| Micro Sd Card | |
| Advanced H.265 compression | Low-cost storage |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Up to 30 m (98.43 ft) (IR); |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm Light) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR LED); 2 (Warm light) Pan: 0°–355°; |
| Angle Adjustment | Tilt: 0°–90° |
| Lens | |
| Max. Aperture | F1.6 |
| Field of View | H: 87°; V: 44°; D: 105° |
| Intelligence | |
| Vehicle Detection | Yes |
| Human Detection | Yes |
| Video | |
| Video Compression | H.265 Main stream: 2304 × 1296@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Resolution | 3M (2304 × 1296); nHD (640 × 360) |
| Video Bit Rate | H.265: 80 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Smart Illumination | Yes × 2 × 1 |
| × 1 | |
| Image Rotation | 0°/180° |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G |
| Storage | |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
| Power | |
| Power Supply | 12 VDC Basic: 1.56 W; |
| Power Consumption | Max.: 4.56 W (H.265+warm light on) |
| Environment | |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity | ≤95% |
| Structure | |
| Casing Material | Plastic 116 mm × 138 mm × 139 mm (4.57" × 5.43" × 5.47") |
| Product Dimensions | (L × W × H) |
| Net Weight | 425 g (0.94 lb) |
