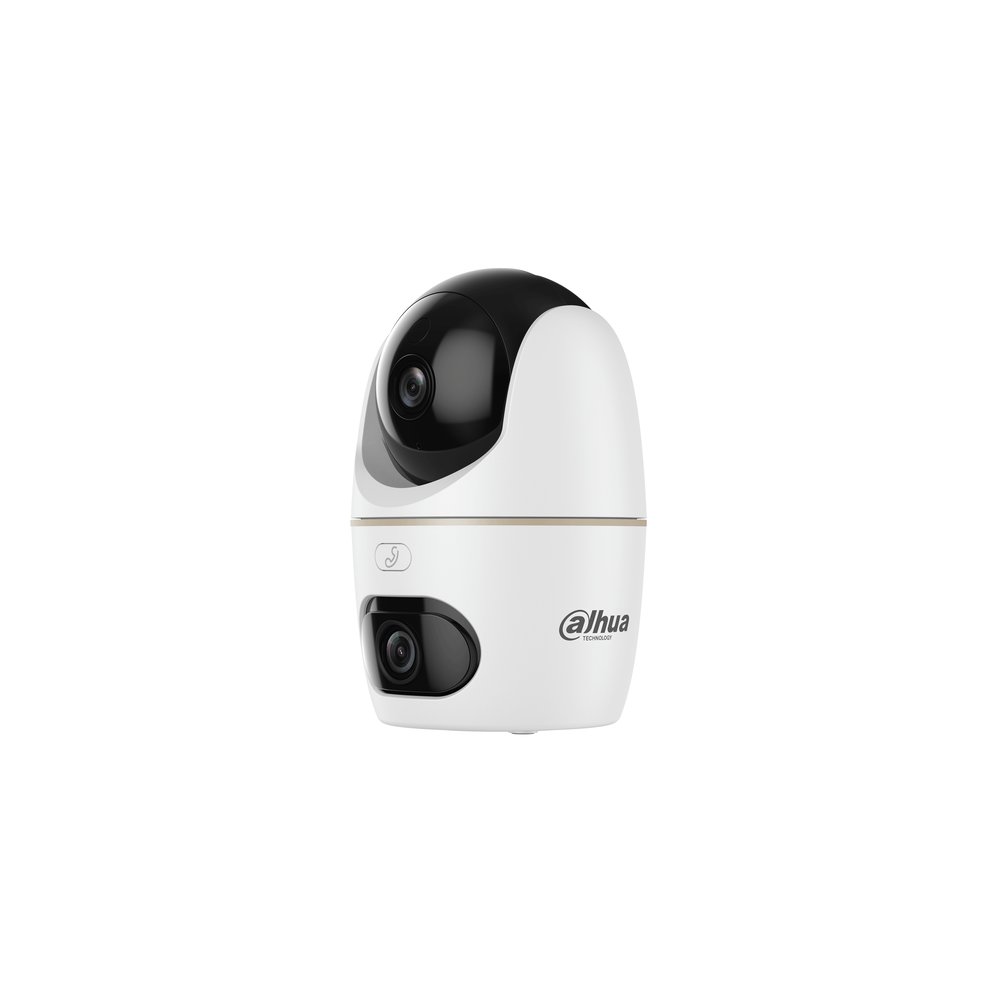

Telecamera PT IP/Wi-Fi con doppia ottica e Smart Dual Light (PT) da interno, sensori CMOS progressivi 1/3", risoluzione 2×5 MP a 25fps, H.265, rotazione PAN 349° / TILT -5°~90°, ICR, ottiche fisse 3.6 mm F2.0, portata IR/white light 30 m, 1 porta di rete 10/100 Mbps, connessione Wi-Fi 6 2.4/5 G, Bluetooth pairing, microfono e speaker integrati (comunicazione bidirezionale), motion detection, AI human detection, pet detection, privacy mode, allarme luminoso e sonoro, tasto chiamata, slot micro SD card (fino a 256 GB), alimentazione 5 Vdc <5.4 W, alimentatore incluso, case in plastica
Datasheet
| Detection | |
| Smart detection for both lenses to | anywhere |
| Preset Patrol | |
| Focuses on what matters and | Guards the places that matter to you regularly |
| One-Click Privacy Mode | |
| Provides instant alarms to deter | Protects your privacy |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 86°; V: 46°; D: 104° |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) Up to 30 m (98.43 ft) (IR) |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 2 (IR LED); 1 (Warm light) Pan: 0° to 349° |
| Angle Adjustment | Tilt: –5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 86°; V: 46°; D: 104° |
| Intelligence | |
| Human Detection | Yes |
| Pet Detection | Yes Tools: Documents: Power: Installation Position QR Code×1 Power Adapter×1 Map×1 Quick Start Guide×1 Power Cord×1 Screw Package×1 Legal and regulation Bracket×1 information×1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Audio And Video | |
| Video Compression | H.265 Main stream: 2880 × 1620@15 fps sub stream: 640 × 360@15 fps |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 768 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 |
| Wi-Fi | G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
| Function | |
| Abnormal Sound Alarm | Yes |
| Privacy Mode | Yes |
| Certifications | |
| Power Supply | 5 VDC Basic: 2.5 W; |
| Power Consumption | Max.: 5.4 W (pulling stream+ IR + PT rotation) |
| Operating Temperature | –10 °C to +45 °C (–4 °F to +113 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Casing Material | Plastic |
| Product Dimensions | Φ80.9 mm × 125.7mm (3.19" × Φ4.95") |
| Net Weight | 233 g (0.51 lb) |
