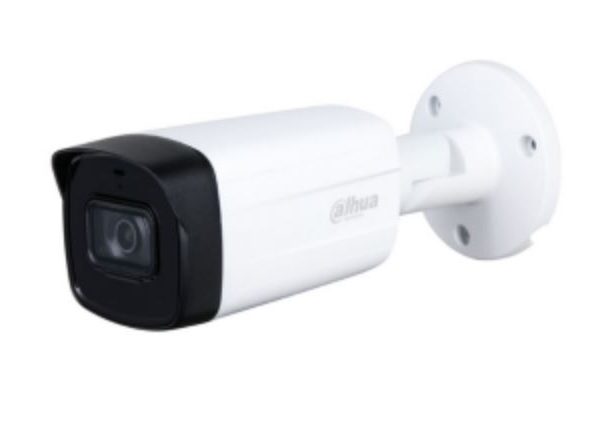

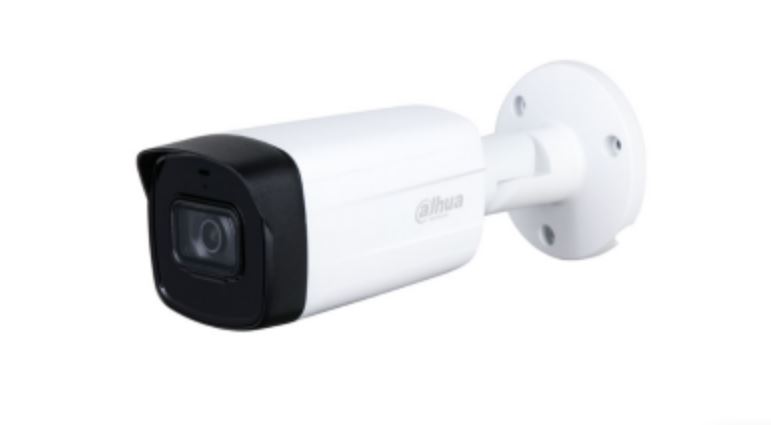

Telecamera HDCVI Bullet IR 5MP Starlight
> Max 25fps@5MP (uscita video 16:9)
I parametri e i datasheet sono forniti solo come riferimento e possono differire dal prodotto reale. Si prega di fare riferimento al prodotto fisico in caso di dubbi.
* Per utilizzare la telecamera HDCVI 5MP 16:9, il firmware dell’XVR deve essere aggiornato alla versione V4.001.0000001.0.R.200908 o successiva.
| Ip67 | |
| Series | – – |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive PAL: 1/25 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Illumination Distance | 80 m (262.5 ft) |
| Illumination On/Off Control | Auto; manual |
| Illuminator Number | 2 Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–180° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm; 6 mm; 8 mm |
| Max. Aperture | F1.6 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° |
| Field of View | (diagonal × horizontal × vertical) 8 mm: 48° × 43° × 24° (diagonal × horizontal × vertical) |
| Iris Type | Fixed iris 3.6 mm: 1.6 m (5.2 ft) |
| Close Focus Distance | 6 mm: 3.1 m (10.2 ft) 8 mm: 4.9 m (16.1 ft) |
| Dori | |
| Distance | (493.4 ft) (197.5 ft) (98.8 ft) (49.2 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × |
| Resolution | 1080); 960 H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 5.2W (12V DC, IR on) |
| Environment | |
| Operating Temperature | condensation) –40°C to +60°C (–40°F to 140°F); < 95% (non- |
| Storage Temperature | condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Mental front cover+plastic main body+mental bracket |
| Camera Dimensions | 240.7 mm × 90.7 mm × 90.4 mm ( 9.48" × 3.57" × 3.56" ) |
| Net Weight | 0.41 kg (0.90 lb) |
| Gross Weight | 0.64 kg (1.41 lb) |
| Ordering Information | |
| Type | Part Number DH-HAC- HFW1500THP-I8 3.6 mm DH-HAC- HFW1500THN-I8 3.6 mm DH-HAC- HFW1500THP-I8 6 mm |
| 5MP Camera | 5MP HDCVI IR Bullet Camera DH-HAC- HFW1500THN-I8 6 mm DH-HAC- HFW1500THP-I8 8 mm DH-HAC- HFW1500THN-I8 8 mm Junction Box PFA135 IP66 Junction Box (For use alone or with PFA130-E PFA152-E pole mount) Pole Mount Bracket (For use with PFA130-E PFA152-E junction box) |
| Optional: | |
| Junction Box | IP66 Junction Box Pole Mount Bracket (For use alone or with (For use with PFA130-E PFA152-E pole mount) junction box) PFM904 |
| PFM800-4K | PFM321D 12V 1A Power Adapter Integrated Mount Tester |
| Passive HDCVI Balun | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
