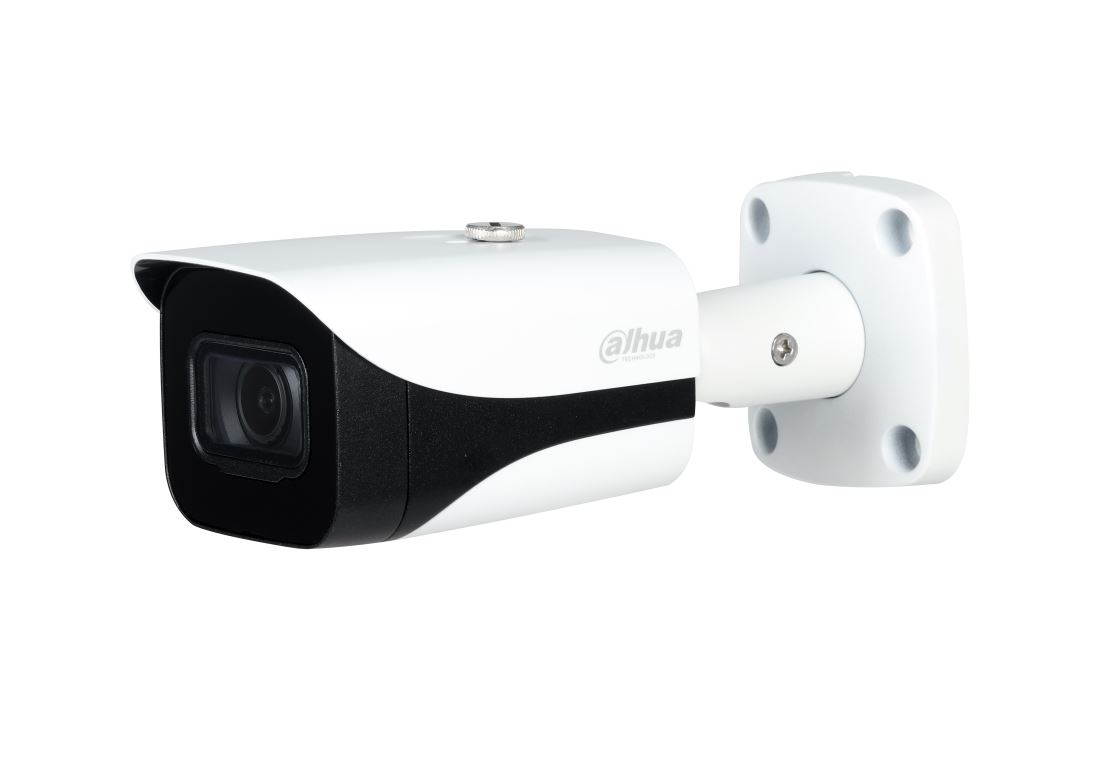

Telecamera bullet HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica fissa 3.6 mm, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 40 m, 2/3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, OSD, alimentazione 12 Vdc <5.9 W
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5 MP |
| Scanning System | Progressive PAL: 1/3 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.6, 30IRE, 0Lux IR on |
| Illumination Distance | 40 m (131.2 ft) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 2 Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° |
| Field of View | (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical) |
| Iris Type | Fixed iris 2.8 mm: 0.9 m (3.0 ft) |
| Close Focus Distance | 3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft) |
| Dori | |
| Distance | (393.7 ft) (157.5 ft) (78.7 ft) (39.4 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × |
| Resolution | 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR/3D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Audio Interface | One channel built-in mic Video output choices of CVI/TVI/AHD/CVBS by one |
| Video Output | BNC port (DIP Switch) |
| Power | |
| Power Supply | DC 12V ±30% |
| Power Consumption | Max 5.9W (12V DC, IR on) |
| Environment | |
| Operating Temperature | condensation) –40°C to +60°C (–40°F to +140°F); < 95% (non- |
| Storage Temperature | condensation ) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Plastic: Sunshield cover+lower decorative cover |
| Camera Dimensions | 179.9 mm × 70 mm × 70 mm (7.08" × 2.75" × 2.75") |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
| Ordering Information | |
| Type | Part Number DH-HAC-HFW2501EP-A 2.8mm DH-HAC-HFW2501EN-A 2.8mm DH-HAC-HFW2501EP-A 3.6mm 5MP Starlight HDCVI IR Bullet Camera |
| 5MP Camera | DH-HAC-HFW2501EN-A 3.6mm DH-HAC-HFW2501EP-A 6mm DH-HAC-HFW2501EN-A 6mm IP66 Junction Box PFA121 Pole Mount Bracket PFA152-E Corner Mount PFA151 |
| Optional: | |
| IP66 Junction Box | Pole Mount Bracket Corner Mount PFM800-4K PFM321D PFM904 |
| Passive HDCVI Balun | 12V 1A Power Adapter Integrated Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
