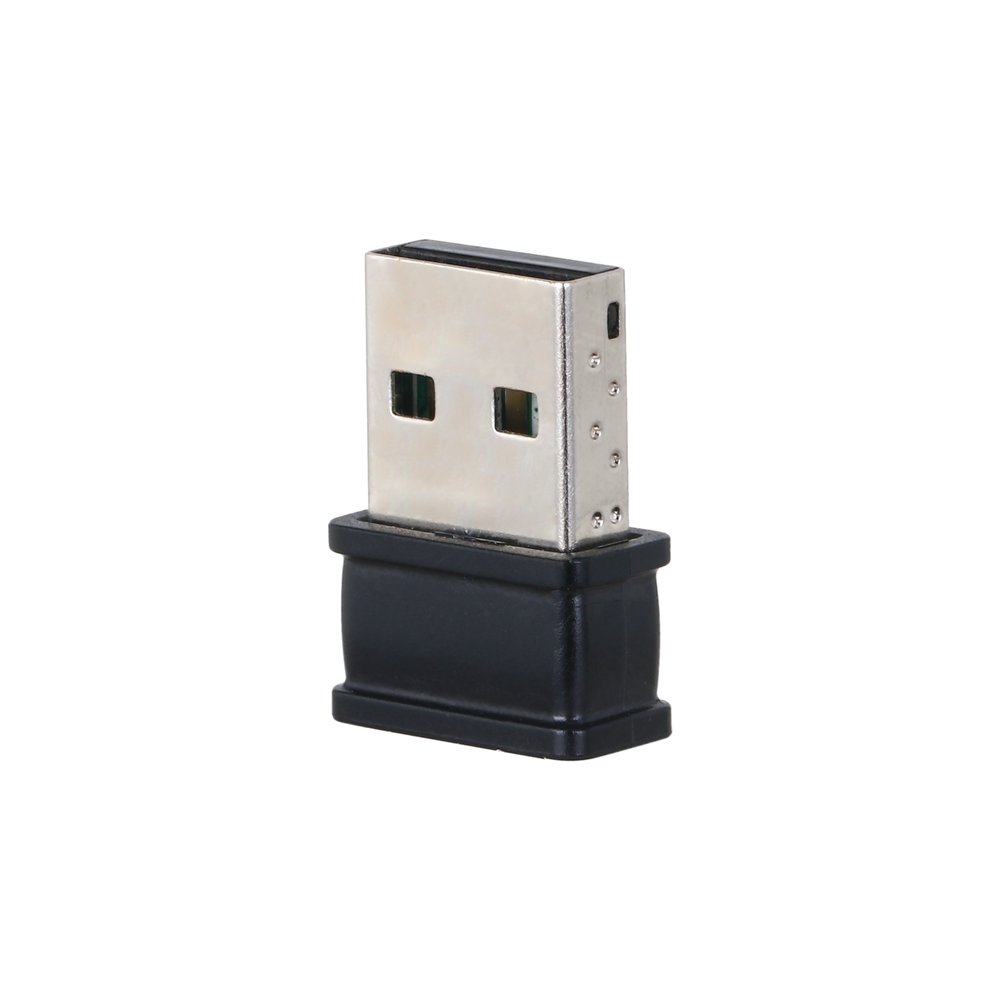

Adattatore wireless Nano 2.4/5G 650 Mbps USB 2.0
Datasheet
Manuali
| Hardware | |
| Function Slots | USB 2.0 |
| Power Supply | USB 2.0 |
| External Port | USB2.0 |
| Antenna | Soldering |
| Performance | |
| Wireless Standard | 5GHz:IEEE 802.11b/g/n/ac; 2.4GHz:200Mbps; |
| Operating Frequency | 5GHz:433Mbps 2.4 GHz: 20/40 MHz |
| Channel Width | 5 GHz: 20/40/80 MHz |
| Antenna Gain | 2dBi |
| Max. Output Power | 19 dBm |
| Antenna Direction Angle | Omnidirectional 2.4 GHz: 11b 1M: -91 dBm@1 Mbps 11g 6M: -89 dBm@6 Mbps 11n HT20: -65 dBm@mcs7 11n HT40: -62 dBm@mcs7 11ac HT20: -57 dBm@mcs9 |
| Receiver Sensitivity | 11ac HT40: -55 dBm@mcs9 5 GHz: 11ag 6M: -82 dBm@1 Mbps 11n HT20: -64 dBm@mcs7 11n HT40: -61 dBm@mcs7 11ac HT20: -57 dBm@mcs9 11ac HT40: -54 dBm@mcs9 |
| Polarization | Horizontal |
| Function | |
| Network Protocol | TCP/IP;UDP |
| Encryption Mode | WPA-PSK/WPA2-PSK |
| OFDMA | Yes |
| MU-MIMO | Yes |
| DFS | Yes |
| DHCP | Yes |
| QoS | Yes |
| General | |
| Power Consumption | Full load: 1 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –10 °C to +50 °C (+14 °F to +122 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Net Weight | 2.2 g |
| Gross Weight | 14.9 g 18.8 mm × 15.7 mm × 7.4 mm (0.74" × 0.62" × 0.29") (L |
| Product Dimensions | × W × H) 2024 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| Packaging Dimensions | × H) |
| Installation | Desktop mount |
| Certifications | |
| Packing List | 1 × User Manual |
| Ordering Information | |
| Type | Model Description 802.11AC 650M WIRELESS |
| WIRELESS ADAPTER | DH-NC650 ADAPTER |
