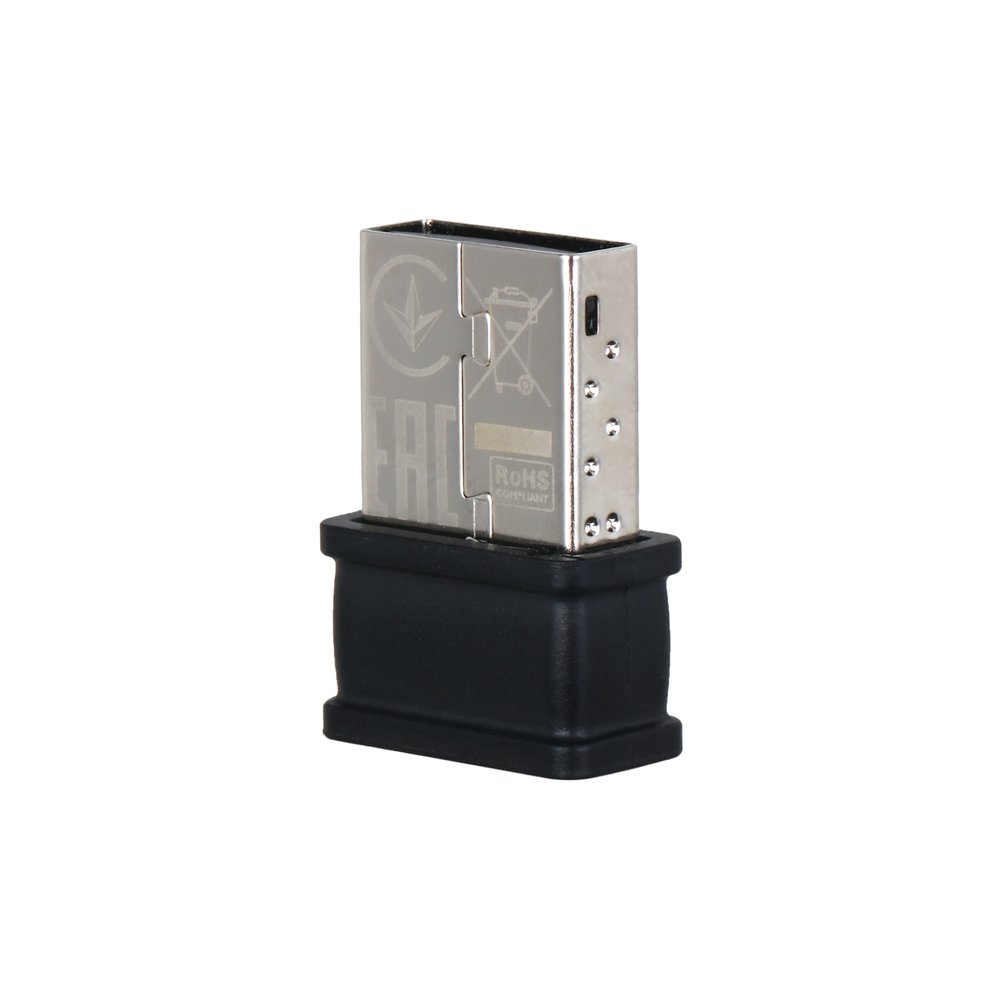

Adattatore wireless Nano 6th gen 2.4G 300 Mbps USB 2.0
Datasheet
Manuali
| Hardware | |
| Function Slots | USB 2.0 |
| Power Supply | USB 2.0 |
| External Port | USB 2.0 |
| Performance | |
| Wireless Standard | 2.4 GHz: IEEE 802.11b/g/n/ax |
| Operating Frequency | 2.4 GHz–2.484 GHz |
| Channel Width | 2.4 GHz: 20/40 MHz |
| Antenna Gain | 1 dBi |
| Max. Output Power | 19 dBm |
| Antenna Direction Angle | Horizontal 2.4 GHz 11b 1M: -98 dBm@1 Mbps; 11g 6M: -94 dBm@6 Mbps; |
| Receiver Sensitivity | 11n HT20: -75 dBm@mcs7; 11n HT40: -72 dBm@mcs7; 11ax HT20: -69 dBm@mcs9; 11ax HT40: -66 dBm@mcs9 |
| Polarization | Horizontal ： |
| Channel | 2.4 GHz 1-13 |
| Function | |
| Encryption Mode | WPA-PSK/WPA2-PSK |
| OFDMA | Yes |
| MU-MIMO | Yes |
| DFS | Yes |
| DHCP | Yes |
| QoS | Yes |
| General | |
| Power Consumption | Full load: 0.79 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing 79 mm × 64 mm × 18 mm (3.11" × 2.51" × 0.71") (L × W |
| Packaging Dimensions | × H) |
| Certifications | |
| Packing List | 1 × User Manual |
| Ordering Information | |
| Type | Model Description 802.11AX 300M WIRELESS |
| WIRELESS ADAPTER | DH-NC300 ADAPTER 2024 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
