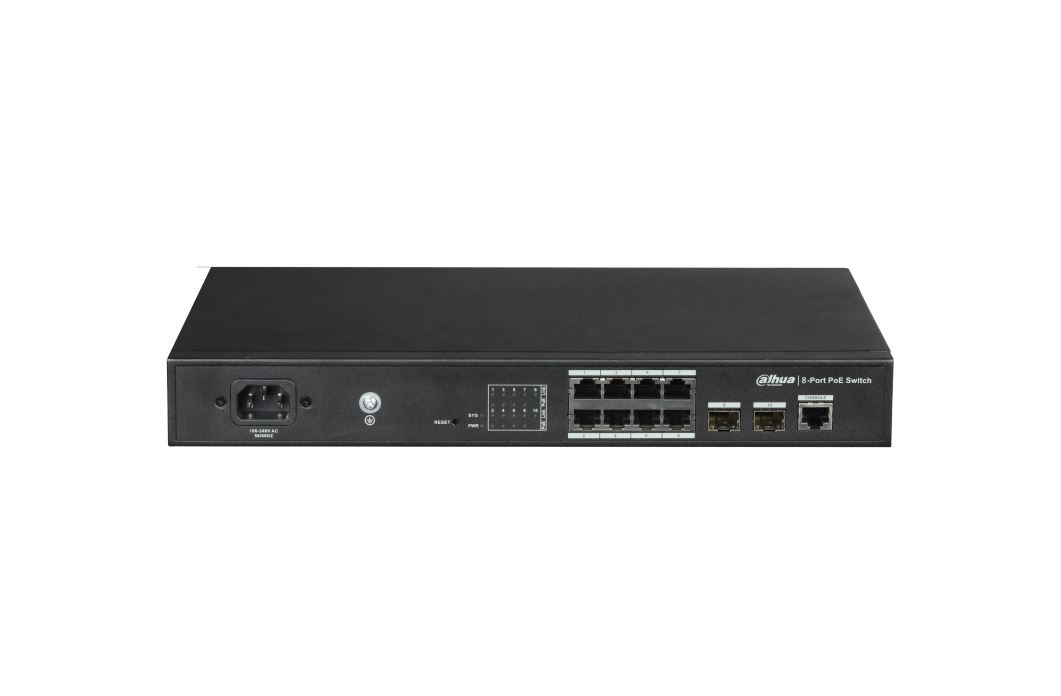

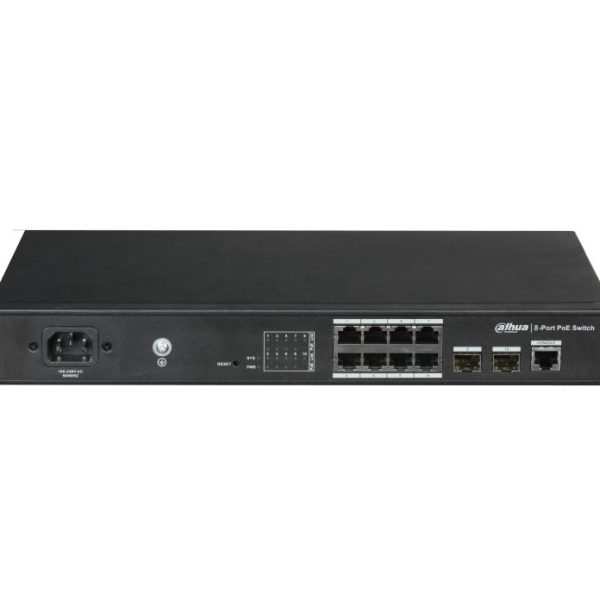

Switch managed con 10 porte Gigabit (8 10/100/1000 Mbps PoE <150 W + 2 Base-X 100/1000 Mbps), capacità switching 20 Gbps, rate inoltro pacchetti 14.88 Mpps, 100~240 Vac
Datasheet
Manuali
| Model | DH-PFS4210-8GT-150 8*10/100/1000 Base-T (PoE power supply) |
| Ethernet Port | 2*100/1000 Base-X 1*RS232 in RJ45 connector with console cable, |
| RS232 Serial Console | 115.2Kbps, 8,N,1 |
| PoE Power Consumption | Each power ≤30W, Total≤150W |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Packet Buffer Memory | 4Mb |
| Application Humidity | 5%~95% |
| Power | |
| Lightning Protection | Differential Mode 1KV |
| Working Temperature | 0°C~45°C |
| Dimension(W×D×H) | 340mm x200mm x44mm |
| Accessories | |
| PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
| PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
| System | |
| PoE Budget | Total≤150W |
| MAC Table | 8K |
| NTP | Support Support DHCP client/server |
| DHCP | Support DHCP snooping |
| VLAN | 802.1Q Standard VLAN |
| Port Aggregation | Manual aggregation/LACP |
| Mirroring | Many-to-one port mirroring Half-duplex based on back pressure type control; |
| Flow Control | Full duplex based on PAUSE frame |
| Multicast | IGMP Snooping v1/v2/v3 Users management, SSH, HTTPS, SNMP v1/v2/ |
| Security Features | v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection |
| Spanning tree | Support STP/RSTP/MSTP |
| LLDP | Support |
| MAC Table | Support MAC address table configuration Support QoS base on CoS/DPL/PCP/DEI Each port support 8 output queue |
| QoS | Support port shaping Support port tag remarking Support QoS base on DSCP Support the configuration file upload/download |
| System Maintenance | Support the updated packet upload System log |
| Network Management | WEB(http protocol), serial, SNMP |
