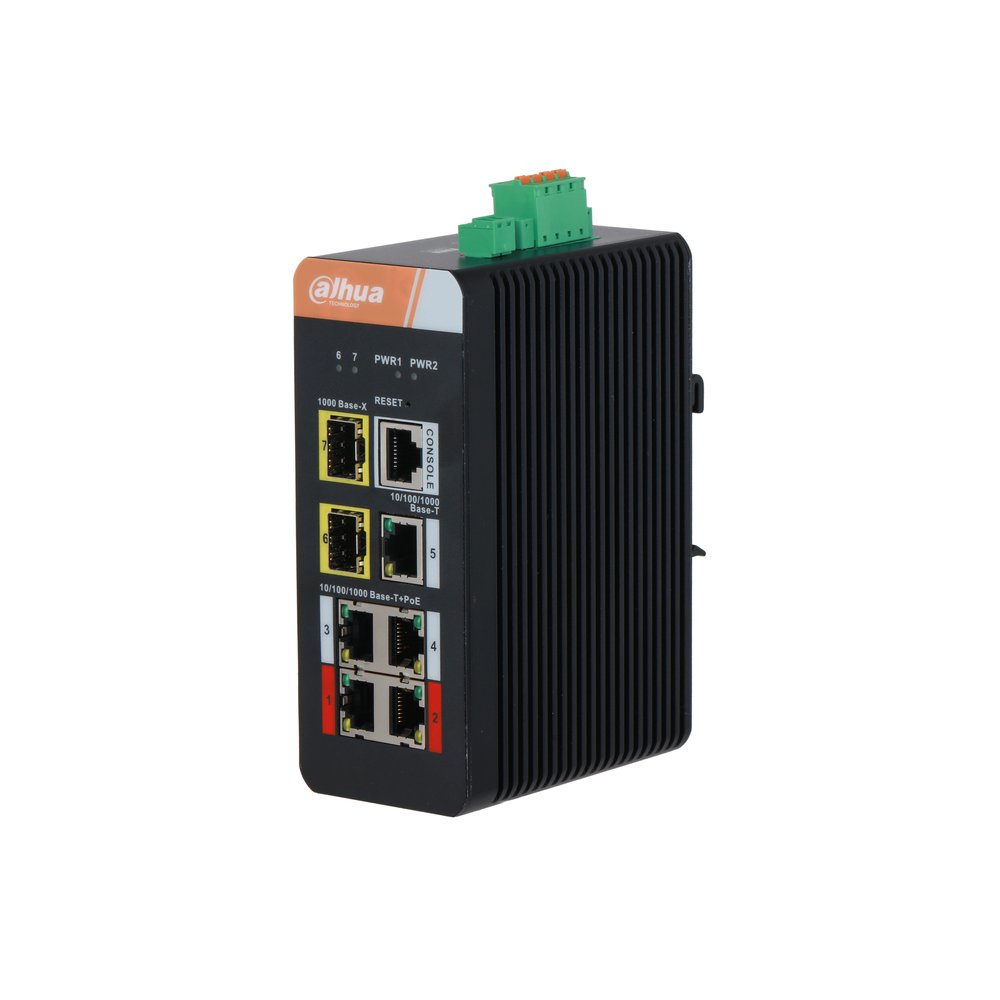

Switch Industrial managed (anche tramite Cloud) con 7 porte Gigabit (4 10/100/1000 Mbps PoE <120 W + 1 10/100/1000 Mbps + 2 SFP 1000 Mbps), capacità switching 14 Gbps, rate inoltro pacchetti 10.42 Mpps, 2 red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 53 Vdc, Din Rail, alimentatore NON incluso
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes |
| PoE | 5 |
| Ethernet Port | 2 |
| Optical Port | 10/100/1000 Mbps |
| Ethernet Port Speed | 1000 Mbps |
| Optical Port Speed | Port 1-5: 5 × RJ-45 10/100/1000 Mbps |
| Description of Function Slots | Port 6-7: 2 × SFP 1000 Mbps 1 × console port |
| Debugging | 1 |
| Reset Button | 53 VDC |
| Power Supply | –40 °C to +75 °C (–40 °F to +167 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing Idling: ≤ 6 W |
| Power Consumption | Full load: 120 W |
| Performance | |
| Layer | L2 |
| Management Type | Yes |
| MTBF | 1068152.05 hours |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 10.42 Mpps |
| Packet Buffer Size | 4.1 Mbit |
| Jumbo Frame | 10K Byte |
| MAC Table Size | 8K |
| VLAN Number | 4K |
| VLAN Interface | 10 |
| Dynamic ARP | 512 IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; |
| Communication Standard | IEEE 802.3z; IEEE 802.3ad |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt Port 1-2 ≤90 W |
| PoE Power | Port 3-4 ≤30 W Full load ≤120W |
| PoE Power Consumption | Yes |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE | Yes |
| Spanning Tree Protocol | STP/RSTP/ERPS |
| VLAN Function | Yes |
| Link Aggregation | Static link aggregation; LACP |
| IEEE 802.3x Flow Control | IEEE 802.3X-based flow control (full-duplex) |
| Multicast | IGMP Snooping |
| DHCP Function | DHCP client IEEE 802.1x |
| Security | ERPS WEB (http and https) |
| Equipment Management | SNMP V1/V2C/V3 |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 6 kV |
| Lighting Protection | Differential mode: 4 kV |
| Net Weight | 0.65 kg (1.43 lb) |
| Gross Weight | 0.92 kg (2.03 lb) 94.4 mm × 53.5 mm × 135 mm (3.72" × 2.11"× 5.31") |
| Product Dimensions | (L × W × H) 254 mm × 187 mm × 101 mm (10.00" × 7.36" × 3.97") |
| Packaging Dimensions | (L × W × H) |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10Ω/100m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 1000 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Ordering Information | |
| Type | Model 1.25G 1310/1550nm,20km,LC, Single-mode GSFP-1310T-20-SMF 1.25G 1550/1310nm,20km,LC, Single-mode GSFP-1310R-20-SMF |
| SFP module | 1.25G 1310nm,20km,LC, Single-mode GSFP-1310-20-SMF 1.25G 850nm,550m,LC, Multi-mode GSFP-850-MMF |
| DIN-Rail | 120W, 100VAC~240VAC-48V2.5A DRL-48V120W1AA |
