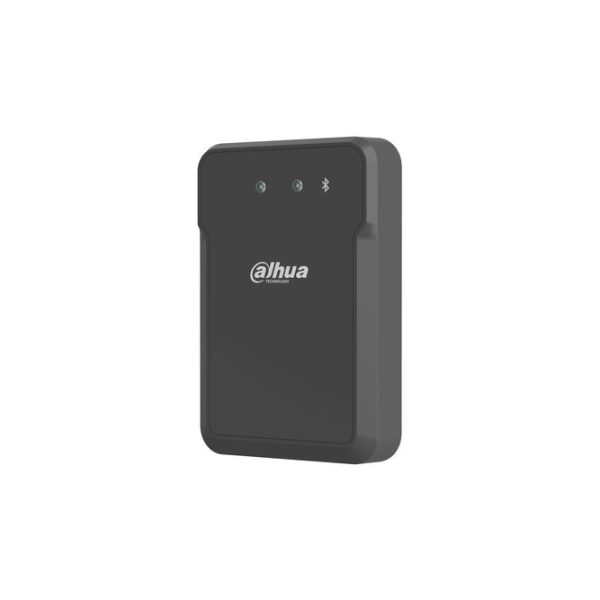

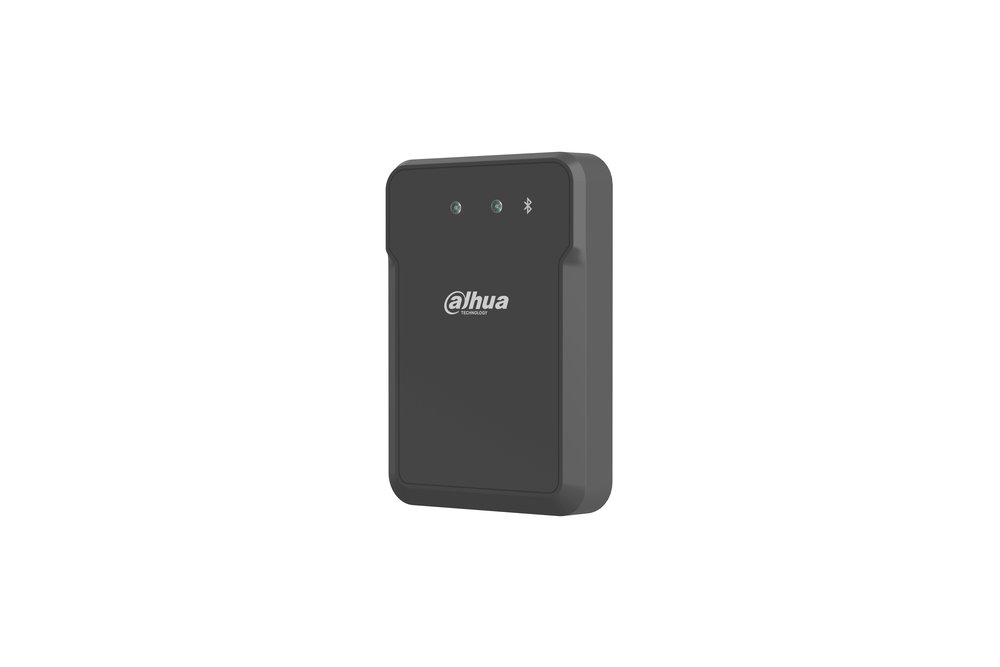

Radar anticollisione IP67 60-64 GHz, FMCW, connessione Bluetooth, area rilevamento 1.5 m (regolabile), area anticollisione 0~6 m (regolabile), target rilevabili: persone e veicoli, 1 porta RS485, 1 I/O, alimentazione 9~24 Vdc <0.5 W
| Basic | |
| Radar Modulation Type | FMCW |
| Radar Frequency Range | 60 GHz–64 GHz |
| Radar Power Transmission | 11 dBm |
| Bluetooth Standard | BLE5.0 |
| Bluetooth Frequency Range | 2.402 GHz–2.480 GHz |
| Bluetooth Power | ≤8 dbm |
| RS-485 | 1 |
| I/O | 1 channel |
| General | |
| Operating Voltage | 9–24 VDC |
| Operating Current | 50 mA |
| Power Consumption | <0.5 W (average power consumption) |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Storage Temperature | –10 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Storage Humidity | 0%–90% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. 107.9 mm × 73.6 mm × 33.2 mm (4.25" × 2.9" × 1.31") |
| Product Dimensions | (L × W × H) 164 mm × 113 mm × 49 mm (6.46" × 4.45" × 1.93") (L × |
| Packaging Dimensions | W × H) |
| Net Weight | 118 g (0.26 lb) |
| Gross Weight | 293 g (0.65 lb) |
| Installation | Side installation |
| Ordering Information | |
| Type | Model Description |
| Anti Smashing Radar | DHI-IPMECR-A6 Dahua Anti Smashing Radar |
