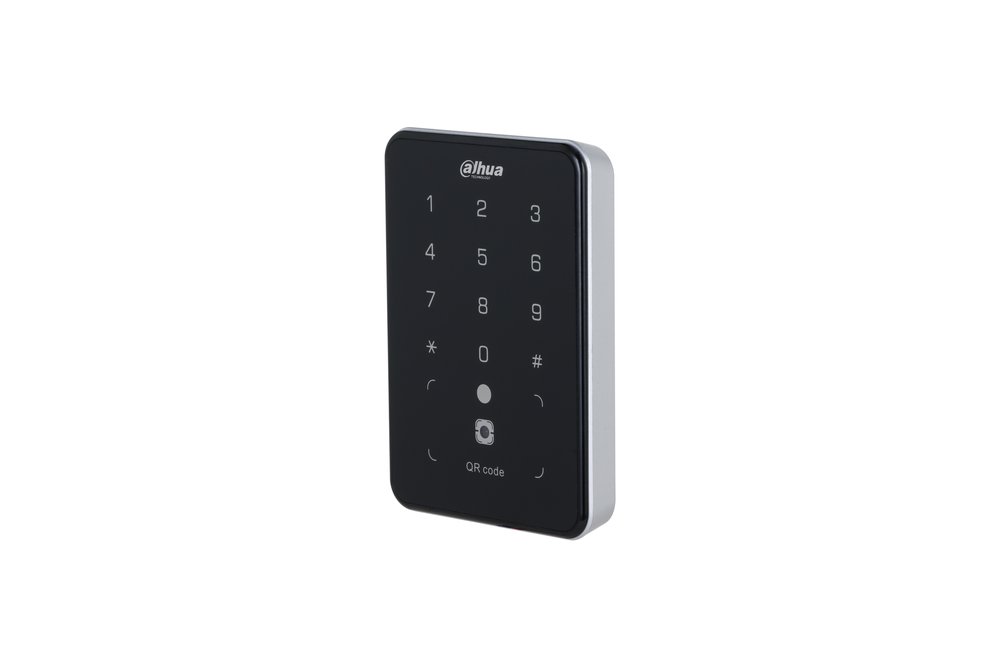

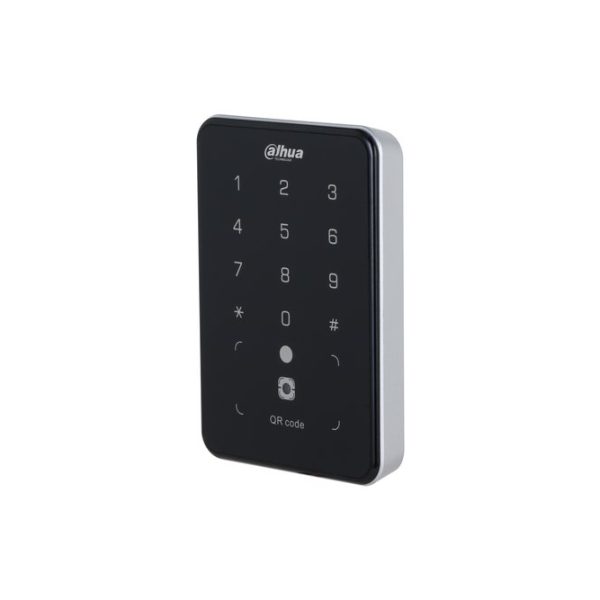

Lettore per controllo accessi IP66 con scanner QR code (risoluzione ottica 640×480, white LED, portata lettura 3~40 cm, velocità 120 ms), sblocco tramite password, card Mifare da 13.56 MHz e QR code (cartaceo e digitale), RS485 e Wiegand, tamper, tastiera touch, alimentazione 12 Vdc <1.7 W
| Basic | |
| Product Type | Card reader |
| Buzzer | Yes |
| Casing | PC/Tempered glass |
| Function | |
| Unlock Mode | Multiple unlocking modes |
| Card Type | IC card |
| Performance | |
| Response Time | 0.1 s |
| Card Reading Distance | 0 cm–5 cm (0"–1.97") |
| Port | |
| RS-485 | 1 channel |
| Wiegand | 1 output channel |
| Lens Resolution (QR Code) | 640 (H) × 480 (V) |
| Illuminator (QR Code) | White LED |
| Recognition Angle (QR Code) | Rotation: 360°, pitch: 65°, skew: 65° |
| Scanning Angle (QR Code) | 67° (H), 53° (V) |
| Recognition Distance (QR | 3 cm–40 cm (1.18"–15.75") |
| Read Speed (QR Code) | 120 ms QR code, PDF417,DATA matrix,UPC-A,UPC- E,EAN-8,EAN-13,EAN-14,EAN-128,UCC128,ISBN/ |
| Supported Codes | ISSN,CODE11,CODE32,CODE39,CODE39 FULL,ASCII,CODE93,CODE128,GS1 |
| Code Type | Paper; digital |
| Code Recognition Accuracy | ≥ 6 mil |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Power Supply | 12 VDC, 0.5 A |
| General | |
| Power Supply | 12 VDC, 0.5 A |
| Protection | IP66 (silicon sealant is needed, see the manual) |
| Power Consumption | Standby ≤ 0.9 W, working ≤1.7 W 123 mm × 86 mm × 15 mm (4.84" × 3.38" × 0.59") |
| Product Dimensions | (L × W × H) 185 mm × 163 mm × 71 mm (7.28" × 6.41" × |
| Packaging Dimensions | 2.80") (L × W × H) |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | 5%–95%RH (non-condensing) |
| Operating Environment | Indoor; outdoor |
| Gross Weight | 0.35 kg (0.77 lb) |
| Installation | Surface mount |
| Ordering Information | |
| Type | Model Description Waterproof QR code reader |
| Access Reader | DHI-ASR2115A (IC+Password+QR code) DHI- ASR2115A |
| Application | |
| Management | Switch |
| Platform | Access Controller Lock Exit Button Card Reader Alarm Light |
