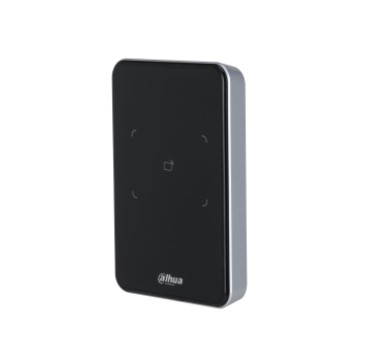

Lettore per controllo accessi IP66, sblocco tramite card da 125 kHz, RS485 e Wiegand 26 (opzionale) / 34, tamper, alimentazione 12 Vdc
| Basic | |
| Product Type | Card reader |
| Buzzer | Yes |
| Casing | PC/acrylic panel |
| Function | |
| Unlock Mode | Card swiping |
| Card Type | ID card |
| Modulation Type | AM |
| Frequency Range | 125 kHz |
| Max Transmission Power | 66 dBuA/m @10 m |
| Performance | |
| Response Time | 0.1 s |
| Card Reading Distance | 0 cm–5 cm (0"–1.97") |
| Port | |
| RS-485 | 1 channel |
| Wiegand | 1 output channel |
| Power Consumption | Standby ≤ 0.9W, working ≤1.7W 123 mm × 86 mm × 15 mm (4.84" × 3.38" × 0.59") |
| Product Dimensions | (L × W × H) 185 mm × 163 mm × 71 mm (7.28" × 6.41" × 2.80") (L × W × H, 1 in inner carton) |
| Packaging Dimensions | 578 mm × 383 mm × 349 mm (22.76" × 15.08" × 13.74") (L × W × H, carton) |
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) |
| Operating Humidity | 5%RH–95% (non-condensing) |
| Operating Environment | Indoor; outdoor |
| Gross Weight | 0.35 kg (0.77 lb) |
| Installation | Surface mount |
| Ordering Information | |
| Type | Model Description |
| Access | DHI-ASR2100A-D Outdoor DHI-ASR2100A-D |
| Reader | Waterproof ID Card Reader |
| Application | |
| Management | Switch |
| Platform | Access Controller |
| Lock | Exit Button Card Reader Alarm Light |
