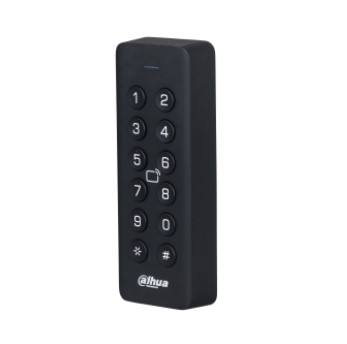

Lettore per controllo accessi in plastica IP66, sblocco tramite card da 125 kHz e password, RS485 e Wiegand 26 (opzionale) / 34, tamper, tastiera meccanica, alimentazione 12 Vdc <1.2 W
| System | |
| OSDP Protocol | Yes |
| Basic | |
| Product Type | Card reader |
| Buzzer | Yes |
| Backlight | Yes |
| Casing Material | PC + ABS |
| Function | |
| Unlock Mode | Card, password |
| Card Type | ID card |
| Performance | |
| Response Time | 0.1 s |
| Card Reading Distance | 0 cm–6 cm (0"–2.36") |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 channel output |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Power Supply | 12 VDC, 0.5 A |
| Protection | IP66 |
| Power Consumption | ≤ 0.48 W (standby), ≤ 1.2W (working) |
| Product Dimensions | 127 mm × 46 mm × 20 mm (5.00" × 1.81" × 0.79") |
| Packaging Dimensions | 139 mm × 73 mm × 48 mm (5.47" × 2.87" × 1.89") |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | ≤ 95% (RH) |
| Operating Environment | Outdoor |
| Gross Weight | 104 g (0.23 lb) |
| Installation | Surface Mount |
