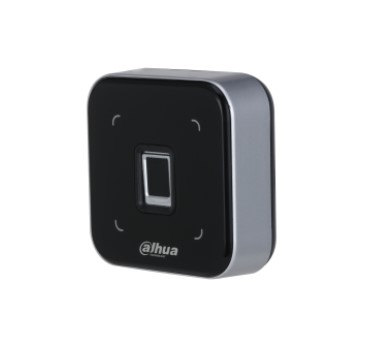

Lettore per controllo accessi IP65, sblocco tramite card Mifare da 13.56 MHz e lettore impronte, RS485, tamper, alimentazione 12 Vdc
| Basic | |
| Product Type | Fingerprint Card Reader |
| Buzzer | Yes |
| Casing | PC/acrylic panel |
| Function | |
| Unlock Mode | Multiple unlocking modes |
| Card Type | IC card |
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max Transmission Power | 42 dBuA/m @10 m |
| Performance | |
| Response Time | 0.1 s |
| Card Reading Distance | 0 cm–5 cm (0"–1.97") |
| Fingerprint Sensor Type | Capacitive fingerprint sensor |
| Fingerprint Verification | 1:N |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Power Supply | 12V 0.5A DC |
| Protection | IP65 (silicon sealant is needed, see the manual) |
| Power Consumption | Standby ≤ 1.0W, working ≤ 1.7W 70 mm × 70 mm × 26 mm (2.76" × 2.76" × 1.02") |
| Product Dimensions | (L × W × H) 110 mm × 97 mm × 90 mm (4.33" × 3.82"" × 3.54") (L × W × H, 1 in inner carton) |
| Packaging Dimensions | 578 mm × 313 mm × 204 mm (22.76" × 12.32" × 8.03") (L × W × H, carton) |
| Operating Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | 5%RH–95% (non-condensing) |
| Operating Environment | Indoor; outdoor |
| Gross Weight | 0.17 kg (0.37 lb) |
| Installation | Surface mount |
| Ordering Information | |
| Type | Model Description |
| Access | DHI-ASR2102A Outdoor Waterproof DHI-ASR2102A |
| Reader | IC Card and Fingerprint Reader |
| Application | |
| Management | Switch |
| Platform | Access Controller |
| Lock | Exit Button Card Reader Alarm Light |
