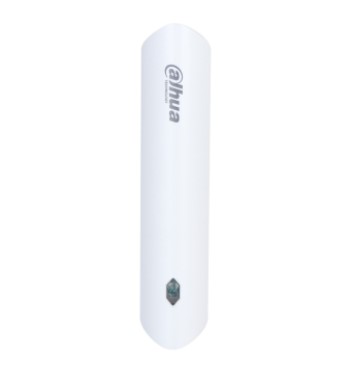

Espansore di ingresso wireless
> Sei tipi di allarme: intrusione, medico, incendio, emergenza, gas e manomissione.
> Disponibili ingressi di allarme NC e NO (NO per impostazione predefinita).
> Rilevamento dell’intensità del segnale.
Datasheet
Disegni
| Port | |
| Indicator Light | 1 × green alarm indicator |
| Button | 1 × power button |
| Protection Zone | 1-channel dry contact input |
| Function | |
| Tampering Alarm | Yes |
| Remote Upgrade | Cloud update |
| Low Battery Alarm | Yes |
| Test Mode | Yes |
| Search | Signal strength detection |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,200 m (3,937.01 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Package Dimensions | 1.09") |
| Installation Mode | Bracket mount |
| Net Weight | 70 g (0.15 lb) |
| Gross Weight | 115 g (0.25 lb) |
| Certification | CE 4 years (The external input type is NO) |
| Battery Life | 2 years (The external input type is NC or Pulse) |
| Casing Material | PC + ABS |
| Temperature | |
| Measurement Range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| Measurement Precision | ±1 °C (±1.8 °F) |
| Resolution | 1 °C (33.8 °F) |
| Ordering Information | |
| Type | Part Number Description |
| Wireless input expander | DHI-ARM310-W2(868) Single input transmitter |
| Application | |
| Alarm Hub | Wireless Input Expander |
