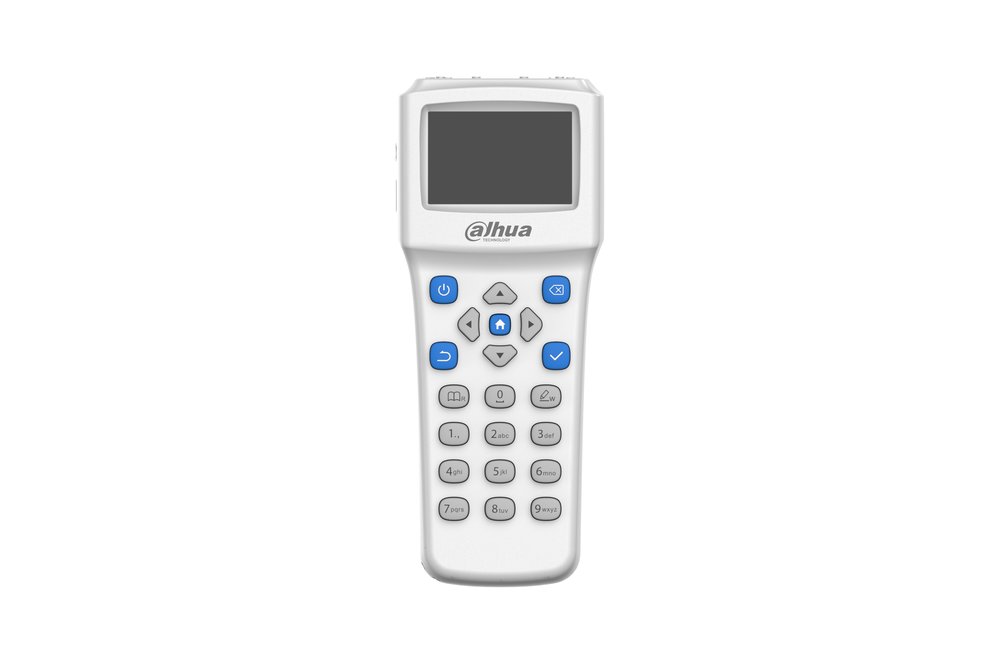

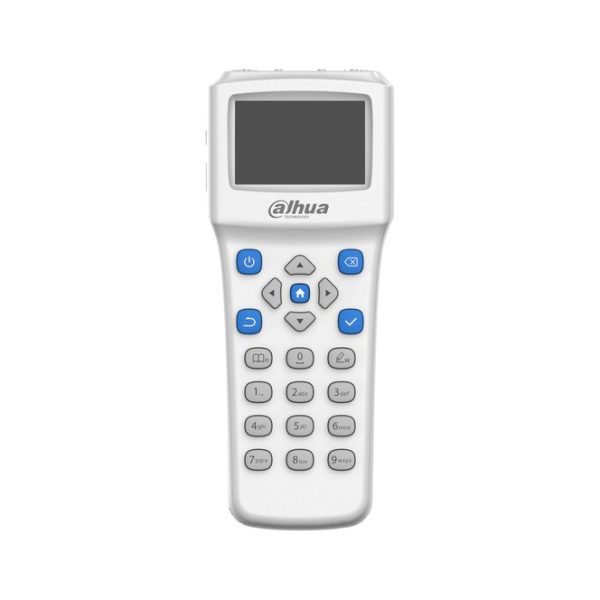

Encoder, 6 Vdc, display LCD retroilluminato, tastiera meccanica
| Working Power | DC 6V Monitoring current: ≤ 1.5mA |
| Current | Operating current: ≤ 60mA |
| Output Voltage | DC 16V or DC 24V |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Color | White |
| Dimensions | 47.3 mm×160.0 mm×31.4 mm (1.86"×6.30"×1.24") |
| Weight | 167 g (0.37 lb) |
| Ordering Information | |
| Type | Model Description |
| Encoder | DHI-HY-BM-1712 Encoder Pictures in the document are for reference only, and the actual product shall prevail. |
