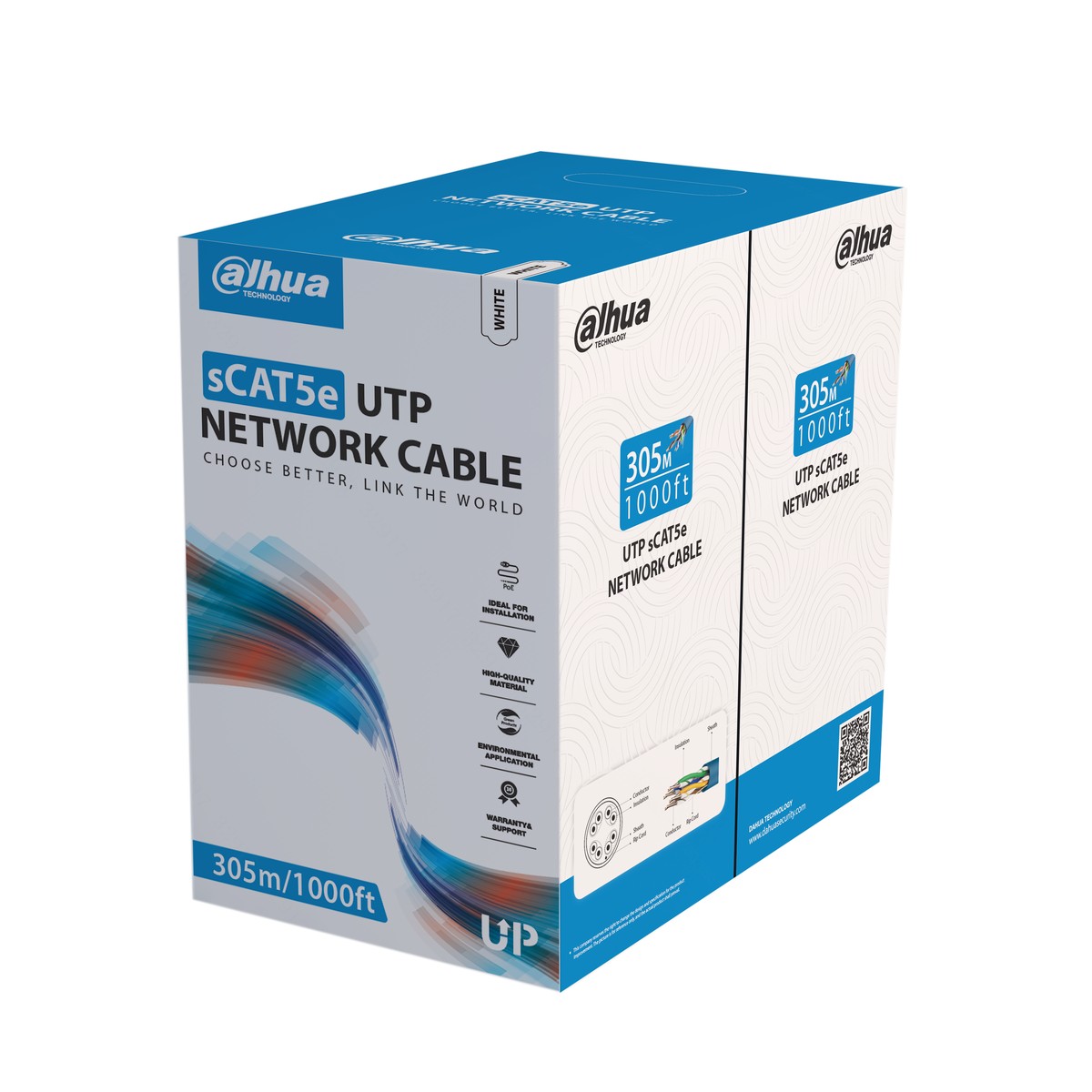

Cavo di rete U/UTP sCAT5E bianco in matassa da 305 m, conduttori in rame puro privo di ossigeno (OFC), guaina esterna in PVC, classe di reazione al fuoco CPR Eca (EN 50575), prova di propagazione della fiamma IEC 60332-1-2, dati e alimentazione PoE su un unico cavo, impedenza 100 Ω ±15 Ω, NEXT ≥35.3 dB/100 m a 100 MHz, attenuazione max 24.2 dB/100 m a 100 MHz, return loss ≥20.1 dB/100 m, raggio di curvatura >8 volte il diametro, temperatura di esercizio -20~+60 °C, peso netto 8 kg
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥35.3 dB/100 m@100 MHz |
| Max. Attenuation | 24.2 dB/100 m@100 MHz |
| Return Loss | ≥20.1 dB/100 m@100 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥10% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5 MPa, ≥100% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | Comply with IEC 60332-1-2 |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 364.0 mm × 364.0 mm × 216.0 mm (14.37" × 14.37" × |
| Packaging Dimensions | 8.50") (L × W × H) |
| Transport Package | 447.0 mm × 386.0 mm × 382.0 mm (17.60" × 15.20" × 15.04") (L × W × H) |
| Net Weight | 8 kg ± 0.6 kg (17.64 lb ± 1.32 lb) |
| Gross Weight | 8.5 kg ± 0.6 kg (18.73 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2024, EN50575 |
| Flame-Retardant Standard | |
| Compliance Standard | EN50575 |
| Ordering Information | |
| Type | Model Description 305m U/UTP sCAT5E |
| Network Cable | Network cable (White, CPR DH-PFM920I-5EUN Eca) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
