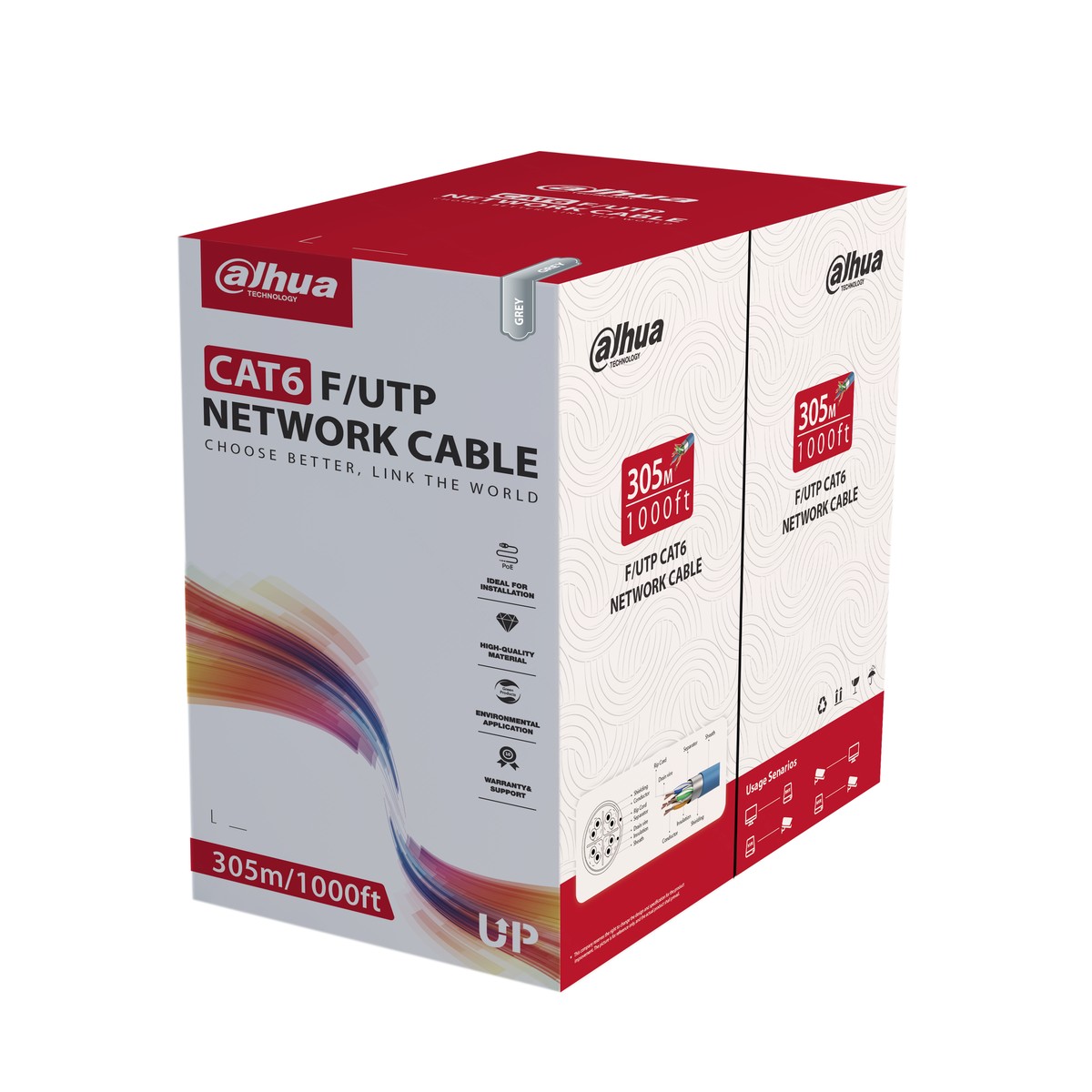

Cavo di rete F/UTP CAT6 grigio in matassa da 305 m, conduttori in rame puro privo di ossigeno (OFC), guaina esterna in PVC, classe di reazione al fuoco CPR Eca, prova di propagazione della fiamma IEC 60332-1-2, dati e alimentazione PoE su un unico cavo, resistenza DC max 7.35 Ω/100 m, impedenza 100 Ω ±15 Ω, NEXT ≥33.1 dB/100 m a 250 MHz, attenuazione max 32.8 dB/100 m a 250 MHz, return loss ≥17.3 dB/100 m, raggio di curvatura >8 volte il diametro, temperatura di esercizio -20~+60 °C, conforme ISO/IEC 11801 e IEC 61156, peso netto 19.3 kg
| Electrical | |
| Max. DC Resistance of a | 7.35 Ω@100 m (328.08 ft) |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥33.10 dB/100 m@250 MHz |
| Max. Attenuation | 32.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥10% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5MPa,≥125% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | Comply with IEC 60332-1-2 |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 414 mm × 321 mm × 425 mm (16.3" × 12.64" × 16.73") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | 19.3 kg ± 0.6 kg (42.55 lb ± 1.32 lb) |
| Gross Weight | 20.3 kg ± 0.5 kg (44.75 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | ISO/IEC 11801,IEC 61156 |
| Flame-Retardant Standard | |
| Compliance Standard | EN50575 |
| Ordering Information | |
| Type | Model Description 305m F/UTP CAT6 |
| Network Cable | DH-PFM920I-6F-C NetworkCable (Gray, CPR Eca) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
