Confezione da 20 isolatori segnale video HD HDCVI
| Function | |
| Resolution | 720p/1080p/4 MP/5 MP/4K Input resistance: 75 ohms |
| Impedance | Output resistance: 75 ohms |
| Port | |
| Video Port | BNC |
| Protection | |
| Electrostatic | Air Discharge: 8 kV |
| Discharge | Compliance Standard: IEC61000-4-2 |
| Surge Protection | 2 kV 10/700us Compliance Standard: IEC61000-4-5 |
| Structure | |
| Appearance | Black |
| Casing Material | ABS project material |
| Product | 400 mm × 22.5 mm × 16.5 mm (15.75" × 0.89" × 0.65") (L × W × H) |
| Packaging | 275 mm × 100 mm × 130 mm (10.83" × 3.94" × 5.12") (L × W × H) |
| Packaging | 20 pcs in 1 carton, and 20 cartons in 1 package |
| Net Weight | 900 g (1.98 lb) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Gross Weight | 1.1 kg (2.43 lb) |
| Ordering Information | |
| Type | Model Descriptions |

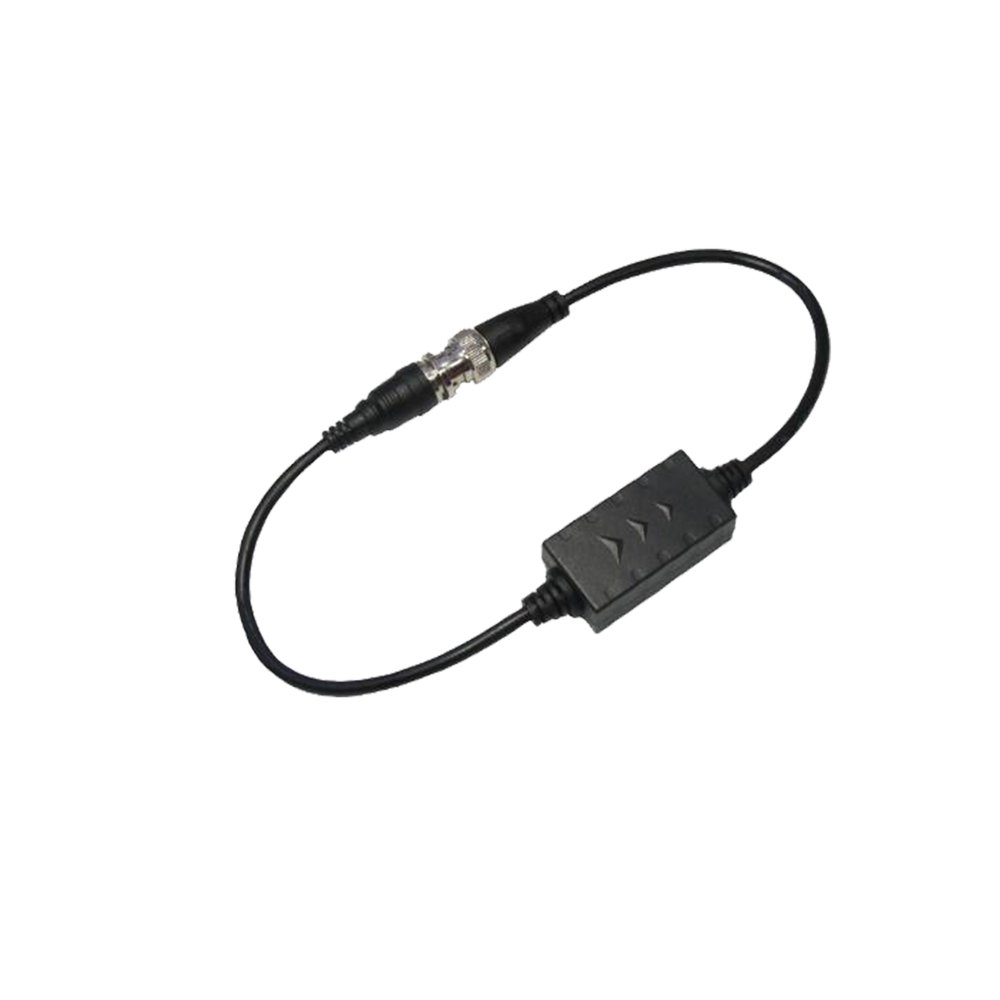

| Video Isolator | PFM791 HD Video Isolator (20pcs/box) |
| Dimensions (Mm[Inch]) | |
| 22.5 [0.89] | 16.0 [0.63] |
