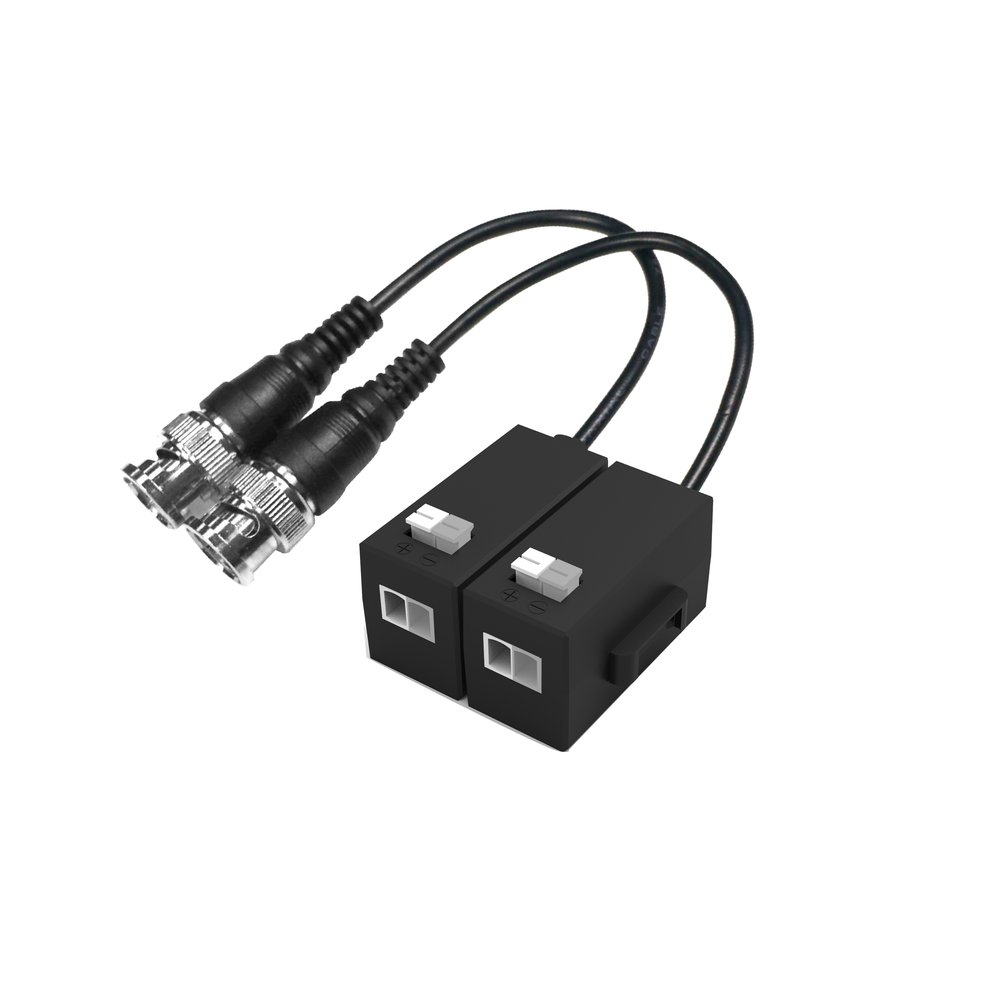

Confezione da 20 coppie balun video passivi HDCVI 1ch
Datasheet
Manuali
| Function | |
| Transmission | 1 channel |
| Channel | HDCVI |
| Transmission | 720p: max. 400 m (1312.34 ft) |
| Distance | 1080p: max. 250 m (820.21 ft) |
| Resolution | 720p/1080p |
| Video Format | HDCVI/AHD/TVI/CVBS |
| Anti- | >60 dB |
| Transmission | 1-ch HDCVI |
| Transmission | UTP CAT5E and CAT6 |
| Media | Coaxial cable: 75 Ω |
| Impedance | Twisted pair: 100 Ω |
| Port | |
| Video Port | Male BNC |
| Protection | |
| Protection | Level 3 1a Contact Discharge: Level 3 |
| Electrostatic | 1b Air Discharge: Level 3 |
| Discharge | Compliance Standard: IEC61000-4-2 |
| Surge Protection | Compliance Standard: IEC61000-4-5 |
| Structure | |
| Appearance | Black |
| Casing Material | ABS project material |
| Product | 185 mm × 20.5 mm × 19.5 mm (7.28" × 0.81" × 0.77") (L × W × H) |
| Packaging | 245 mm × 220 mm × 110 mm (9.65" × 8.66" × 4.33") (L × W × H) |
| Packaging | 20 pcs in 1 carton, and 10 cartons in 1 package |
| Net Weight | 960 g (2.12 lb) |
| Gross Weight | 1.1 kg (2.43 lb) |
| Ordering Information | |
| Type | Model Descriptions 1-Channel Passive HDCVI Balun |
| Video Balun | DH-PFM800-E (20pcs/box) |
| Dimensions (Mm[Inch]) | |
| 17.5 [0.69] | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
