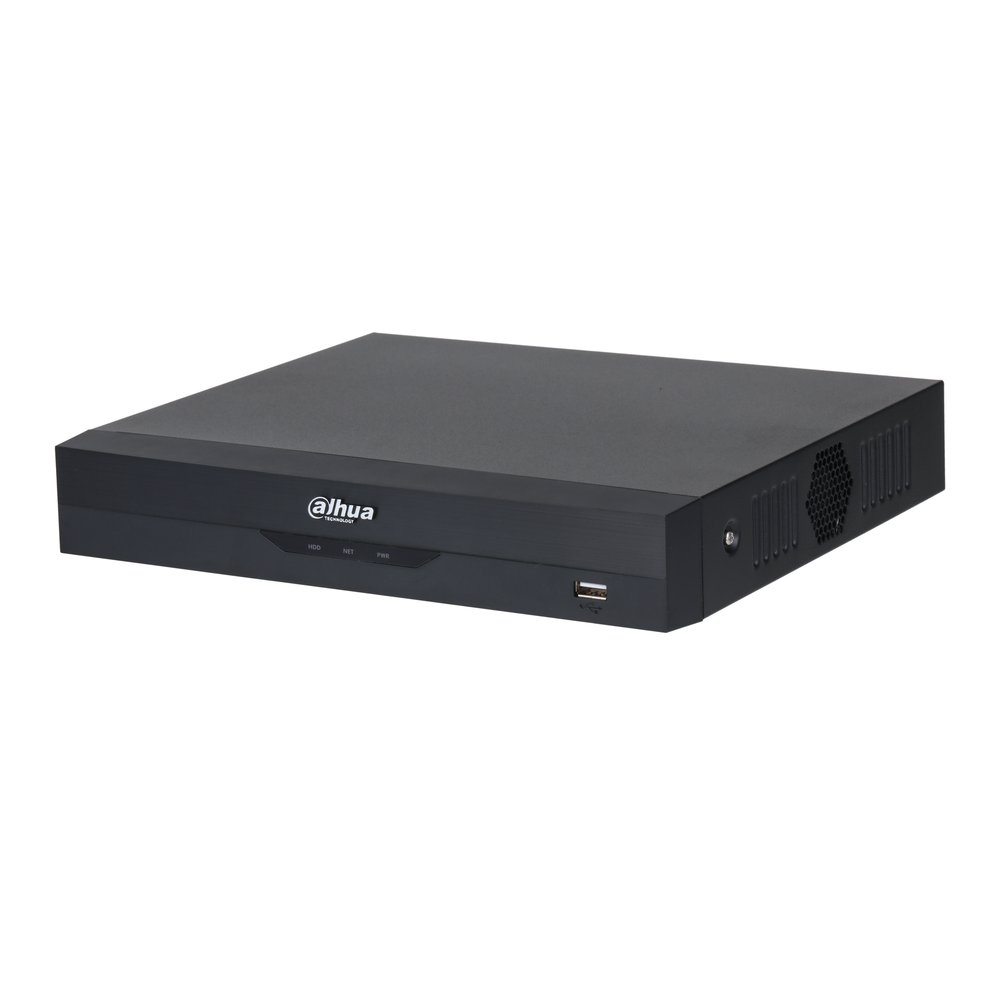

XVR AI WizSense 8 canali HDCVI/CVBS/TVI/AHD a 2 MP o 10 canali IP a 6 MP, max. banda 32 Mbps, AI coding, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1/8 ingressi RCA/BNC e 1 uscita RCA audio bidirezionale, predisposto per montaggio di 1 disco SATA (fino a 16 TB cad.), 1 porta RS485, 1 porta RJ-45 10/100 Mbps, 2 porte USB 2.0, 8 canali analog SMD Plus, Compact 1U, alimentazione 12 Vdc <7 W senza Hard Disk
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Smd | |
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 10 channels |
| Irregular Black Block Masking | |
| Irregular Black Block | 1 channel |
| Audio And Video | |
| Analog Camera Input | detect 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. |
| Camera Input | 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. Up to 10 channels of IPC access 2 IP channel by default + 8 channels (analog channels |
| IP Camera Input | are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps Main stream: the 1st channel 1080N/720p@(1 fps– 25/30 fps), others 1080N/720p@(1 fps–15 fps); |
| Encoding Capacity | 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–4096 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps 1 HDMI, 1 VGA |
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 When IP extension mode not enabled: 1/4/8/9 |
| Multi-screen Display | When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); |
| Interoperability | CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection |
| Recording Playback | 1/4/9 |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Alarm | |
| General Alarm | external alarm; network alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | SMD Plus Record; snapshot (panoramic); IPC external alarm |
| Alarm Linkage | output; audio; buzzer; log; preset; email |
| Ports | |
| Audio Input | 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA Coaxial two-way talk: 8-channel BNC |
| Two-way Talk | Local and network user two-way talk: Shares the same audio input with the first channel 1 SATA port, up to 16 TB. This limit varies depending on |
| Disk Interface | the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <7 W (without HDD) |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 1.49 kg (3.28 lb) 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × |
| Product Dimensions | 1.87") (W × D × H) 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × |
| Packaging Dimensions | 11.30") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN |
| Ordering Information | |
| Type | Model Description 8CH Penta-brid 1080N/ |
| DIGITAL VIDEO | 720P Compact 1U 1HDD DH-XVR4108HS-I/T |
| RECORDER | WizSense Digital Video Recorder 802.11AX 300M WIRELESS DH-NC300 ADAPTER |
| Accessories (Optional) | 802.11AC 650M WIRELESS DH-NC650 ADAPTER |
| Accessories | |
| DH-NC300 | DH-NC650 |
| 802.11AX 300M | 802.11AC 650M |
| WIRELESS ADAPTER | WIRELESS ADAPTER |
