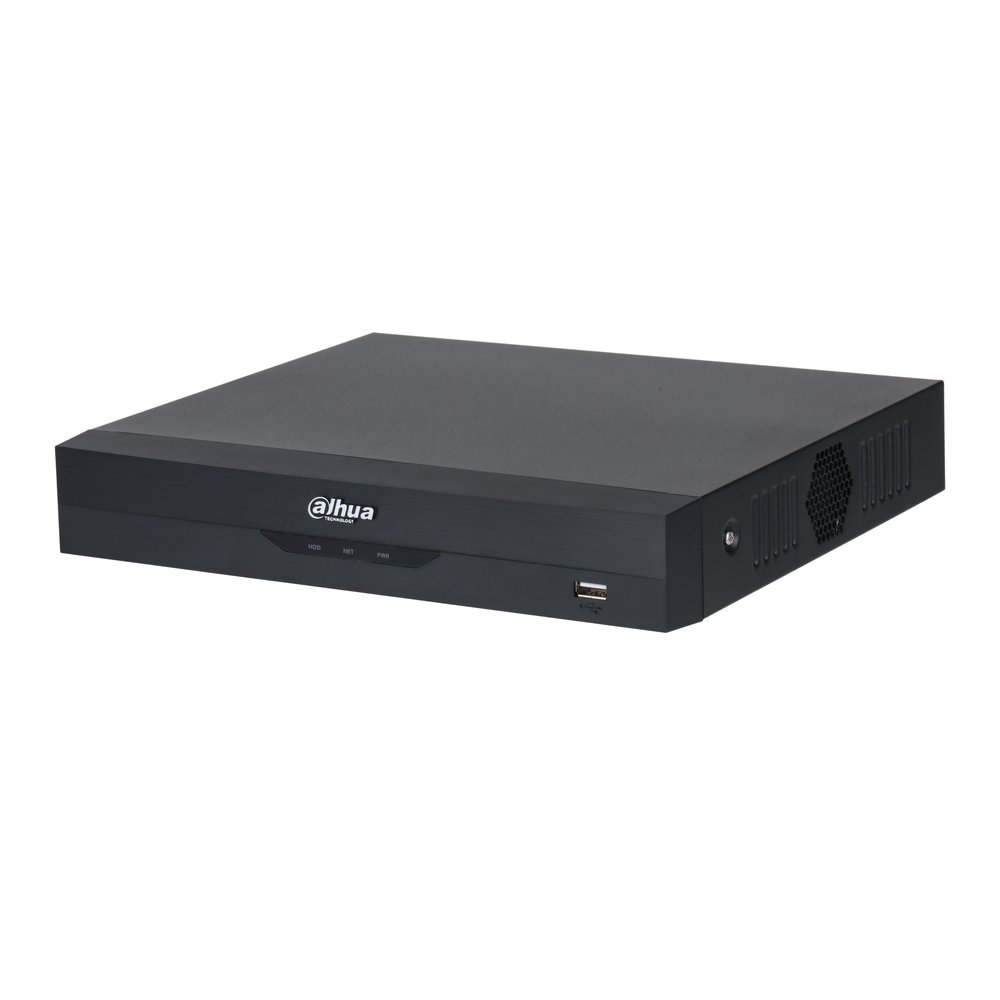

XVR AI WizSense 4 canali HDCVI/CVBS/TVI/AHD a 5 MP o 6 canali IP a 6 MP, max. banda 32 Mbps, AI coding, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1/4 ingressi RCA/BNC e 1 uscita RCA audio bidirezionale, predisposto per il montaggio di 1 disco SATA (fino a 16 TB), 1 porta RS485, 1 porta RJ-45 10/100 Mbps, 2 porte USB 2.0, 4 canali analog protezione perimetrale, 2 canali analog face detection/recognition, 4 canali analog SMD Plus, Compact 1U, alimentazione 12 Vdc <5 W senza HDD
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Acupick | |
| AI by Recorder (1080P) | 2 channels |
| Perimeter Protection | |
| by Recorder (Number of | 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Performance of AI by | 2 channels (up to 8 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Performance of AI by | 2 channels |
| Smd | |
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 6 channels |
| Ai Video Quality Analytics | |
| AI Video Quality Analytics | cast, defocus, overexposure, contrast levels, black and |
| by Recorder | white. |
| Scene Changing | |
| Scene Changing by | 1 channel |
| Audio And Video | |
| Analog Camera Input | detect 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 × 1944)@20 fps; 5 MP(2960 × |
| Camera Input | 1665)@20/25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. Up to 6 channels of IPC access |
| IP Camera Input | 2 IP channels by default + 4 channels (analog channels are converted to IP channels) |
| IP Camera Input | *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. ： Encode Enhancement disabled Main stream: Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-2 4M-N/1080p@(1 fps–30 fps), others 4M- N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); ： Encode Enhancement enabled |
| Encoding Capacity | Main stream: 4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps) 4-ch 4M-N/1080p@(1 fps–25 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps 1 HDMI, 1 VGA |
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 When IP extension mode not enabled: 1/4 |
| Multi-screen Display | When IP extension mode enabled: 1/4/6 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent |
| Recording Playback | 1/4 |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Alarm | |
| General Alarm | external alarm; network alarm; PIR alarm |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline Face detection; face recognition; perimeter protection; |
| Intelligent Alarm | SMD Plus Record; snapshot (panoramic); IPC external alarm |
| Alarm Linkage | output; audio; buzzer; log; preset; email |
| Ports | |
| Audio Input | 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA Coaxial two-way talk: 4-channel BNC |
| Two-way Talk | Local and network user two-way talk: Shares the same audio input with the first channel 1 SATA port, up to 16 TB. This limit varies depending on |
| Disk Interface | the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <5 W (without HDD) |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross Weight | 1.41kg (3.11 lb) 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × |
| Product Dimensions | 1.87") (W × D × H) 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × |
| Packaging Dimensions | 11.30") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN |
| Ordering Information | |
| Type | Model Description 4CH Penta-brid 5MP Value/ |
| DIGITAL VIDEO | 1080P Compact 1U 1HDD DH-XVR5104HS-I3/T |
| RECORDER | WizSense Digital Video Recorder 802.11AC 650M WIRELESS |
| Accessories (Optional) | DH-NC650 ADAPTER |
| Type | Model Description 802.11AX 300M WIRELESS |
| Accessories (Optional) | DH-NC300 ADAPTER |
| Accessories | |
| Optional: | DH-NC650 |
| 802.11AX 300M | 802.11AC 650M |
| WIRELESS ADAPTER | WIRELESS ADAPTER |
